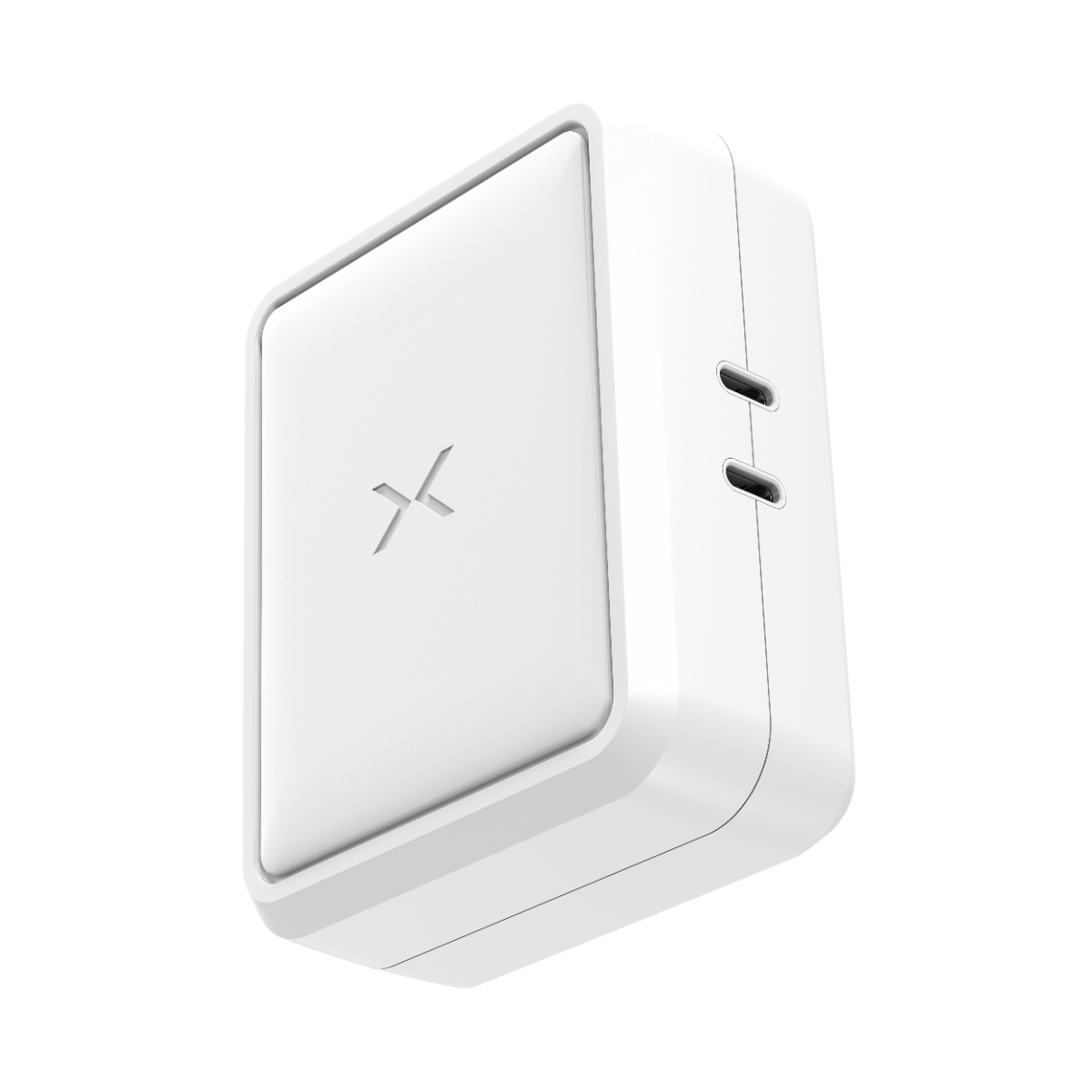

X140W

QUICK START GUIDE

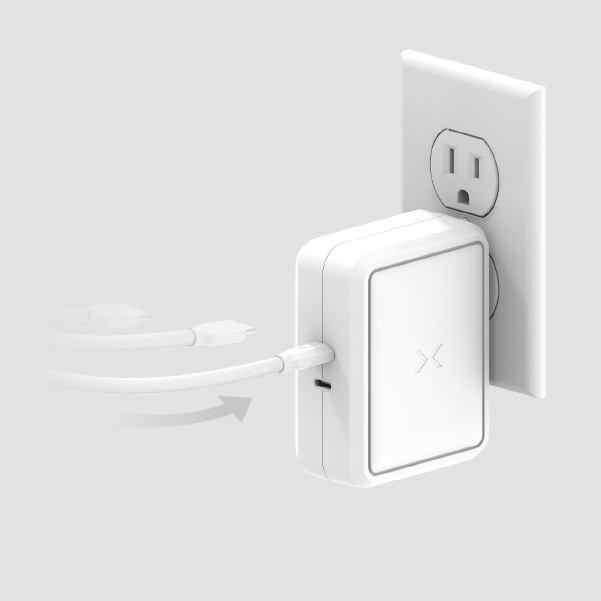

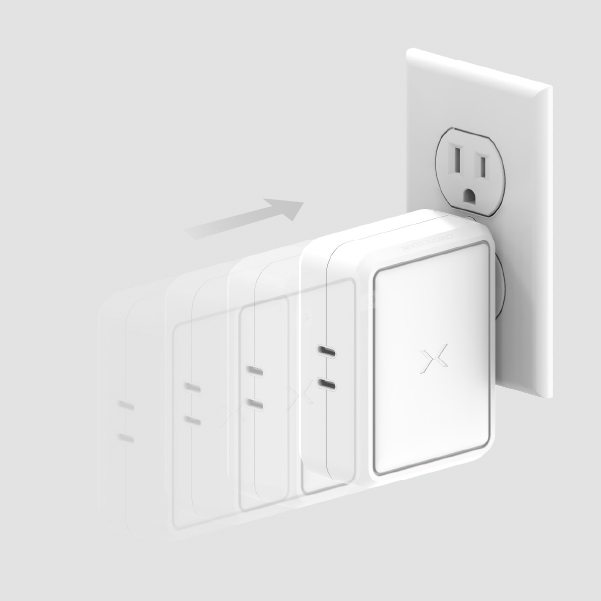

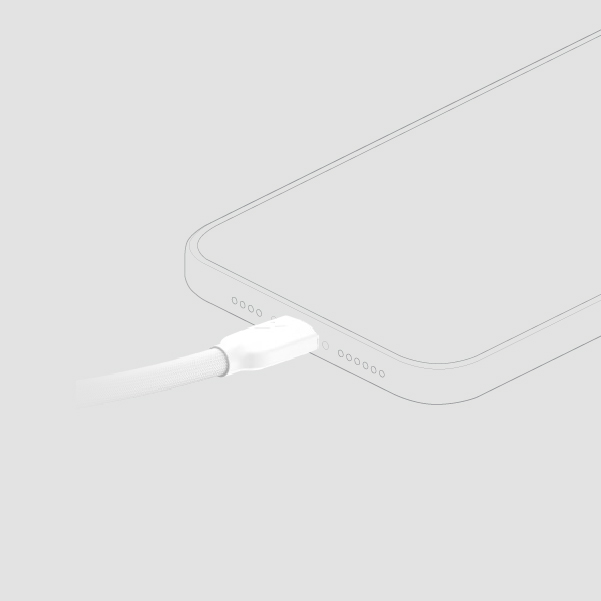

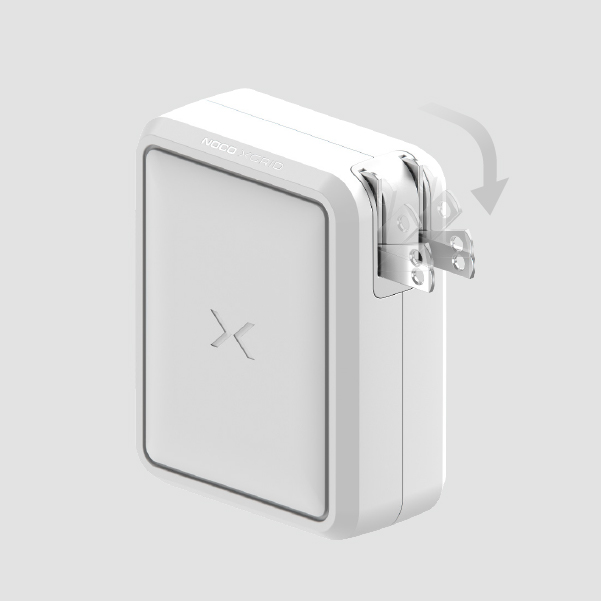

Connecting from wall outlet to device.

FAQ

XGrid Chargers

Charging

Which XGrid Charger is right for me?

Choosing the right charger depends on how many devices you charge and how much power they require. Here's a quick breakdown to help guide your decision:

XGrid Overview:

Charger Model	Ports	Max Power Output	Best For
30W	1 USB-C	30W	Phones, wireless earbuds, and small tablets
65W	2 USB-C	65W (shared)	Phones, tablets, MacBook Air, casual dual-device charging
100W	2 USB-C	100W (shared)	Laptops, phones, MacBook Pro 13", multitasking setups
140W	2 USB-C	140W (shared)	High-performance laptops, MacBook Pro 16", USB-C workstations

Common Device Power Needs:

Device	Typical Max Wattage
iPhone / Android phone	20W–30W
iPad / tablets	30W–45W
MacBook Air	30W–45W
MacBook Pro 13"	60W
MacBook Pro 14"/16"	96W–140W
Windows laptops (USB-C)	45W–100W
Nintendo Switch	18W

Will it damage my device if I use it with something that doesn’t need 65W or 100W?

Not at all. The charger intelligently detects your device's needs and delivers only the power required. So whether you’re charging earbuds or a laptop, your device gets safe, optimized charging every time.

Is this charger compatible with my phone or tablet?

Yes. XGrid supports multiple fast-charging standards like PD (Power Delivery), PPS (Programmable Power Supply), and QC (Quick Charge)—which cover most major devices, including:

iPhones (fast charging with USB-C to Lightning cable)
Samsung Galaxy phones (PPS and PD supported)
Google Pixel, iPads, and more
If your device uses USB-C or supports PD, you're covered.

Are the ports different? Does it matter which one I plug a device into?

Both ports are identical, and each is capable of automatically adjusting power delivery. Depending on what devices are connected, the charger will adjust power output to deliver the most efficient charge.

What devices can I charge at the same time?

You can charge any two usb-c devices simultaneously, such as a laptop and a smartphone. The charger adjusts power delivery depending on the devices connected to make sure both get efficient charging.

Troubleshooting

Where can I obtain the user guide for XGrid Chargers?

X30	Safety and Warranty Information	Quick Start Guide
X65	Safety and Warranty Information	Quick Start Guide
X100	Safety and Warranty Information	Quick Start Guide
X140	Safety and Warranty Information	Quick Start Guide

My XGrid charger is getting hot, is that normal?

XGrid chargers can get up to 32°C or 104°F (0°C to 40°C) while charging. This would be considered normal operating conditions.

Specs & Features

What is USB-C, and how is it different from other charging ports?

USB-C is the latest standard for charging and data transfer. Unlike older USB types, it’s reversible, meaning you can plug it in either way, and it supports faster charging and data speeds. Many modern devices—including smartphones, tablets, laptops, and more—now use USB-C for their versatility and performance.

What is GaN technology and why does it matter?

GaN (Gallium Nitride) is a next-gen material that replaces traditional silicon in chargers. It allows for a smaller, lighter, and more efficient charger that stays cooler even when delivering high power. That’s why this charger is compact enough for travel but powerful enough for your daily needs.

How much does an XGrid Charger weigh?

X30	0.15 lbs (0.07 kg)
X65	0.31 lbs (0.14 kg)
X100	0.58 lbs (0.26 kg)
X140	0.73 lbs (0.33 kg)

Warranty & Support

How long is the warranty on XGrid Chargers?

The warranty is 3 years from the proof of purchase or the manufacture date and is based on your serial number.

View Warranty

Where can I find the serial number on an XGrid Charger?

All NOCO X-Grid USB-C Chargers are marked with a unique serial identification number, usually found on the side or edge of the unit. Click the link below to find the serial number location on each model.

Locating the Serial Number on X-Grid Chargers

X140W

3 Year Warranty.

All NOCO XGrid USB-C Chargers come with a limited 3 year warranty. Register your product after purchasing to qualify for the applicable warranty.

VIEW WARRANTY

X140W

COMPATIBLE PRODUCTS.

Pair your XGrid Charger with an XGrid Ultraflex Braided USB-C Cable.
