BT24 Support
June 21, 2024
BT24S
SUPPORT.

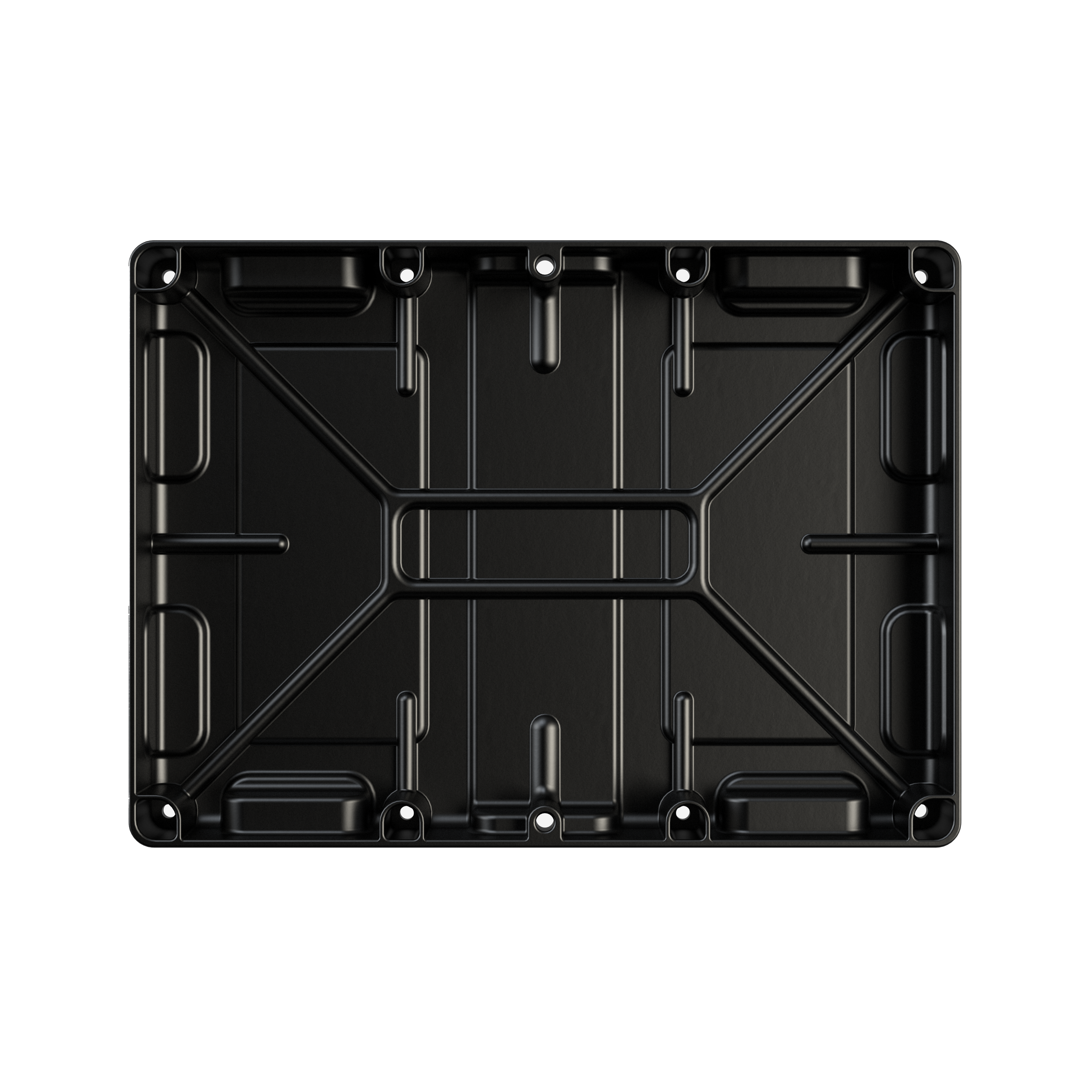

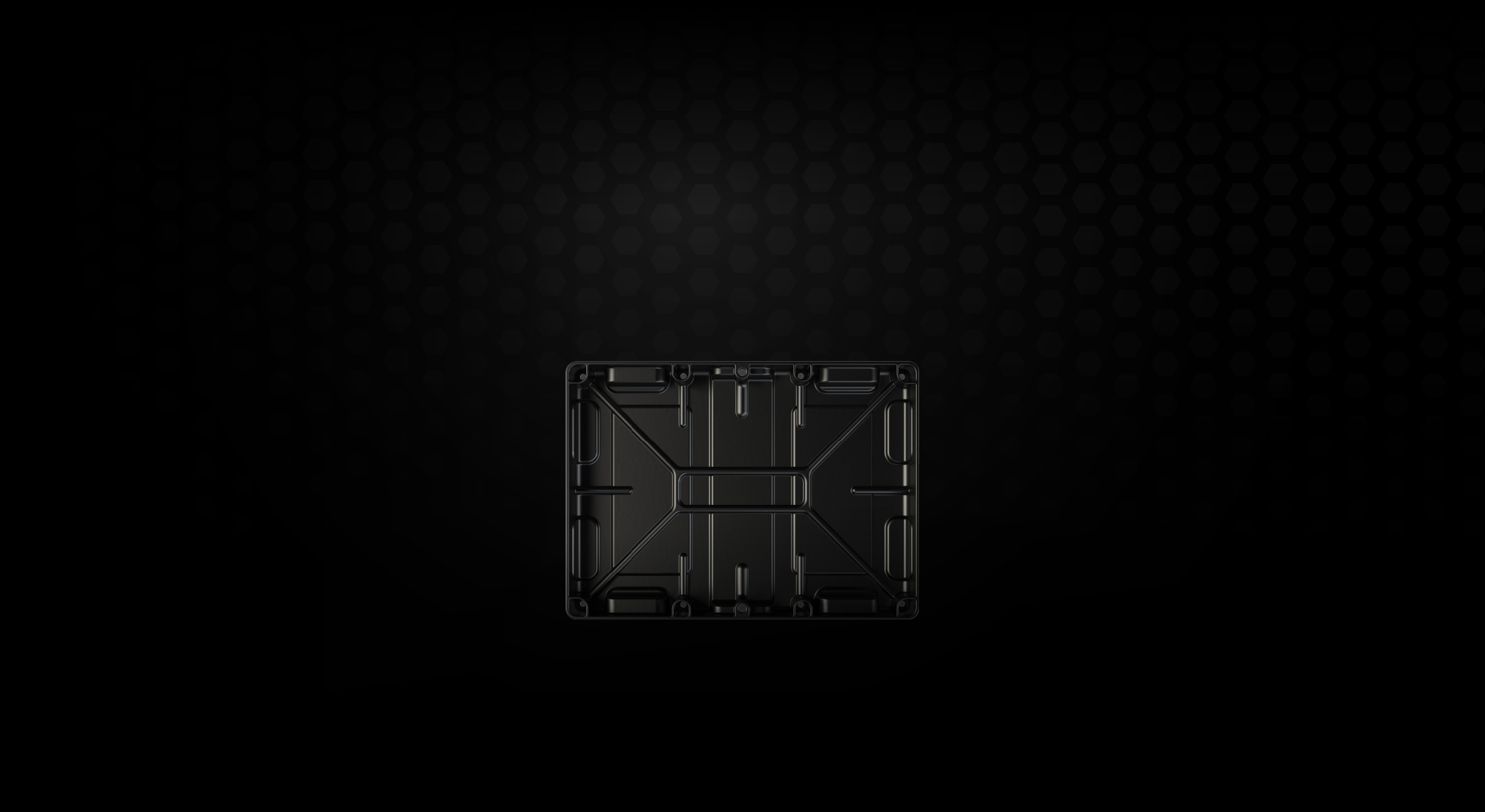

DATASHEETGroup 24 Battery Tray

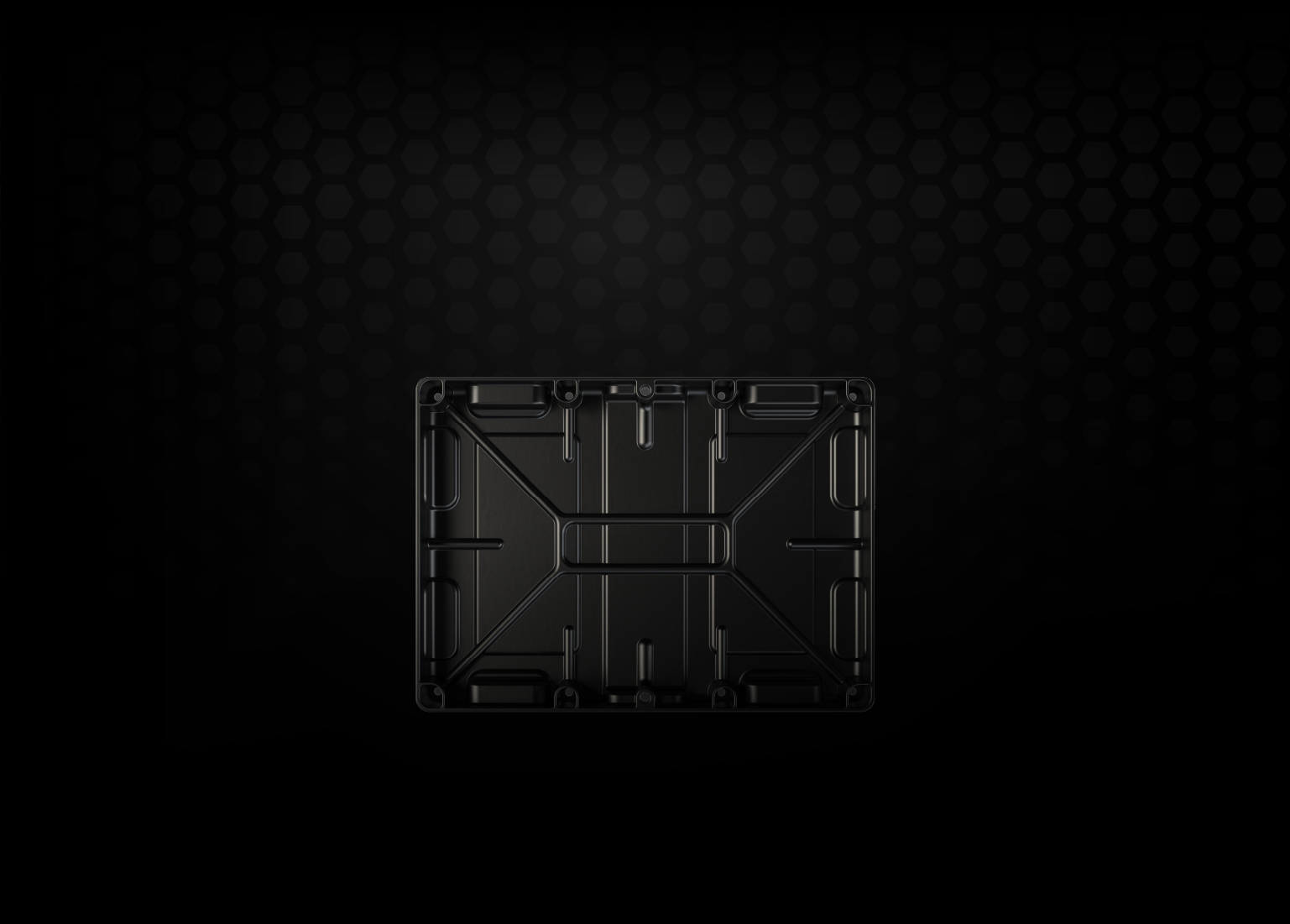

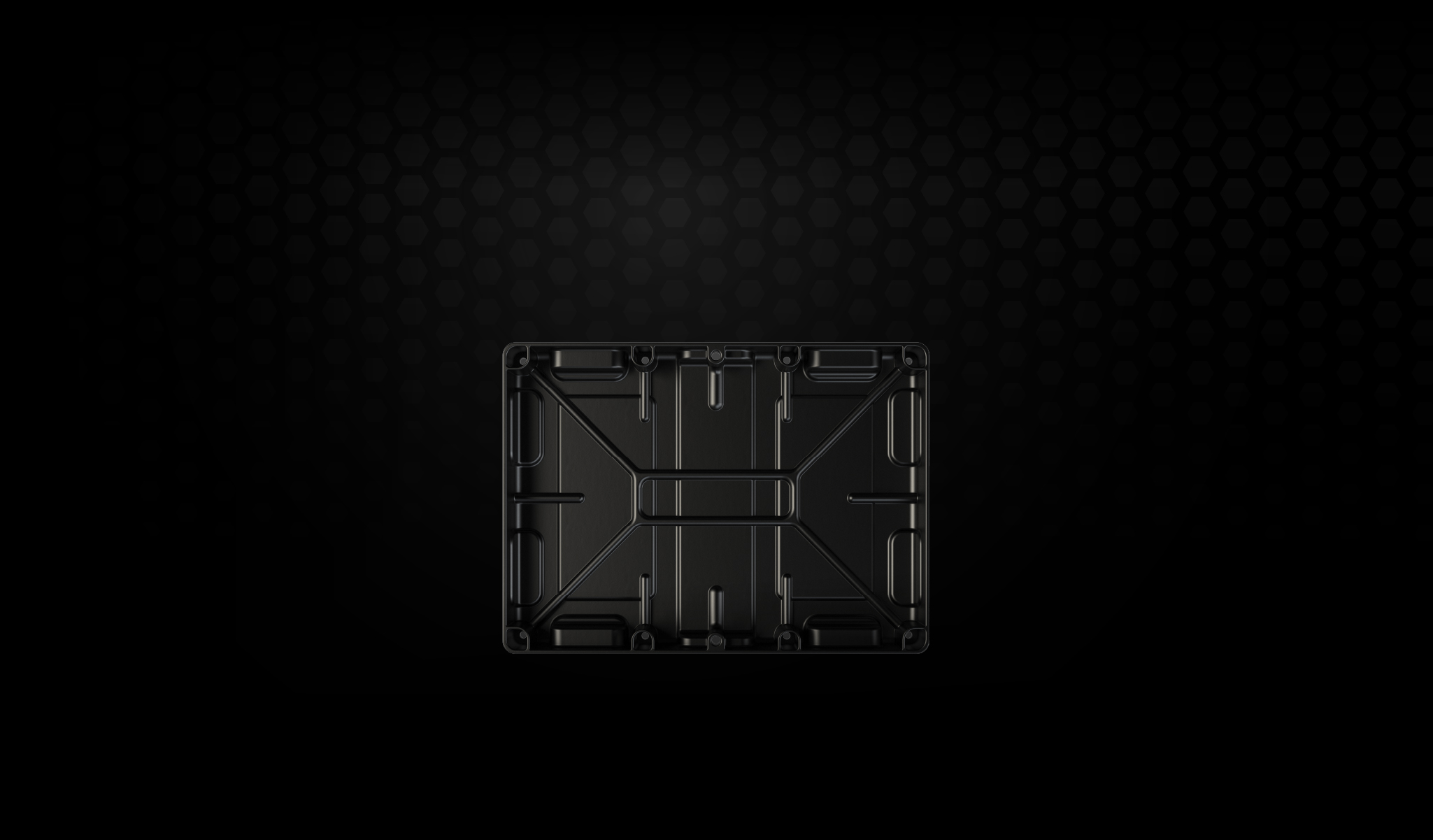

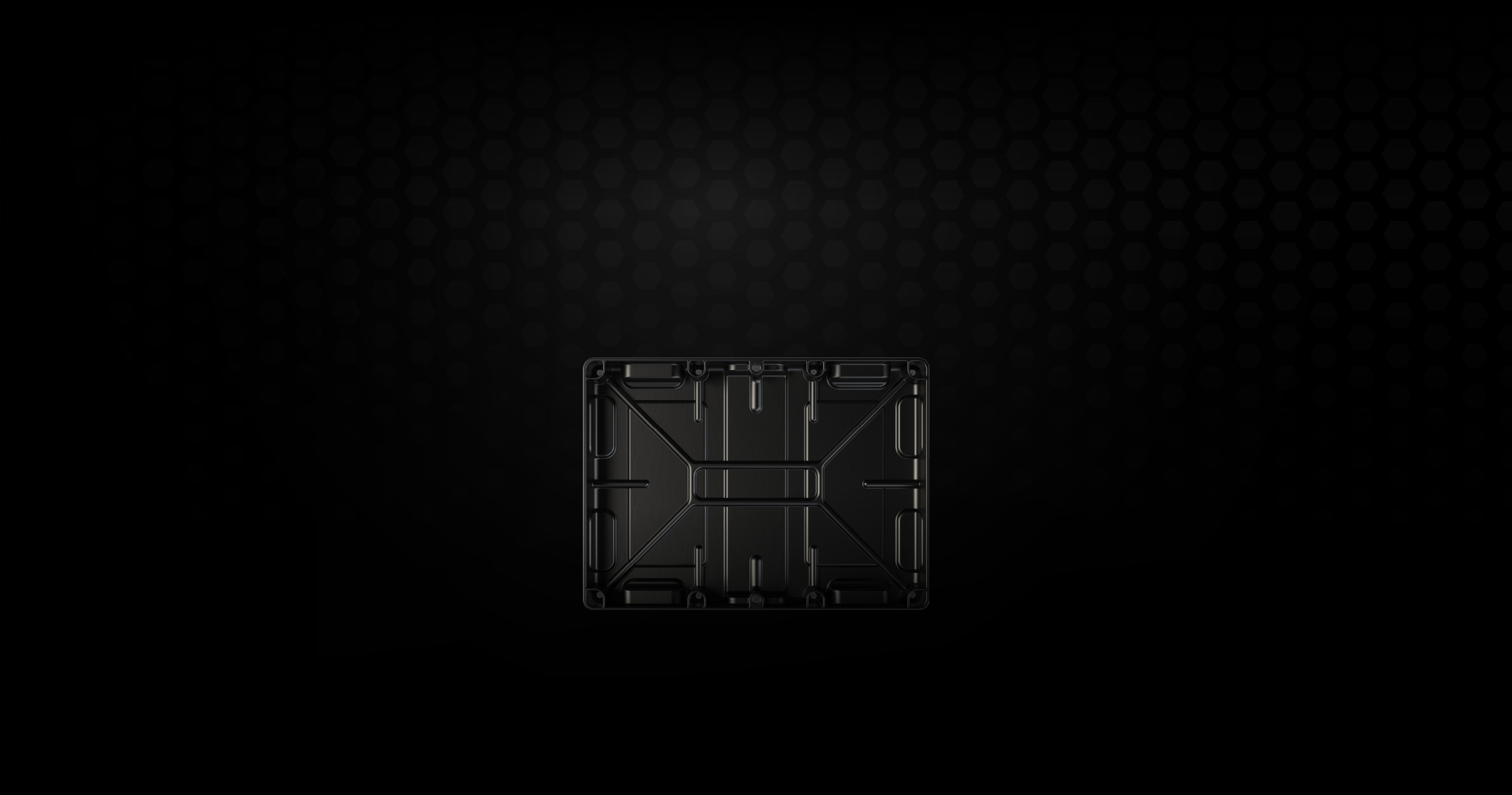

The BT24S Battery Tray is a battery storage solution for Group 24 Lawn and Garden, Utility, and Tractor batteries. Perfect for installation in a car, truck, tractor, utility vehicle, and more.
[object Object]
Compatible with Group 24.
Designed for Group 24 Batteries.

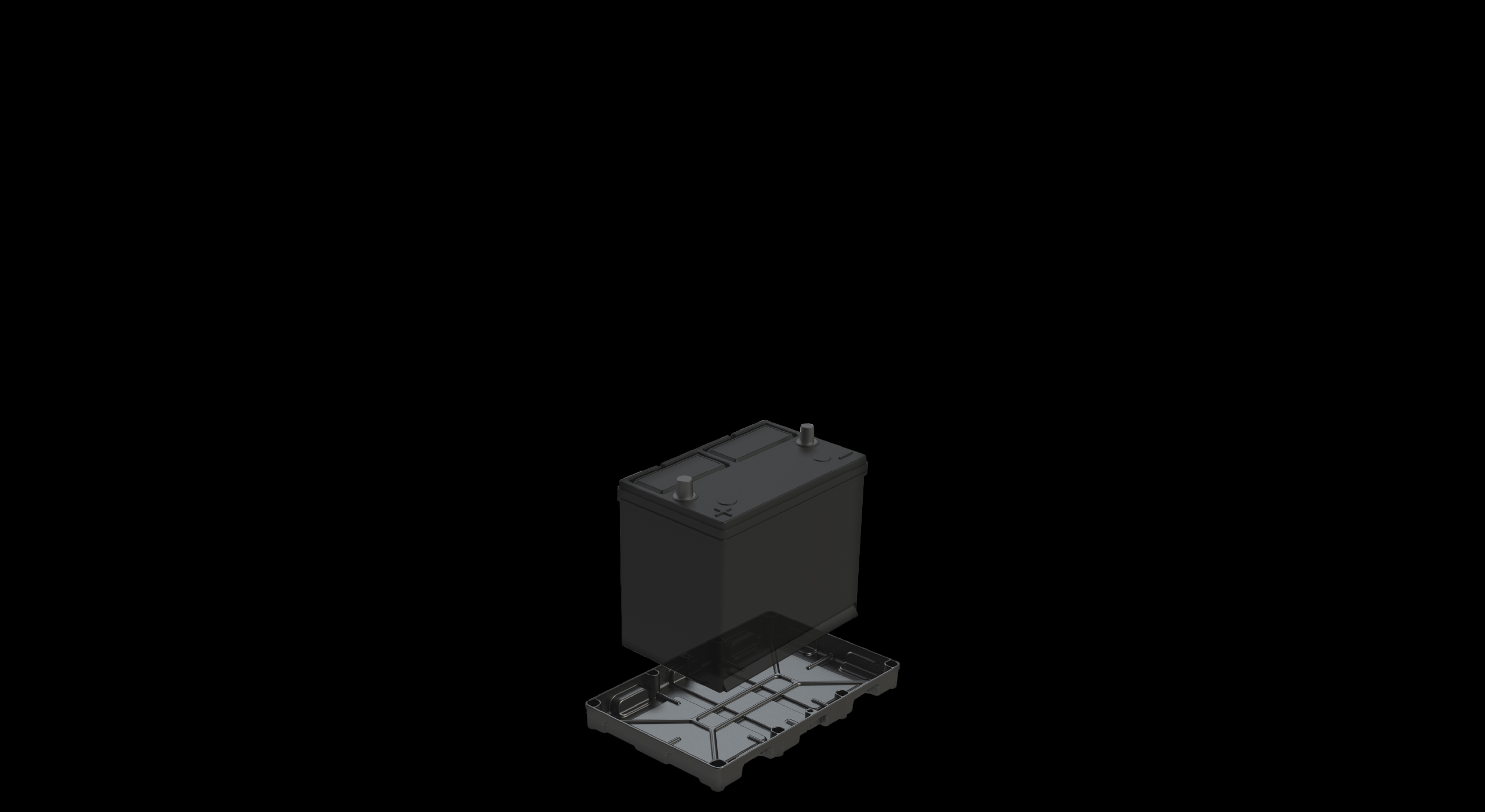

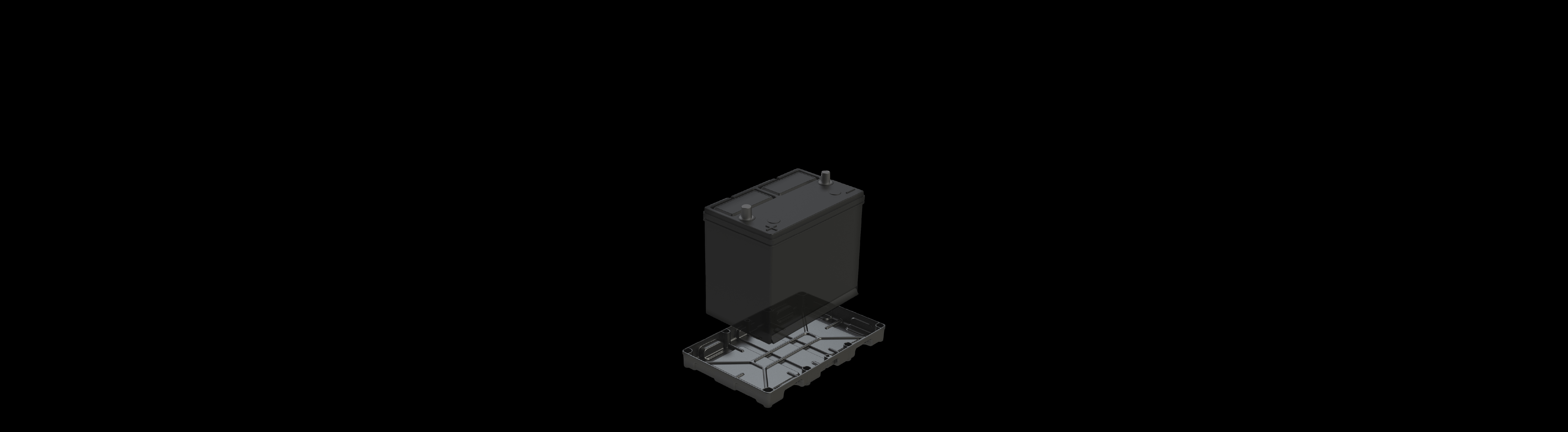

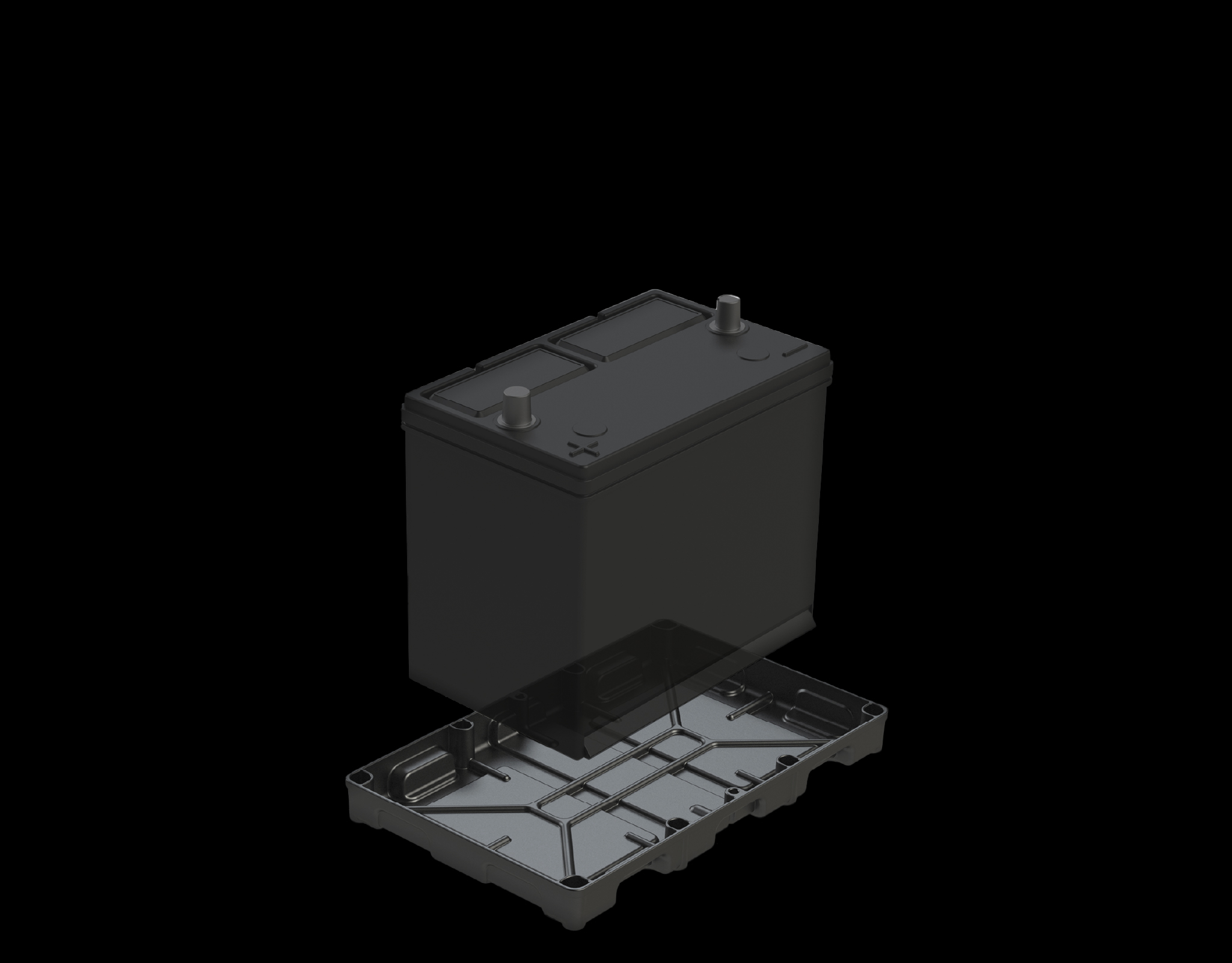

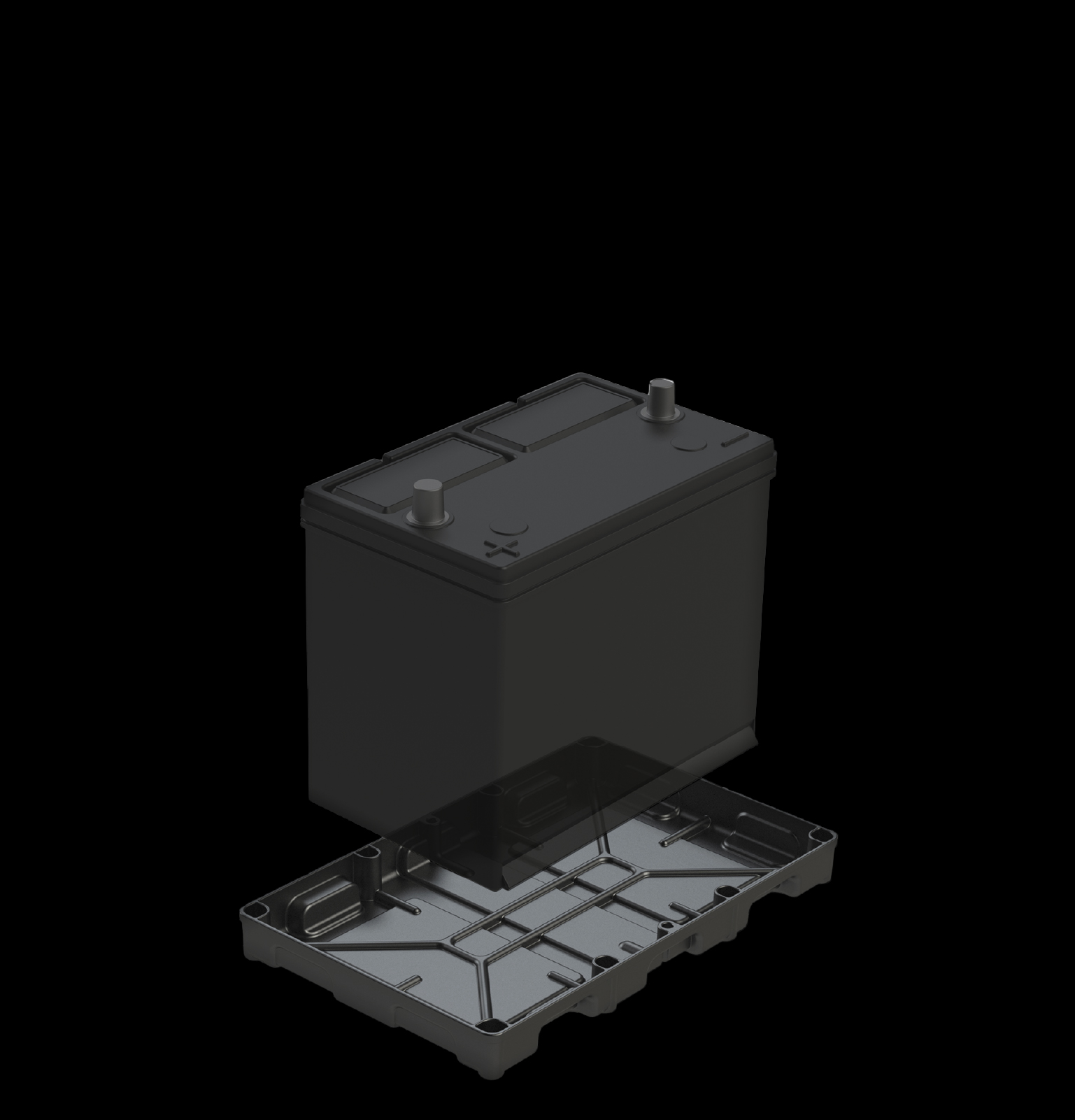

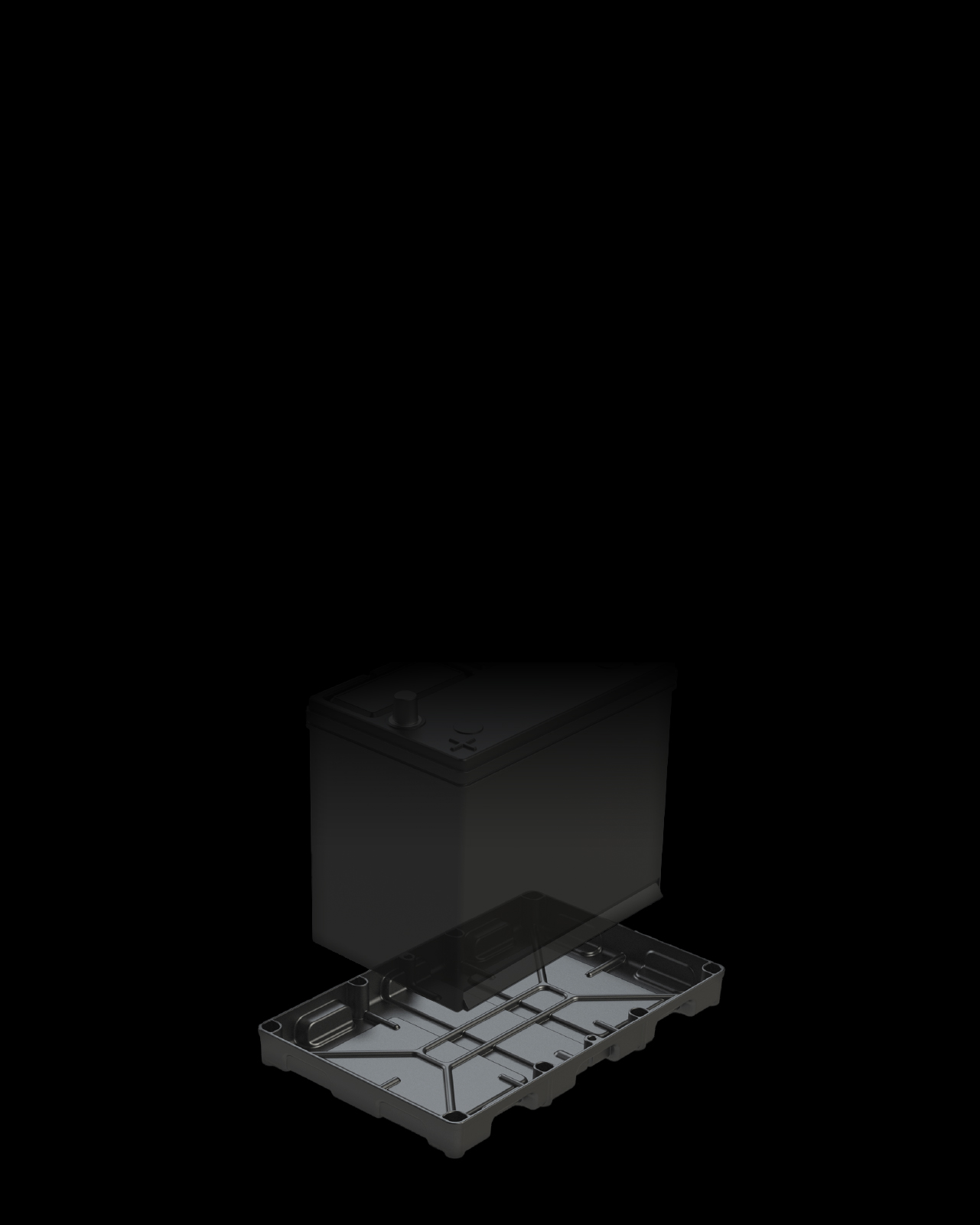

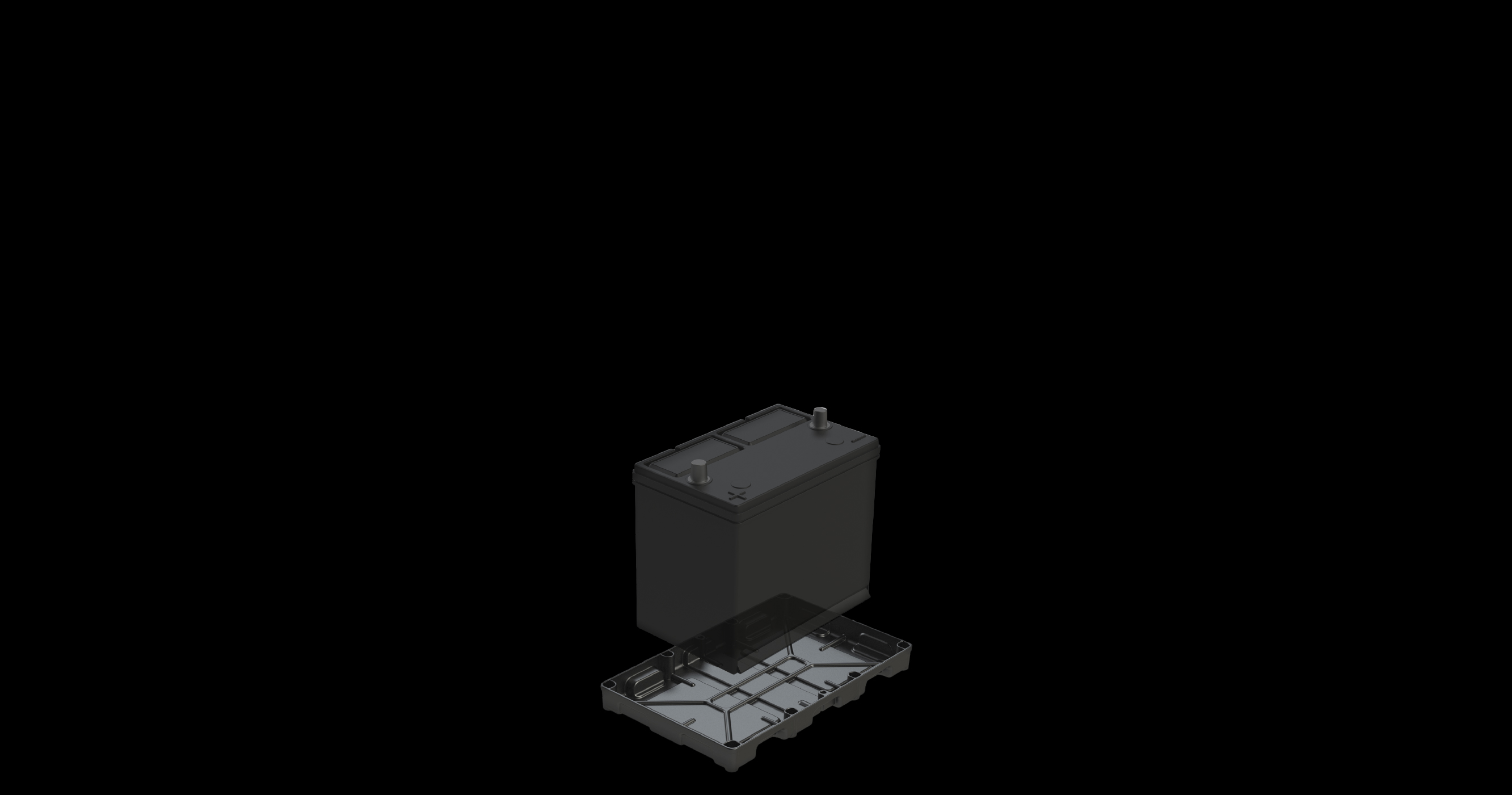

Extreme-Duty Battery Tray
This rugged battery tray maintains its impact properties down to minus 20°F, as well as, resistant to UV, oil, gas and other contaminants.

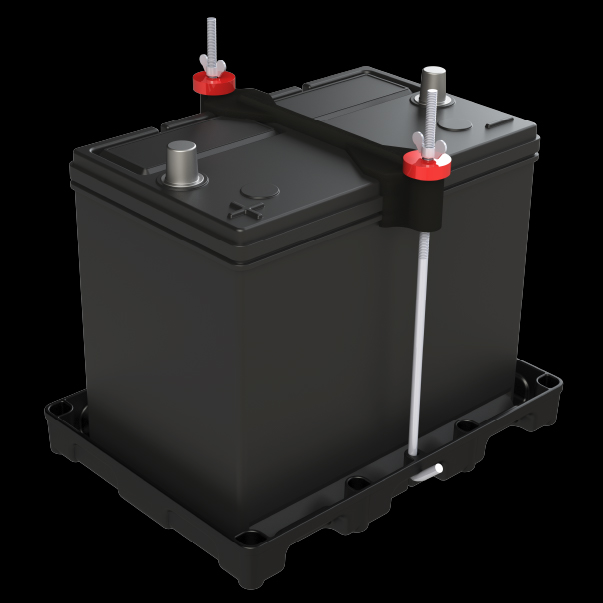

Mounting Options

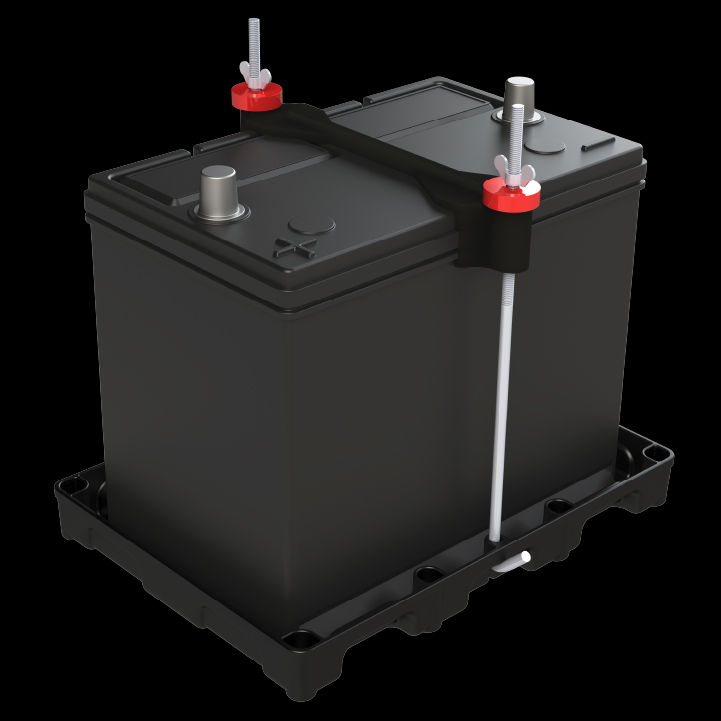

J-Bolt Mounting
Compatible with most universal J-Bolts for securely fastened battery mounting.

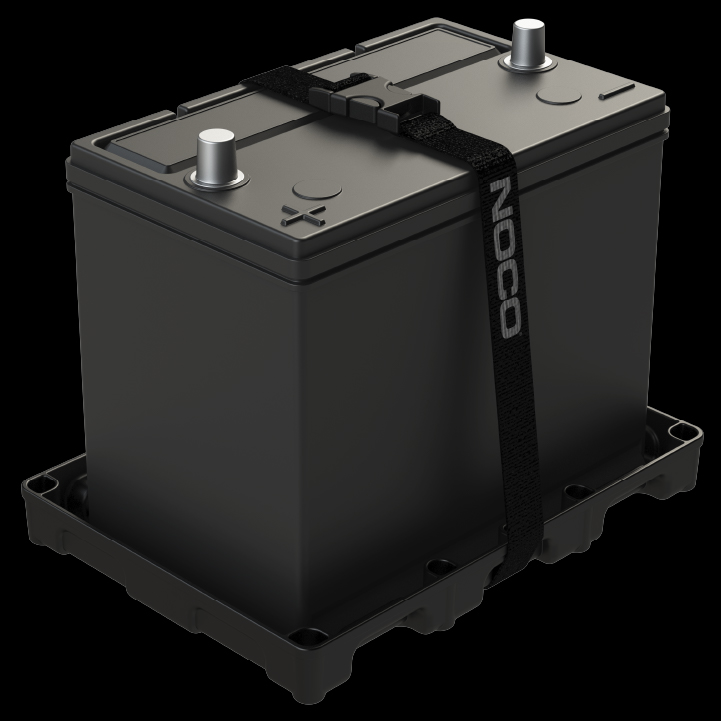

Battery Hold-Down Strap
Military-grade battery hold-down strap; 42 inches water resistant nylon webbing and heavy-duty buckle withstands a tensile load of over 120 kilograms force.
Ultimate Protection

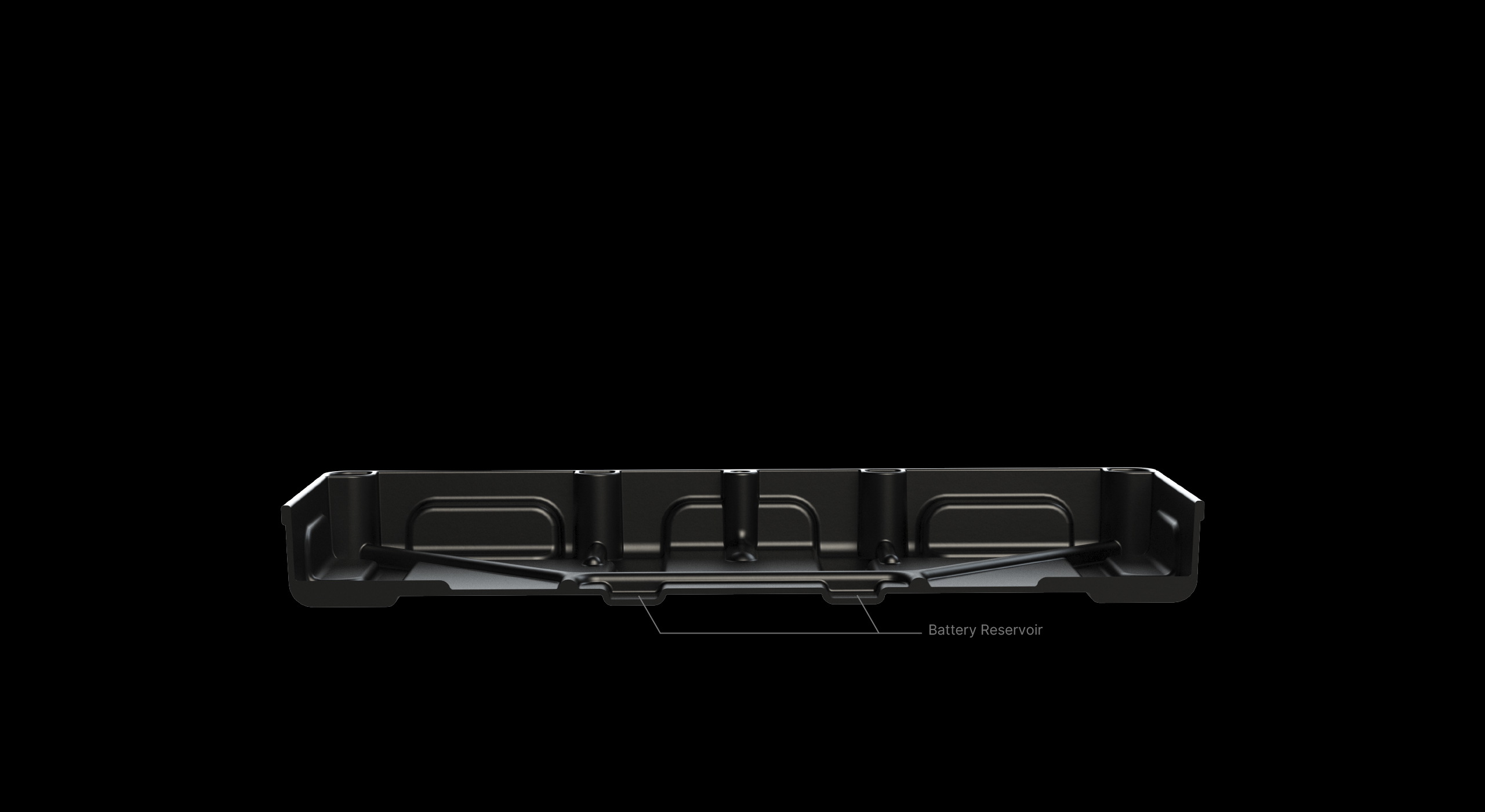

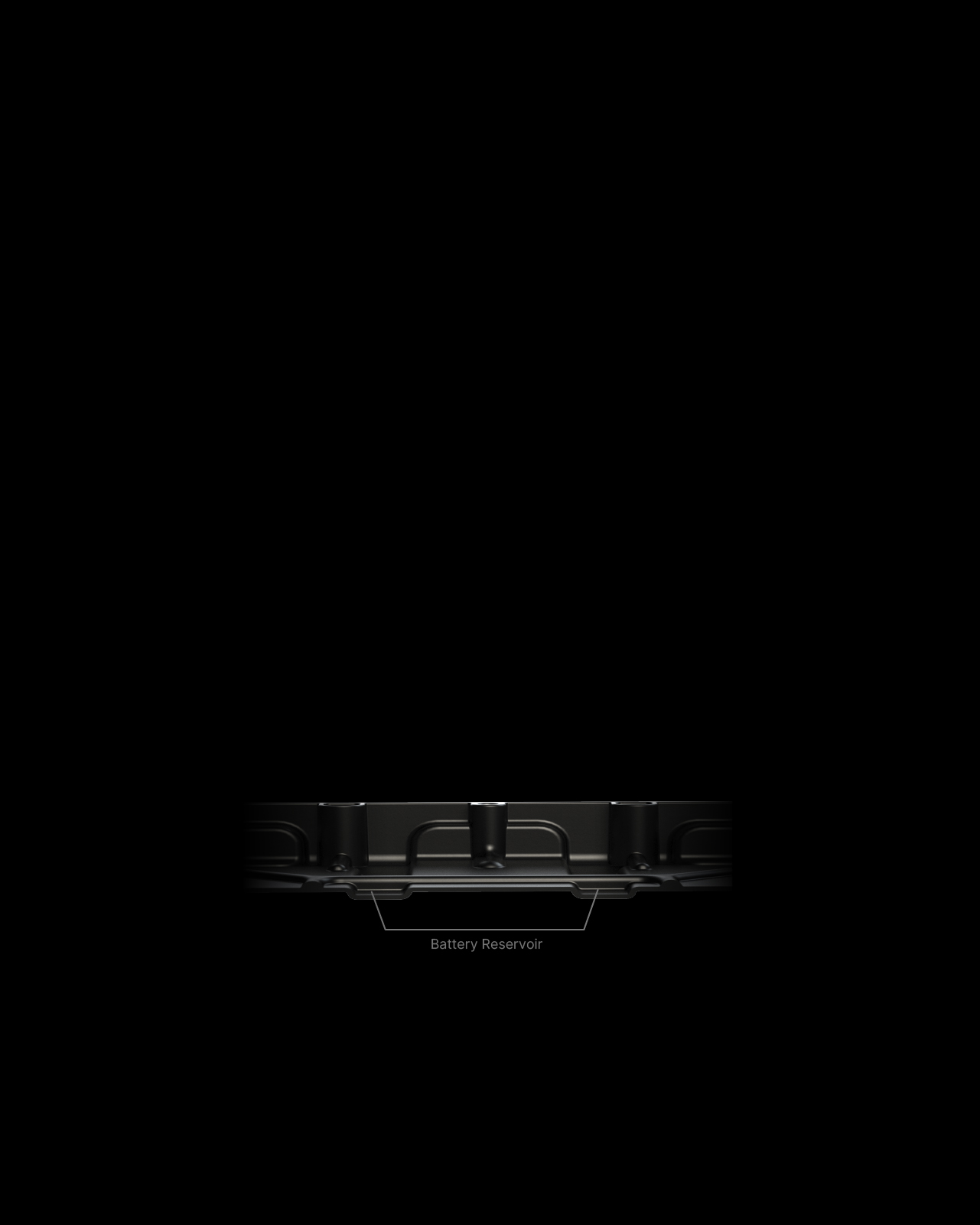

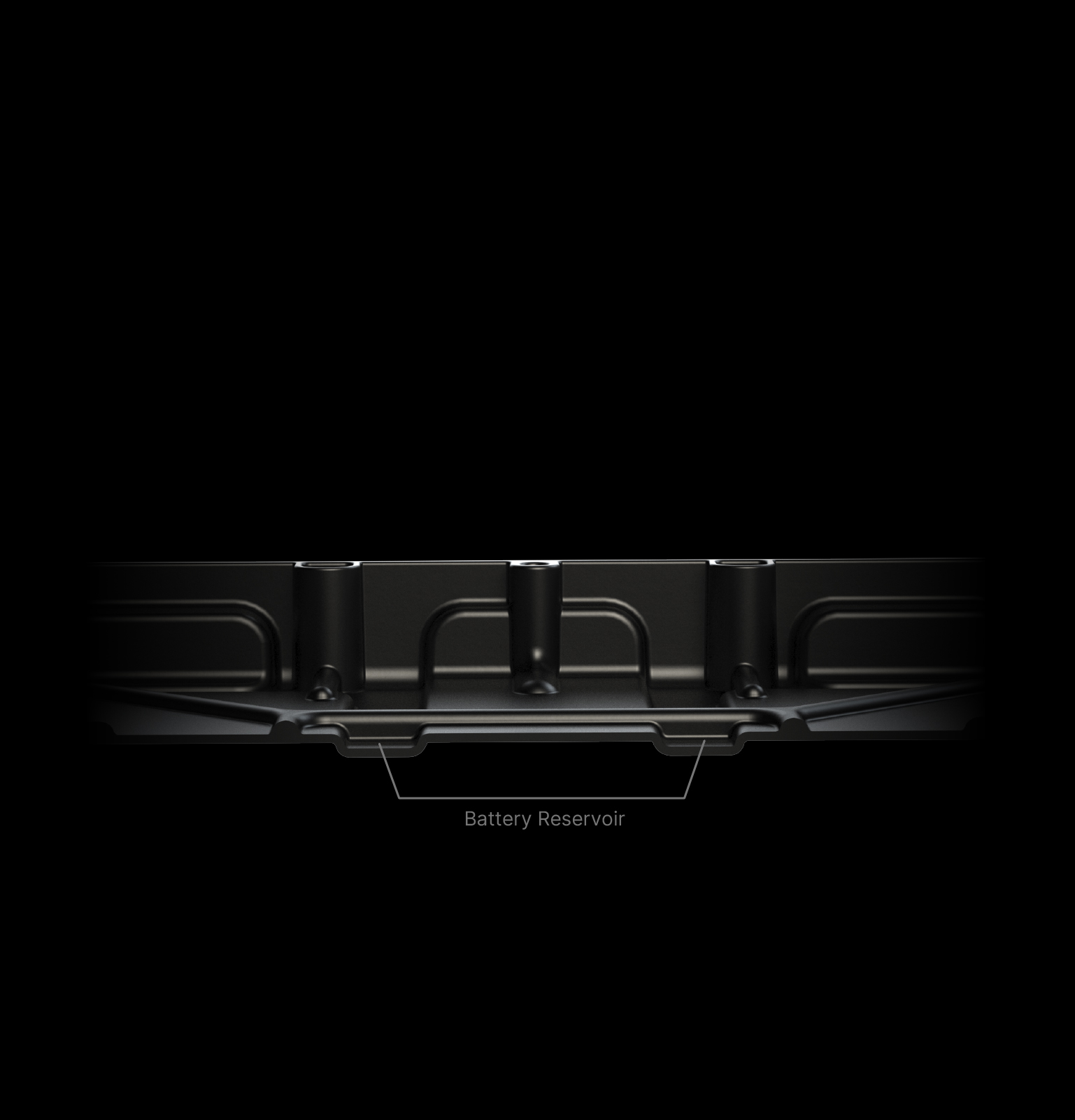

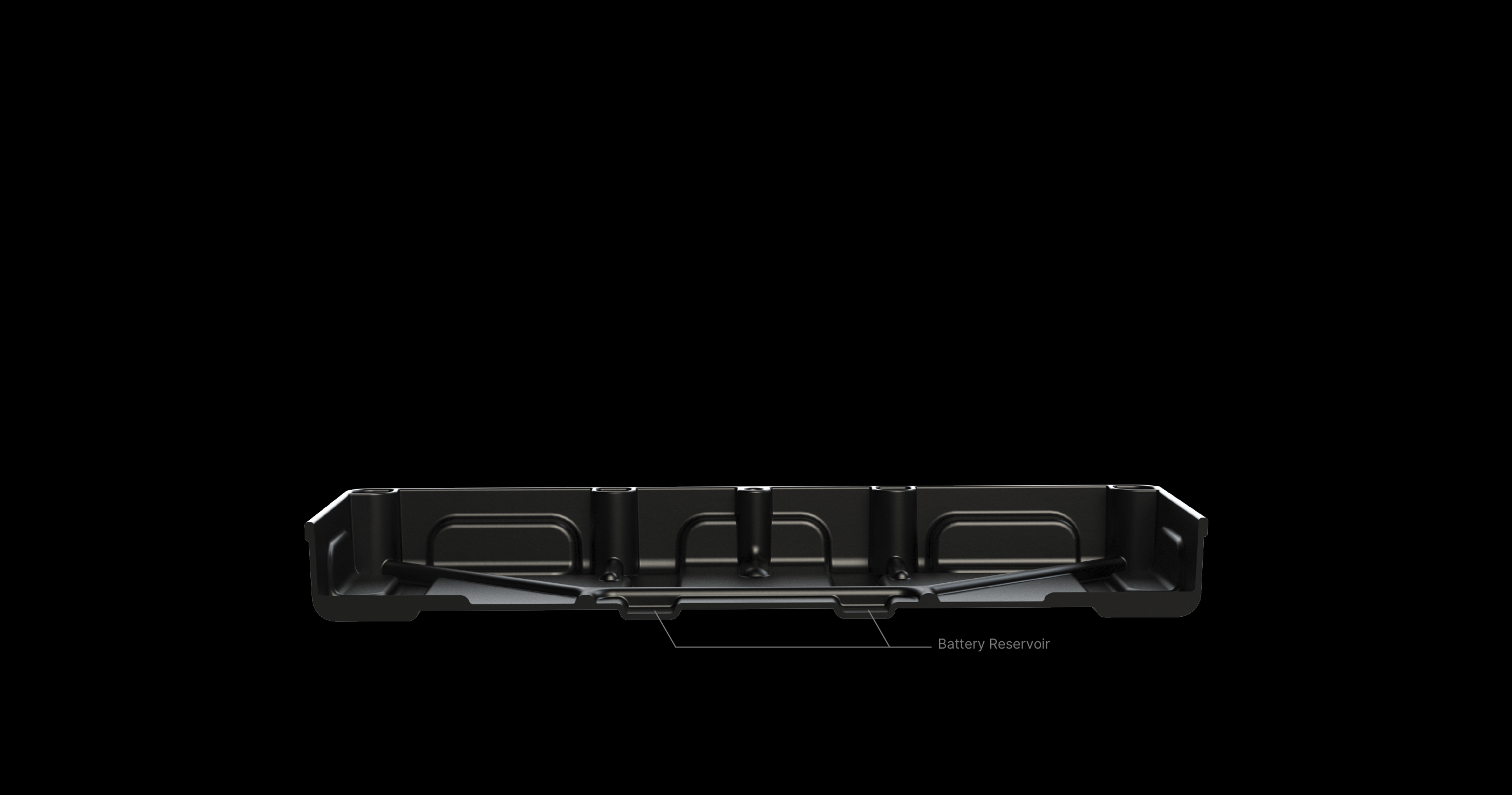

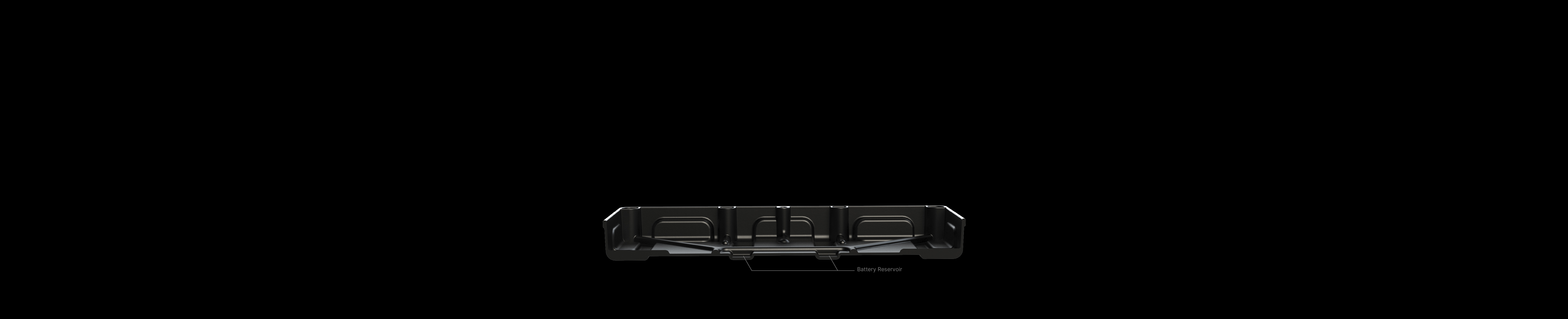

Functional Design.
Designed for full-flow ventilation and collection of spilled electrolytes, its reservoir is acid-resistant for safely capturing spilled battery acid.
Coast Guard Regulations
The US Coast Guard maintains strict regulations on the storage of batteries. Batteries on-board boats must not move more than one inch in any direction surrounding the battery and only one inch in the vertical direction.
Battery Size Specifications:
| Min. Size | 10.3 (L) x 6.3 (W) |
| Max. Size | 11.3 (L) x 7.3 (W) |
BT24S

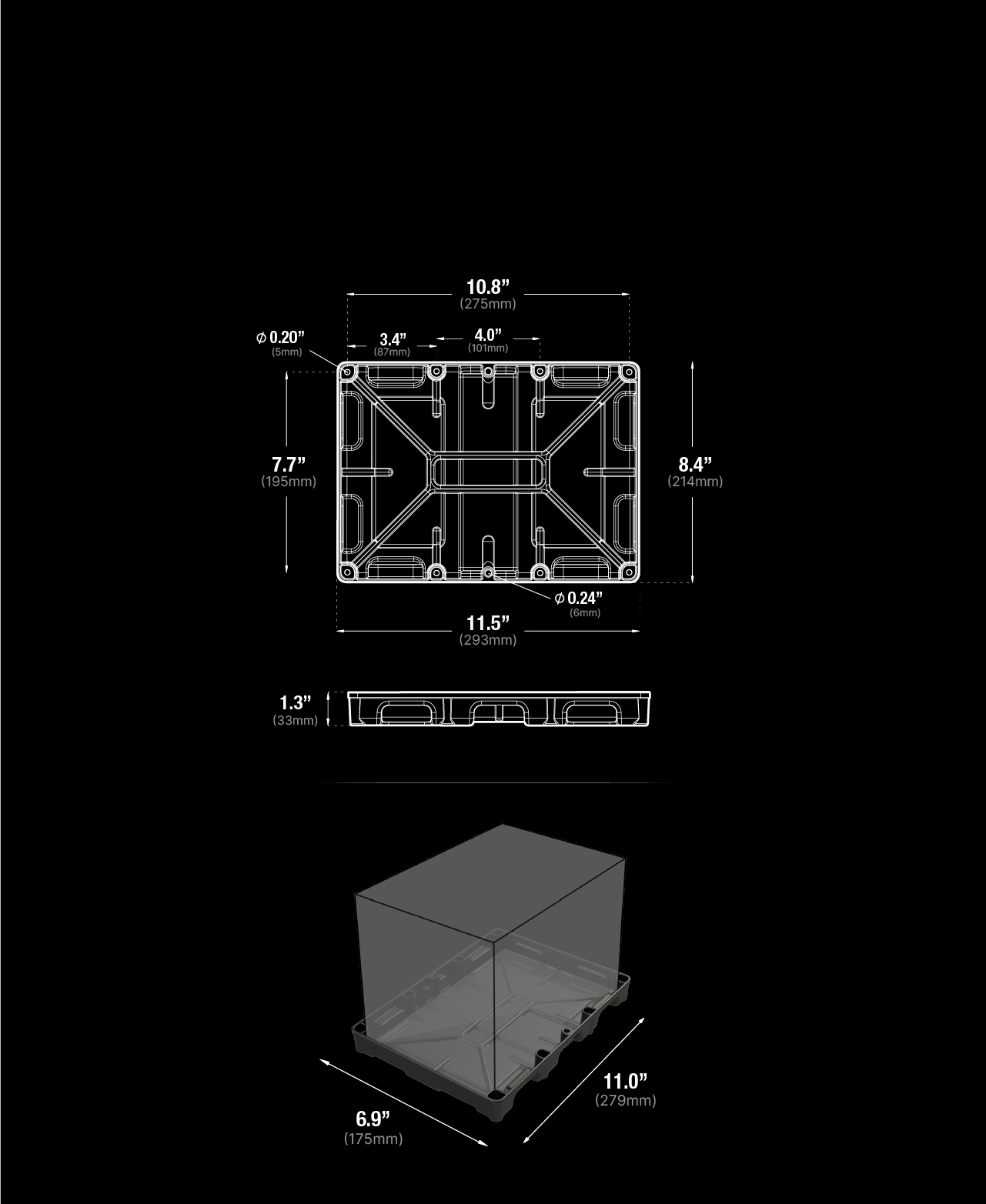

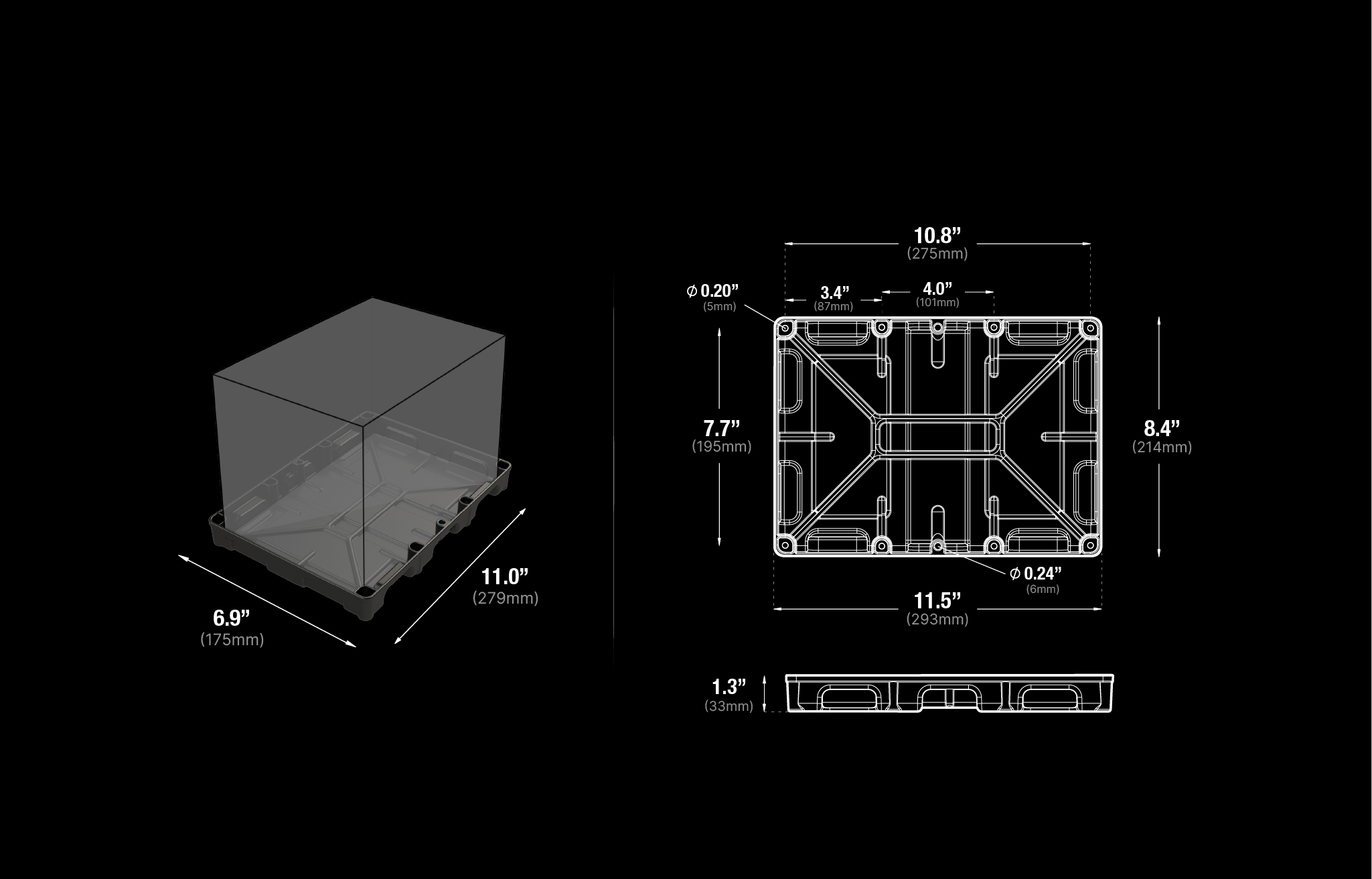

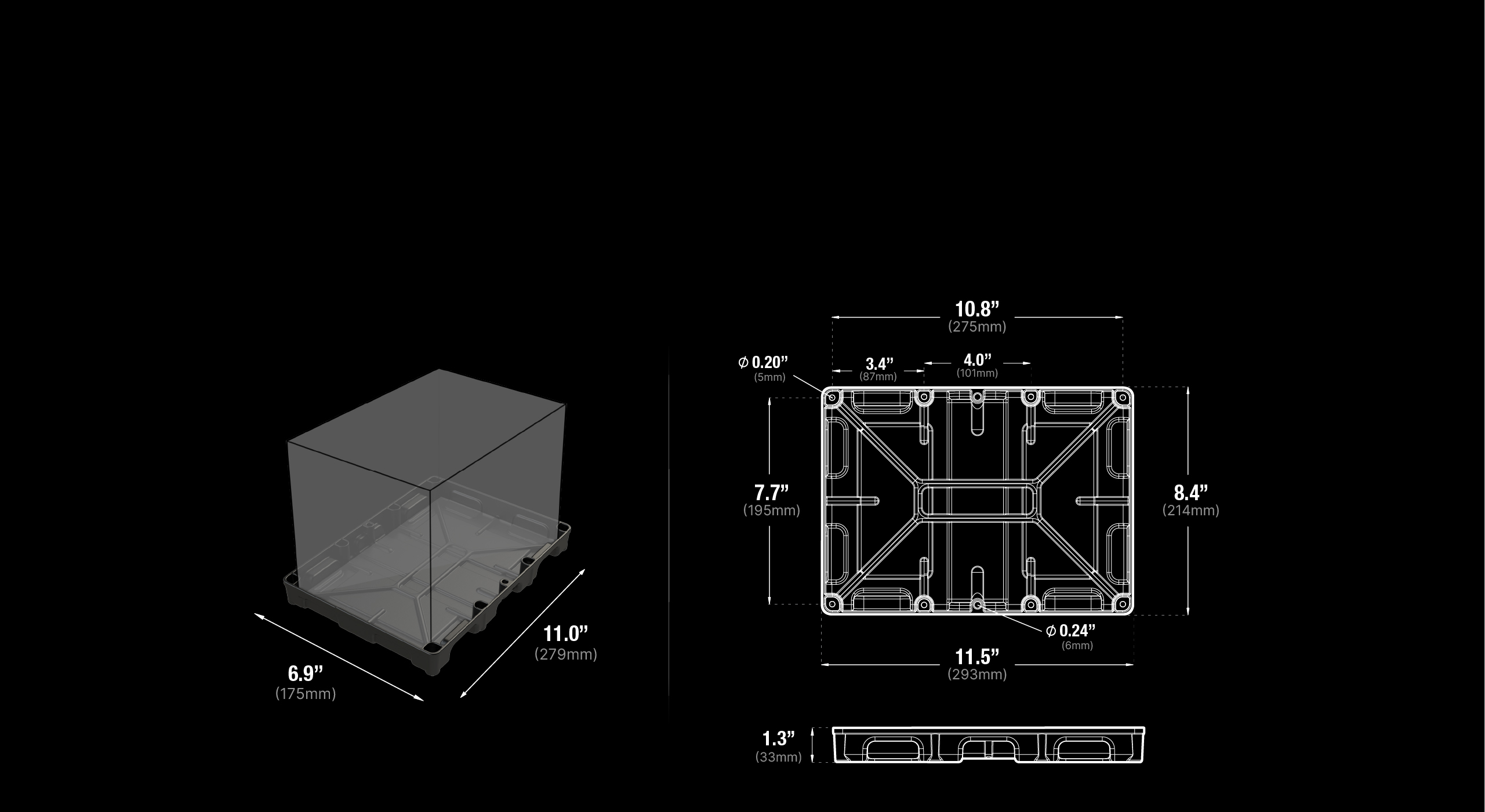

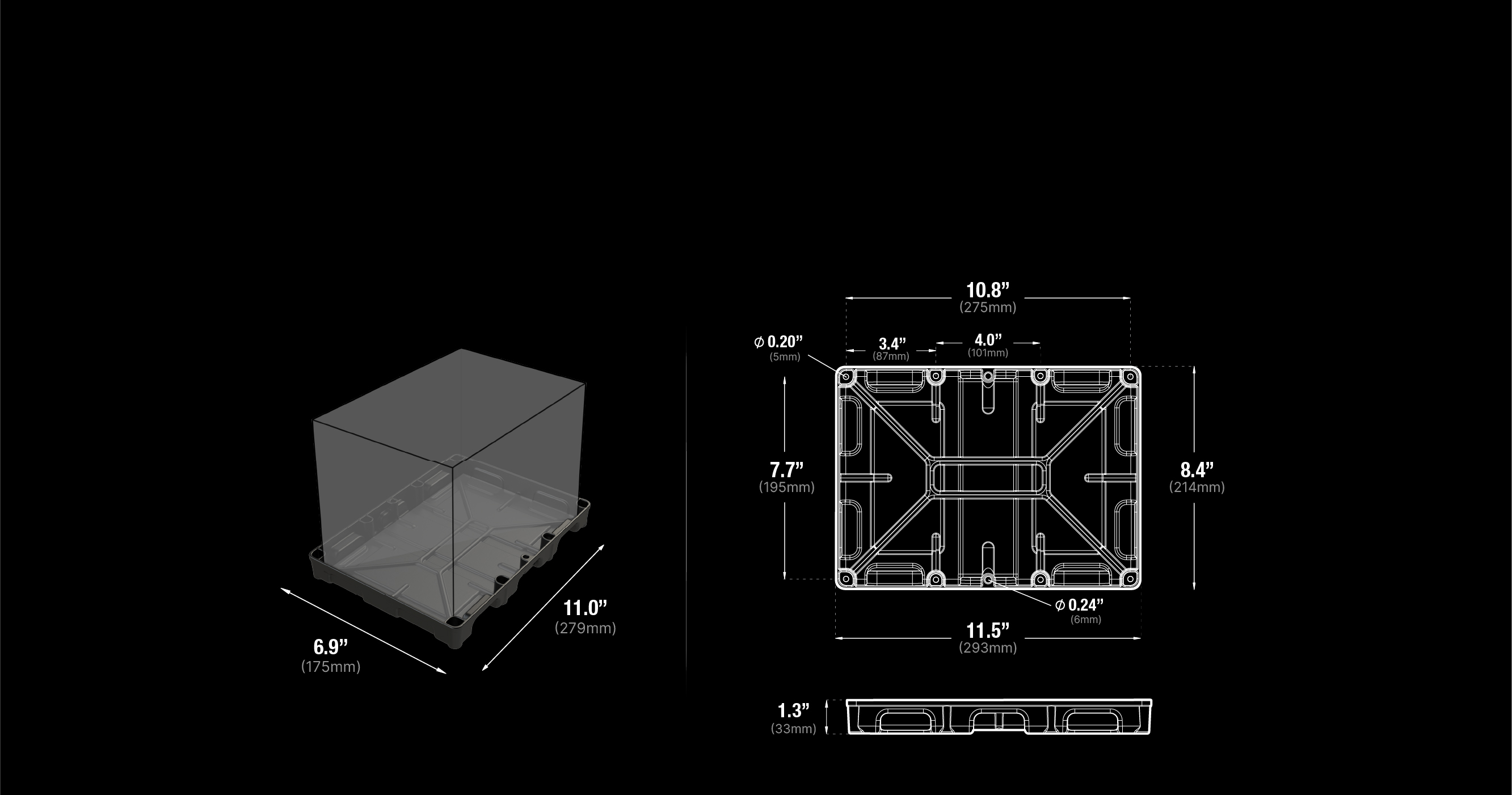

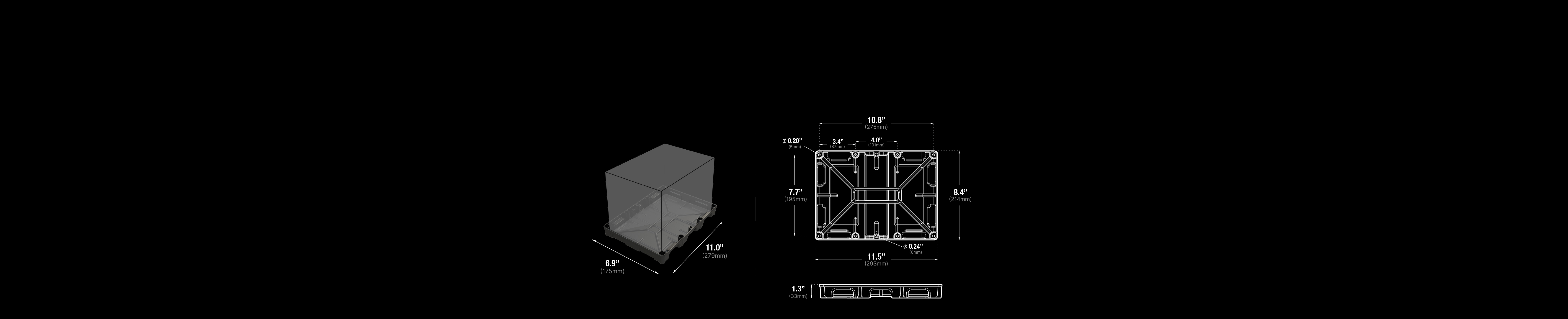

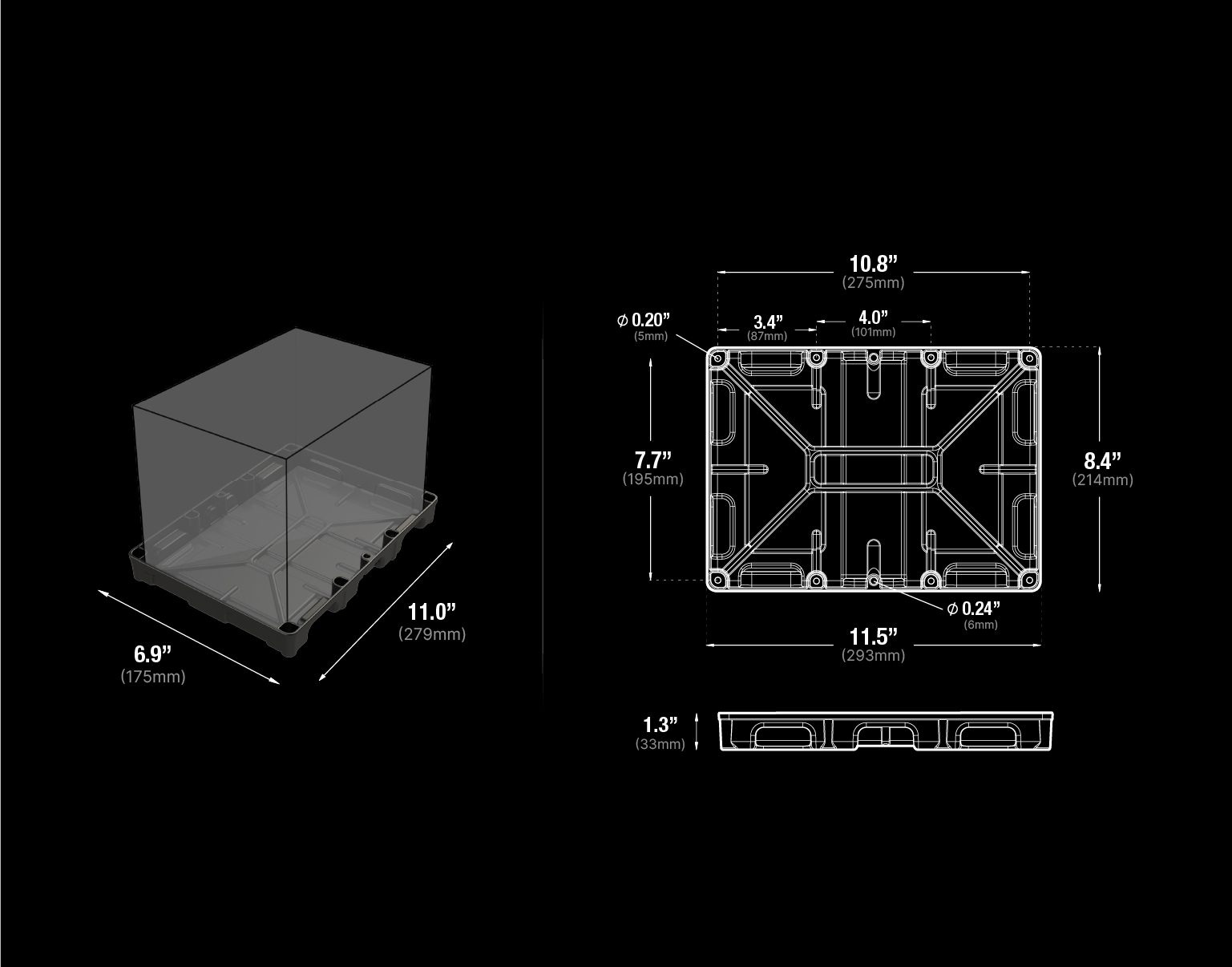

Dimensions.
