Wall vs. 12V Charging For Boost Models
Knowing The Difference between Wall Charging Vs. 12V Fast Charging

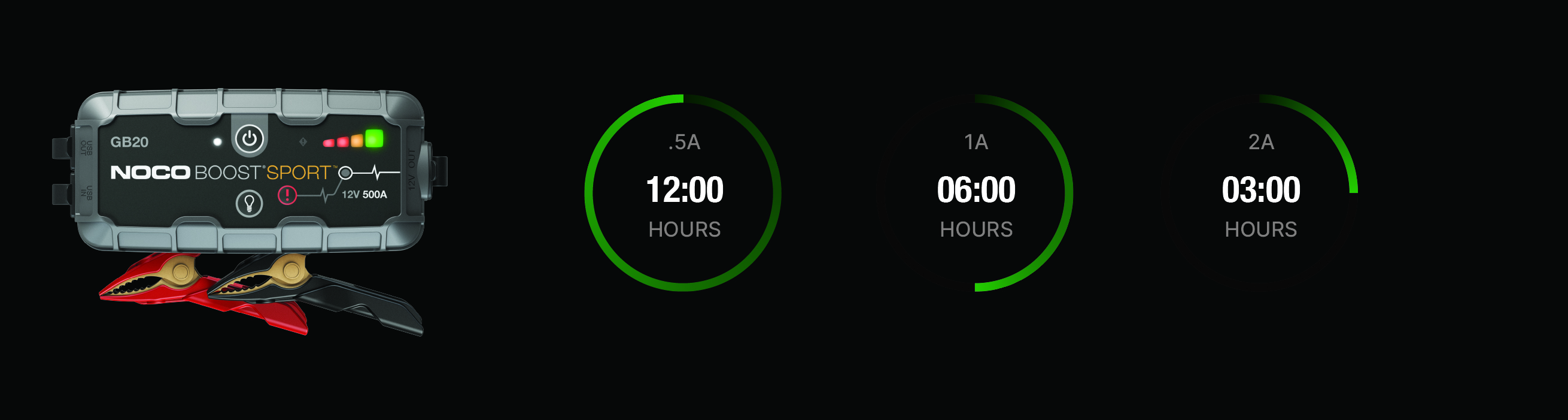

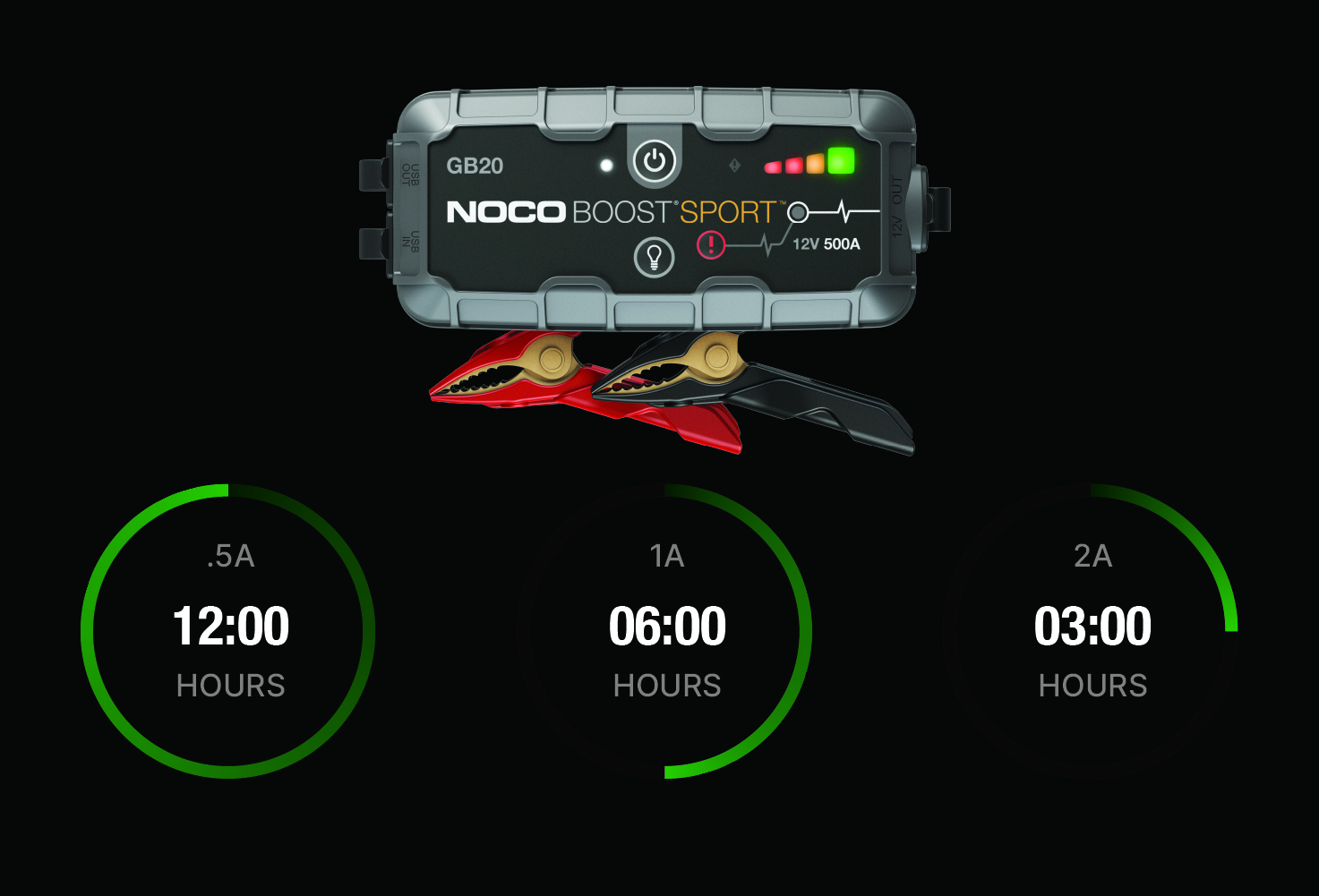

Charging the GB20.

Connect the GB20 using the included USB Charge Cable to the USB IN port and the USB car charger. It can also be recharged from any USB powered port, like an AC adapter, car charger, laptop and more. The USB IN port is rated at 2.1 Amps to ensure safe and efficient charging of the internal lithium battery. Due to FCC regulations, we recommend not to charge and discharge the unit at the same time. The time to recharge a GB20 will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

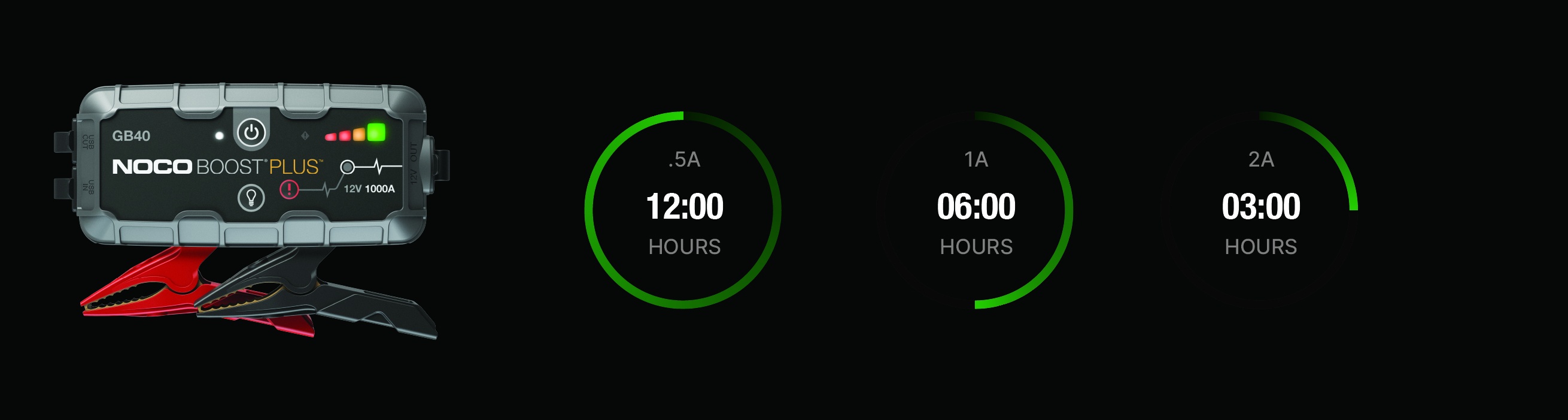

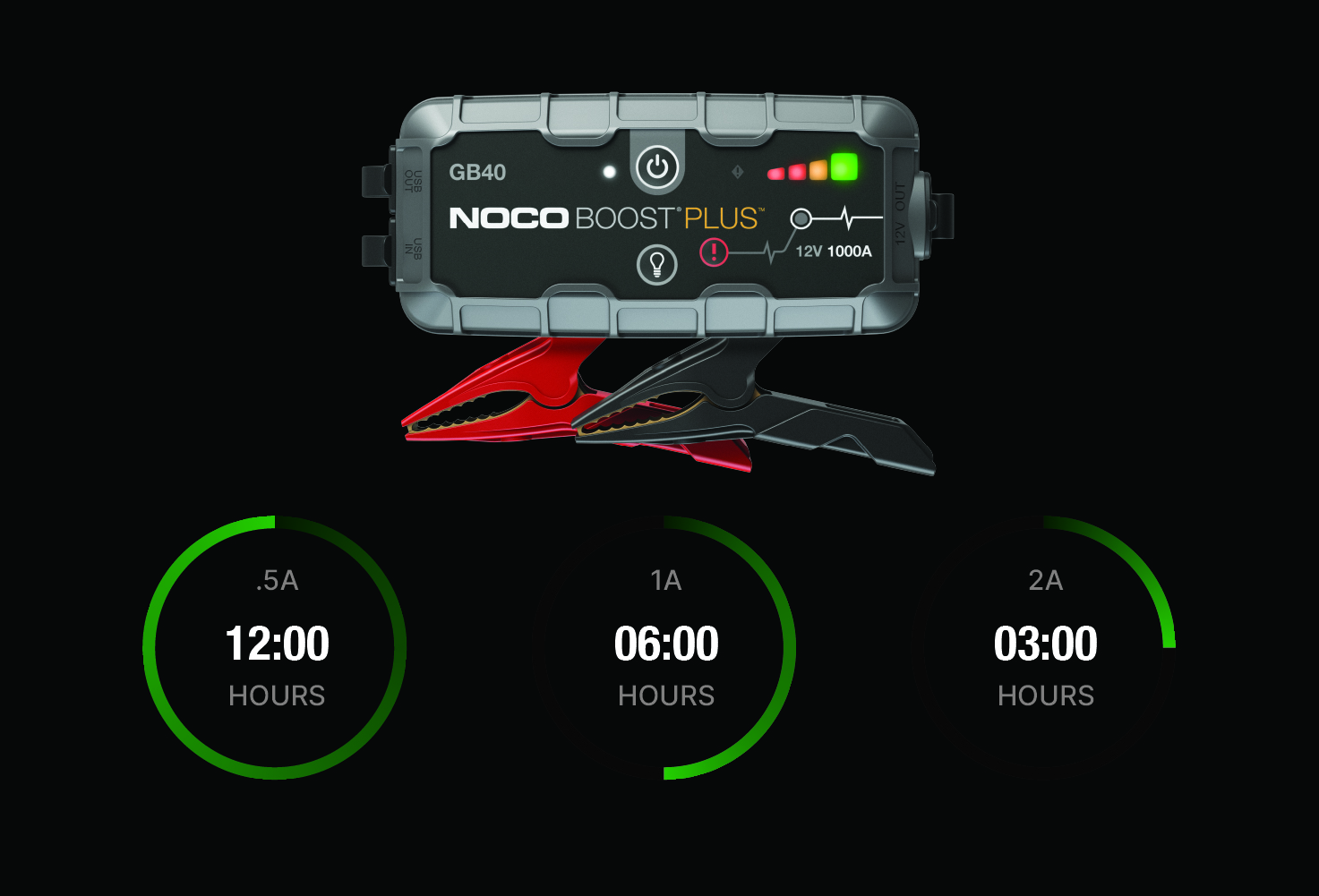

Charging the GB40.

Connect the GB40 using the included USB Charge Cable to the USB IN port and the USB car charger. It can also be recharged from any USB powered port, like an AC adapter, car charger, laptop and more. The USB IN port is rated at 2.1 Amps to ensure safe and efficient charging of the internal lithium battery. Due to FCC regulations, we recommend not to charge and discharge the unit at the same time.The time to recharge a GB40 will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

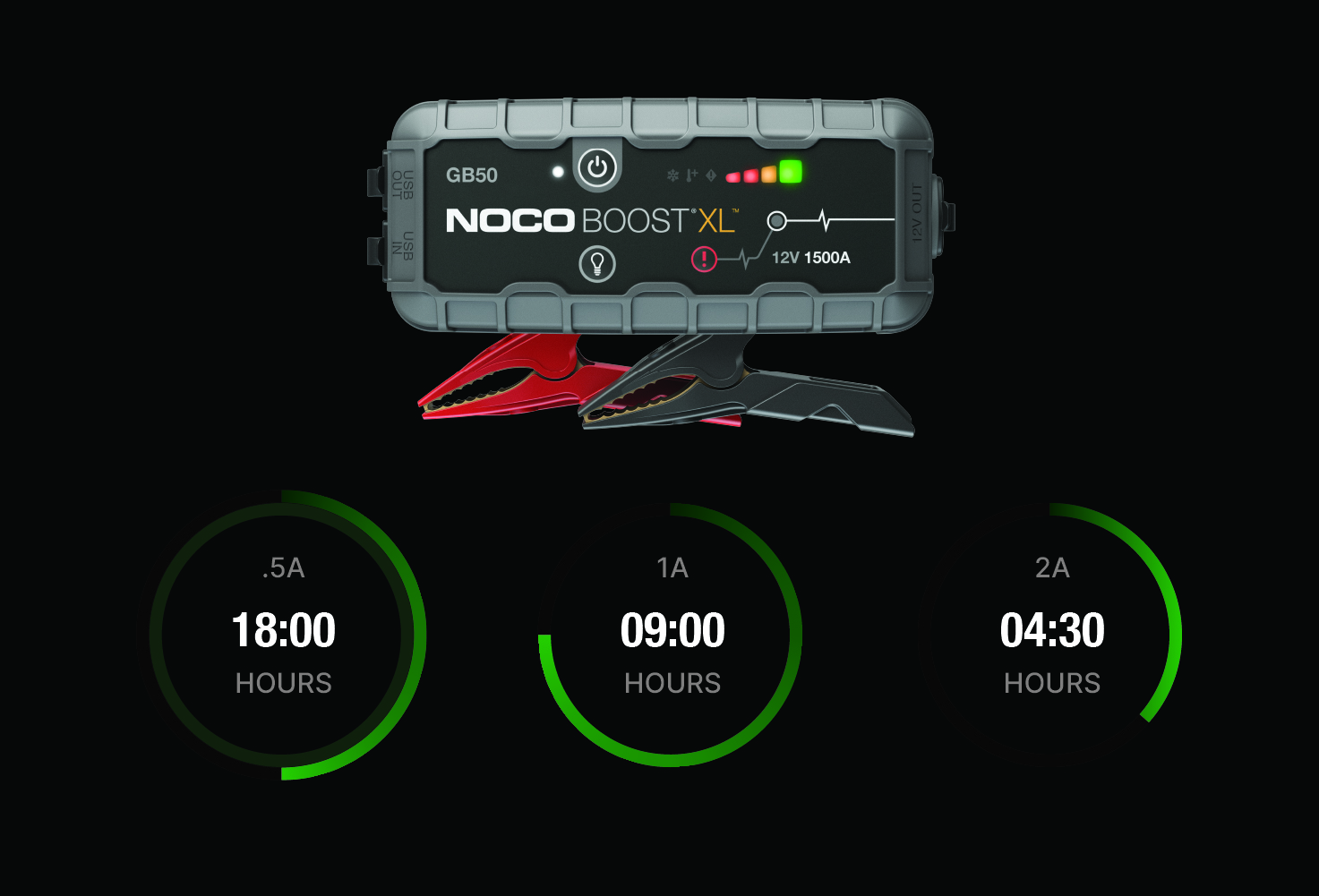

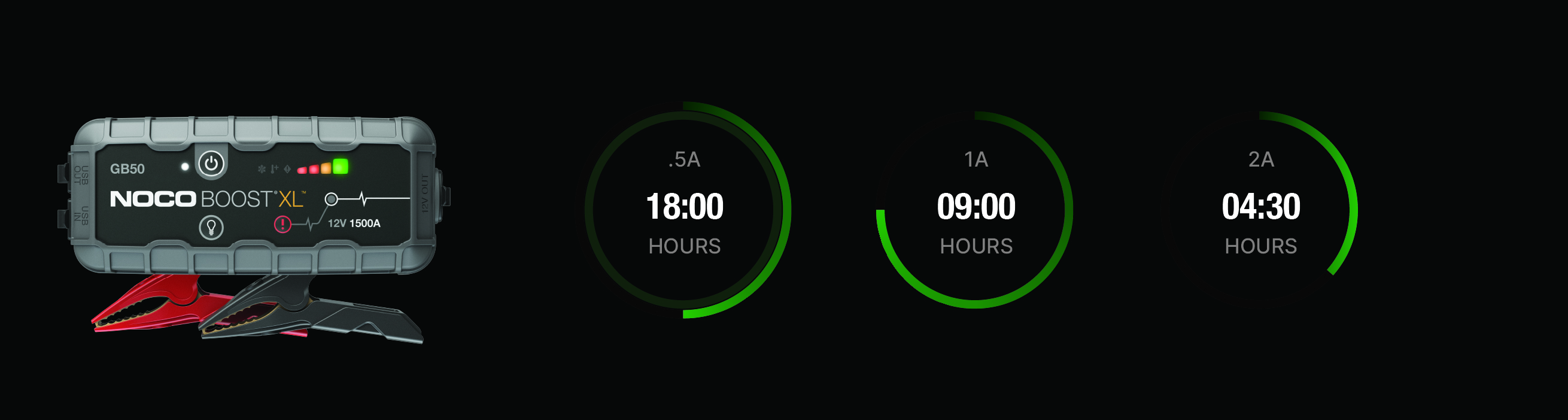

Charging the GB50.

Connect the GB50 using the included USB Charge Cable to the USB IN port and the USB car charger. It can also be recharged from any USB powered port, like an AC adapter, car charger, laptop and more. The USB IN port is rated at 2.1 Amps to ensure safe and efficient charging of the internal lithium battery. Due to FCC regulations, we recommend not to charge and discharge the unit at the same time.The time to recharge a GB50 will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

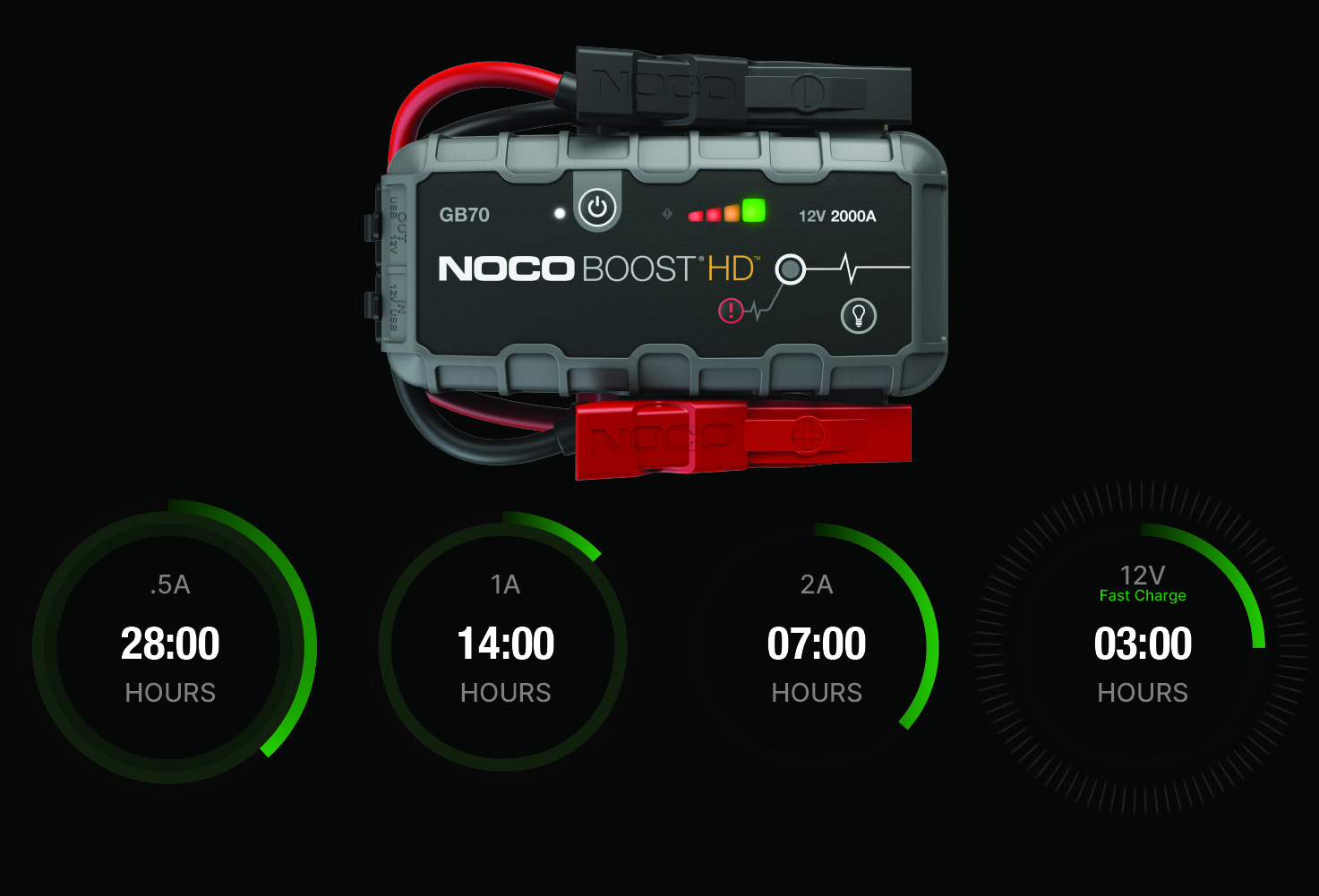

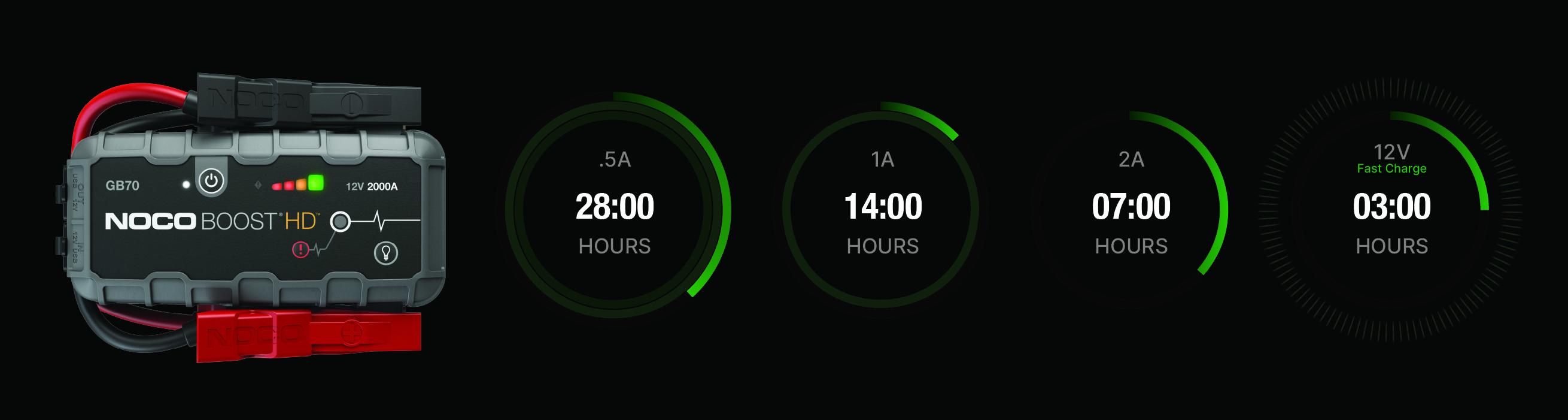

Charging the GB70.

Connect the GB70 using the included USB Charge Cable to the USB IN port and a powered USB port, like an AC adapter, car charger, laptop and more. The USB IN port is rated at 2.1 Amps to ensure safe and efficient charging of the internal lithium battery. Due to FCC regulations, we do not recommend charging and discharging the unit at the same time. The time to recharge a GB70 will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

12V Fast Charge (36W):

Connect the 12V Cable to the “12V IN” port on the GB70, and the other end to the Male 12 Plug. Plug into a powered 12V AUX Plug (Cigarette Lighter Port.)

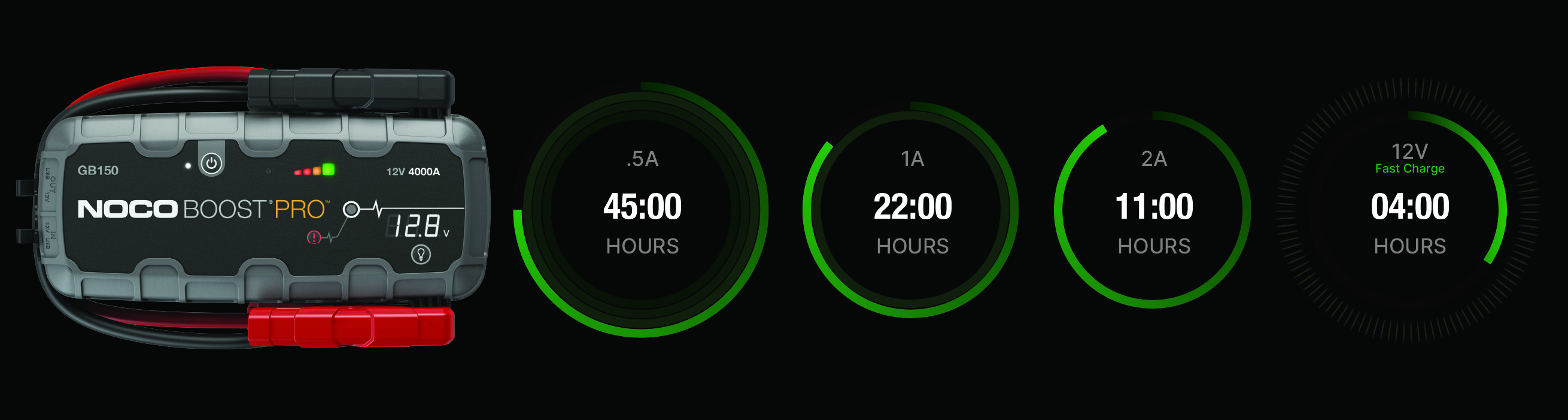

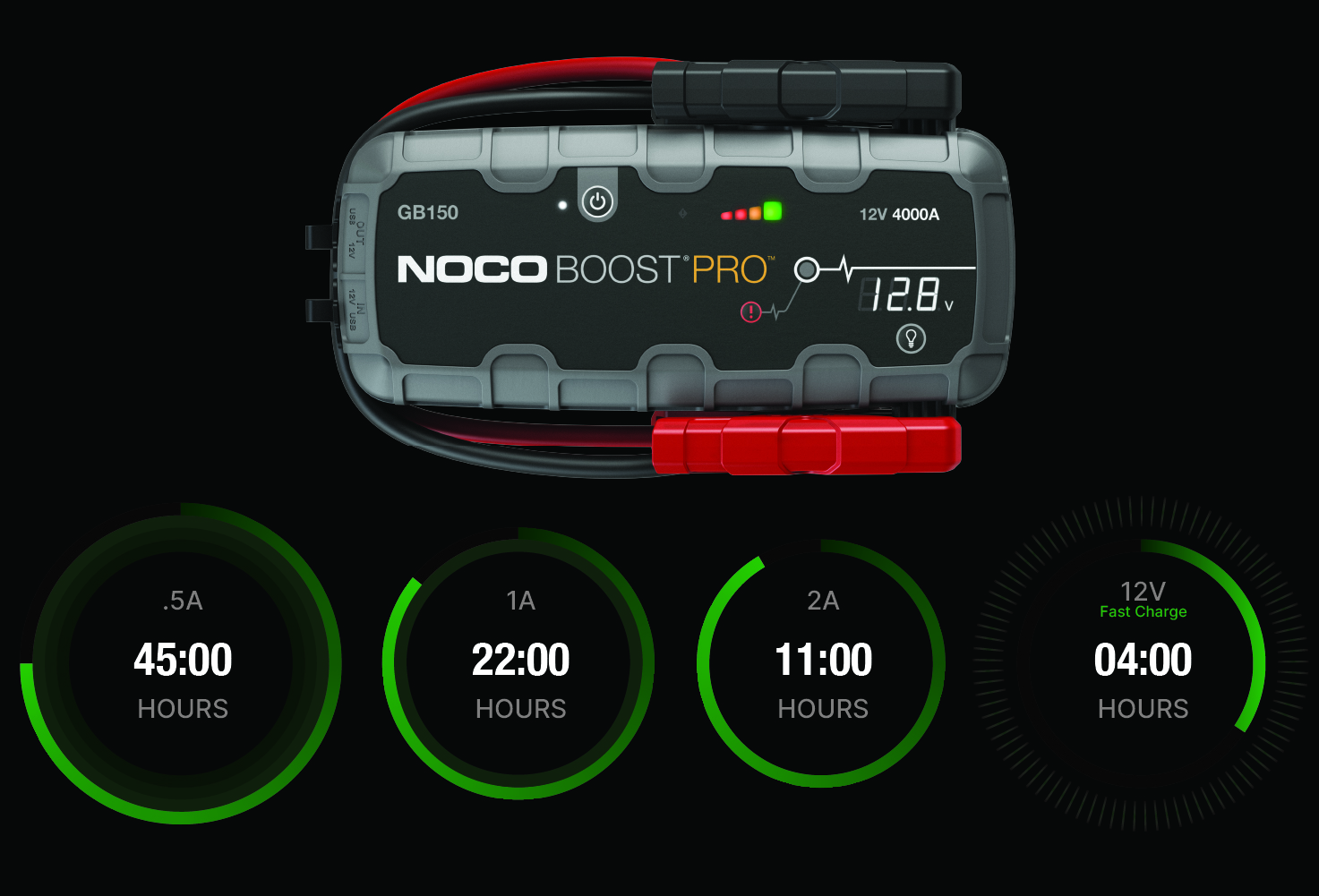

Charging the GB150.

Connect the GB150 using the included USB Charge Cable to the USB IN port and a powered USB port, like an AC adapter, car charger, laptop and more. The USB IN port is rated at 2.1 Amps to ensure safe and efficient charging of the internal lithium battery. Due to FCC regulations, we do not recommend charging and discharging the unit at the same time. The time to recharge a GB150 will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

12V Fast Charge (60W):

Connect the 12V Cable to the “12V IN” port on the GB150, and the other end to the Male 12 Plug. Plug into a powered 12V AUX Plug (Cigarette Lighter Port.)

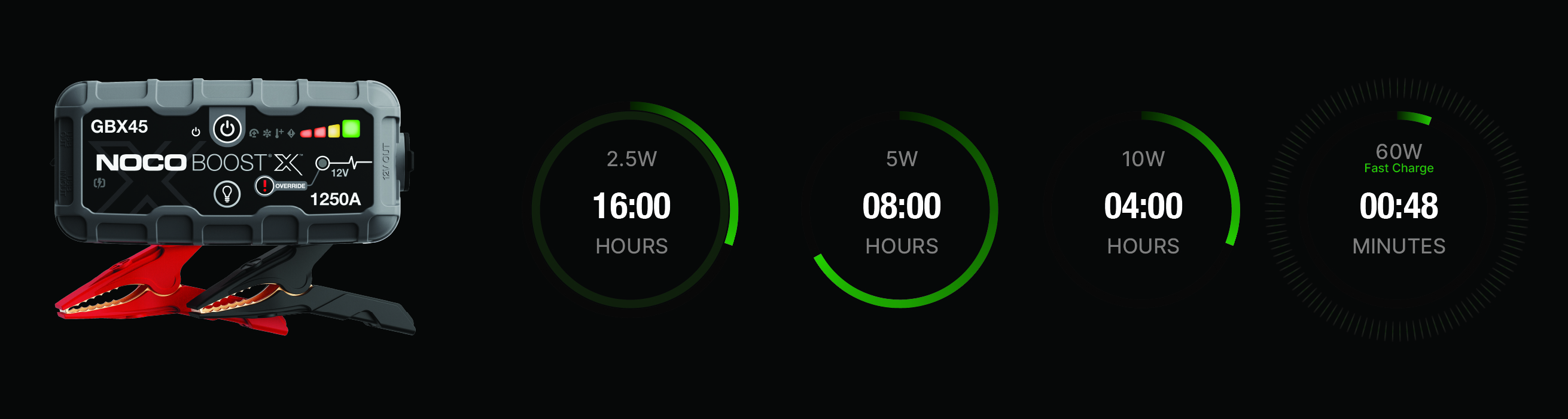

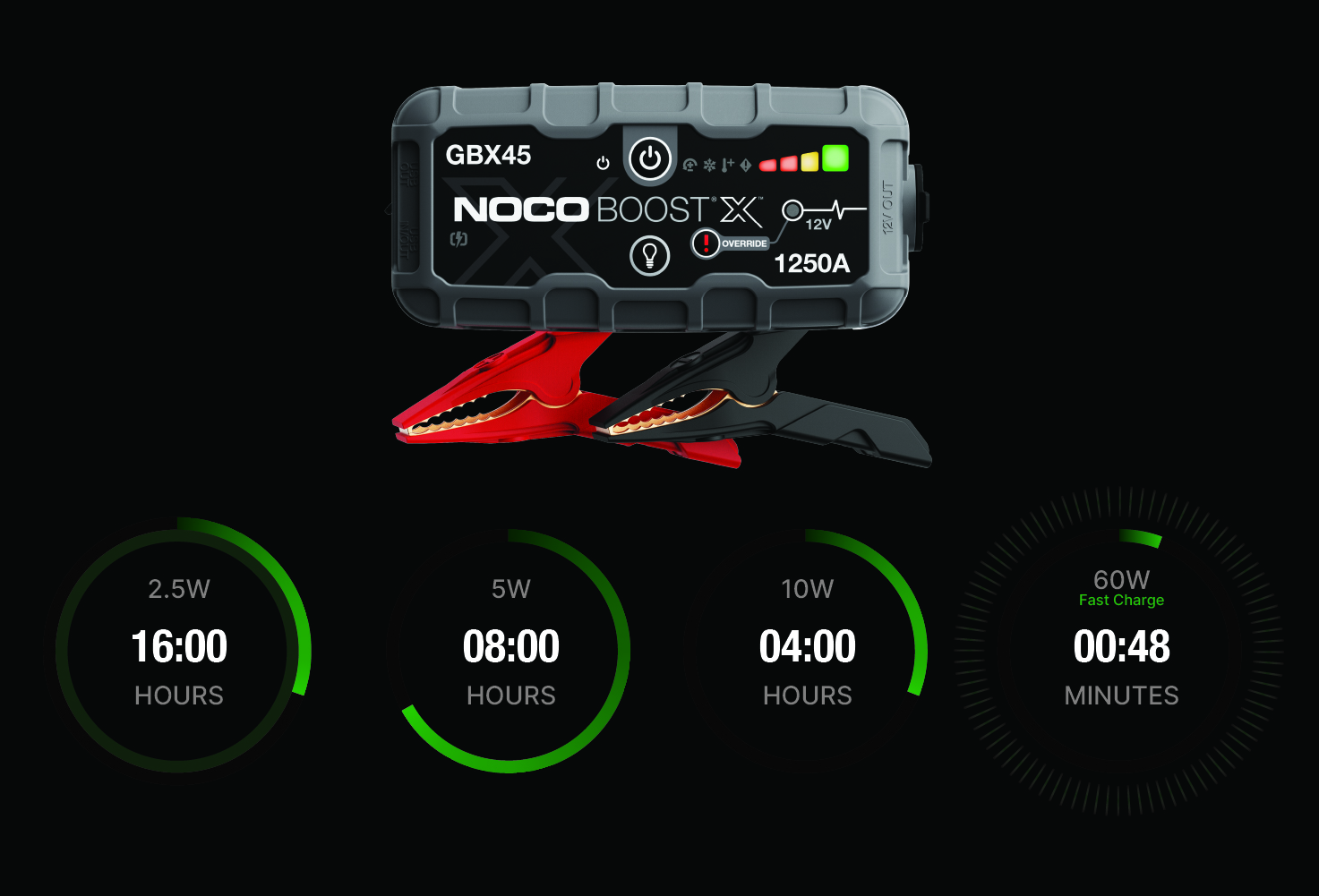

Charging the GBX45.

Connect the GBX45 using the included USB-C Charge Cable to the USB-C IN/OUT port and a powered USB port, like an AC adapter, car charger, laptop and more. The USB-C IN/OUT port on Boost X utilizes Power Delivery 3.0 technology capable of receiving/delivering up to 60W. Due to FCC regulations, we do not recommend charging and discharging the unit at the same time. The time to recharge Boost X will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

Fast Charge (60W):

Connect a USB-C Cable to the USB-C IN/OUT port on Boost X, and the other end to a compatible USB-C power adaptor capable of providing a minimum of 60W.

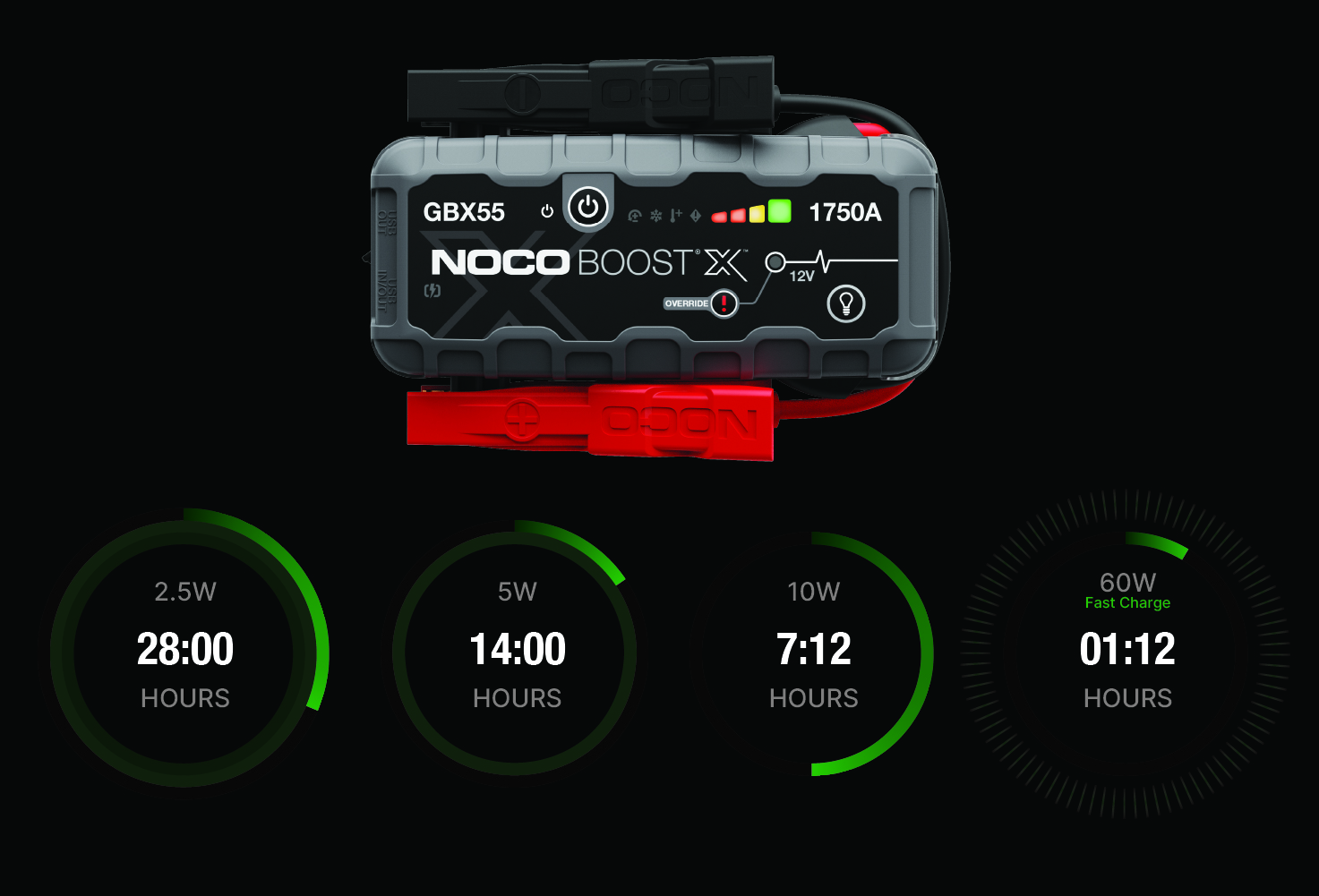

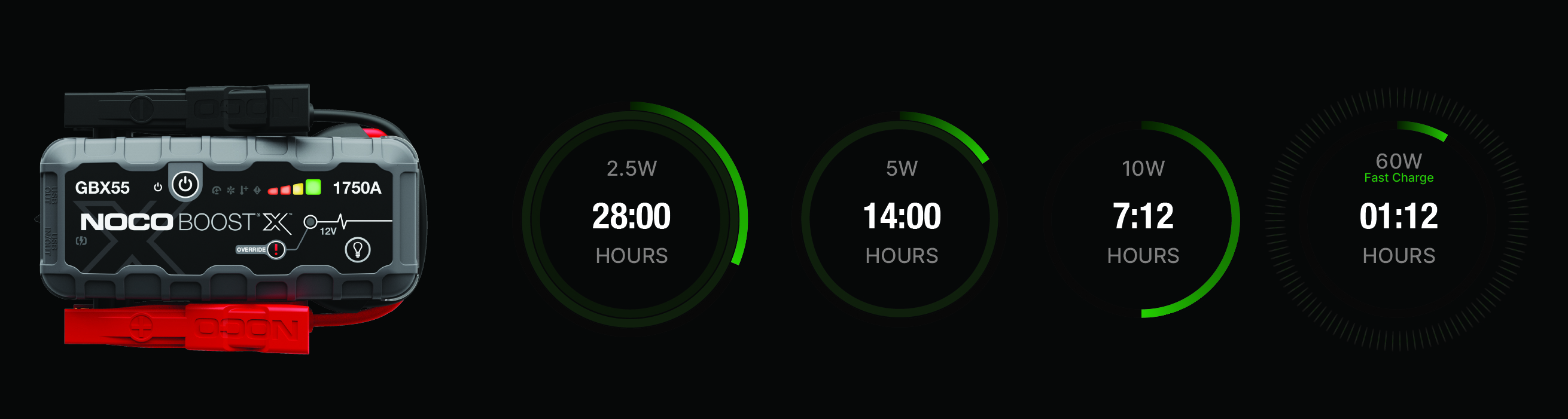

Charging the GBX55.

Connect the GBX55 using the included USB-C Charge Cable to the USB-C IN/OUT port and a powered USB port, like an AC adapter, car charger, laptop and more. The USB-C IN/OUT port on Boost X utilizes Power Delivery 3.0 technology capable of receiving/delivering up to 60W. Due to FCC regulations, we do not recommend charging and discharging the unit at the same time. The time to recharge Boost X will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

Fast Charge (60W):

Connect a USB-C Cable to the USB-C IN/OUT port on Boost X, and the other end to a compatible USB-C power adaptor capable of providing a minimum of 60W.

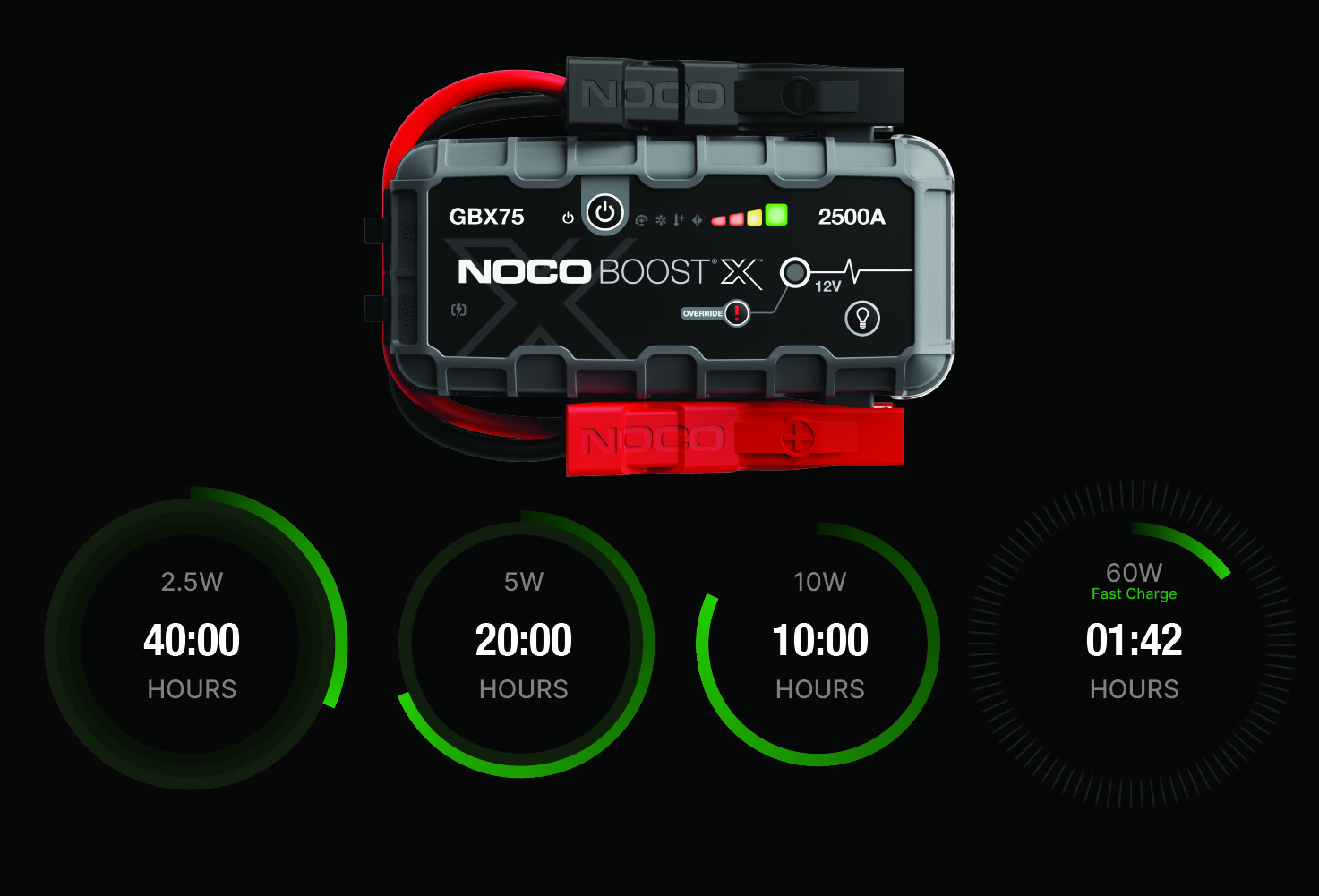

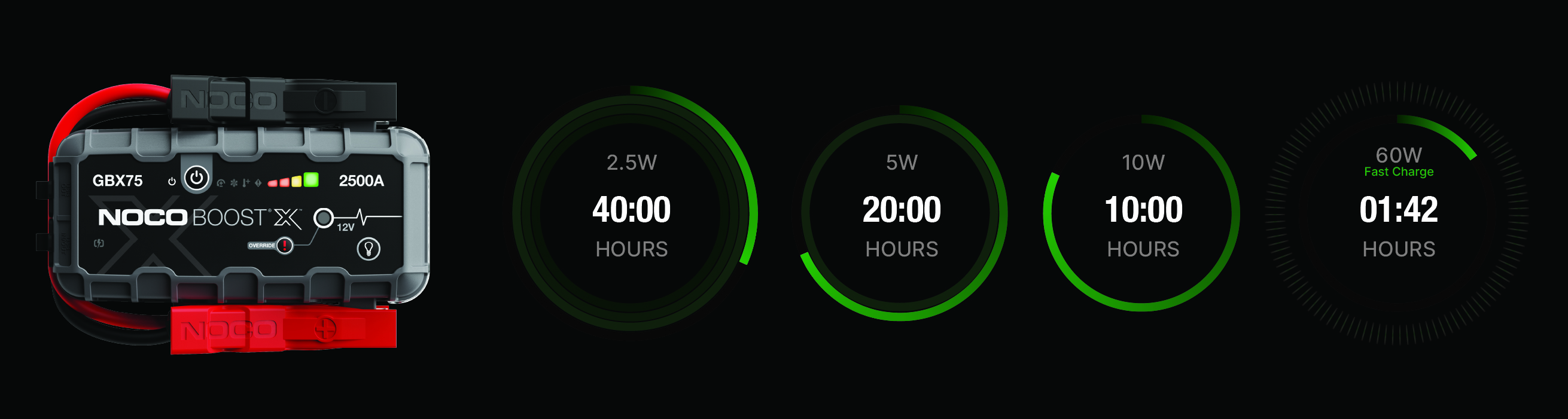

Charging the GBX75.

Connect the GBX75 using the included USB-C Charge Cable to the USB-C IN/OUT port and a powered USB port, like an AC adapter, car charger, laptop and more. The USB-C IN/OUT port on Boost X utilizes Power Delivery 3.0 technology capable of receiving/delivering up to 60W. Due to FCC regulations, we do not recommend charging and discharging the unit at the same time. The time to recharge Boost X will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

Fast Charge (60W):

Connect a USB-C Cable to the USB-C IN/OUT port on Boost X, and the other end to a compatible USB-C power adaptor capable of providing a minimum of 60W.

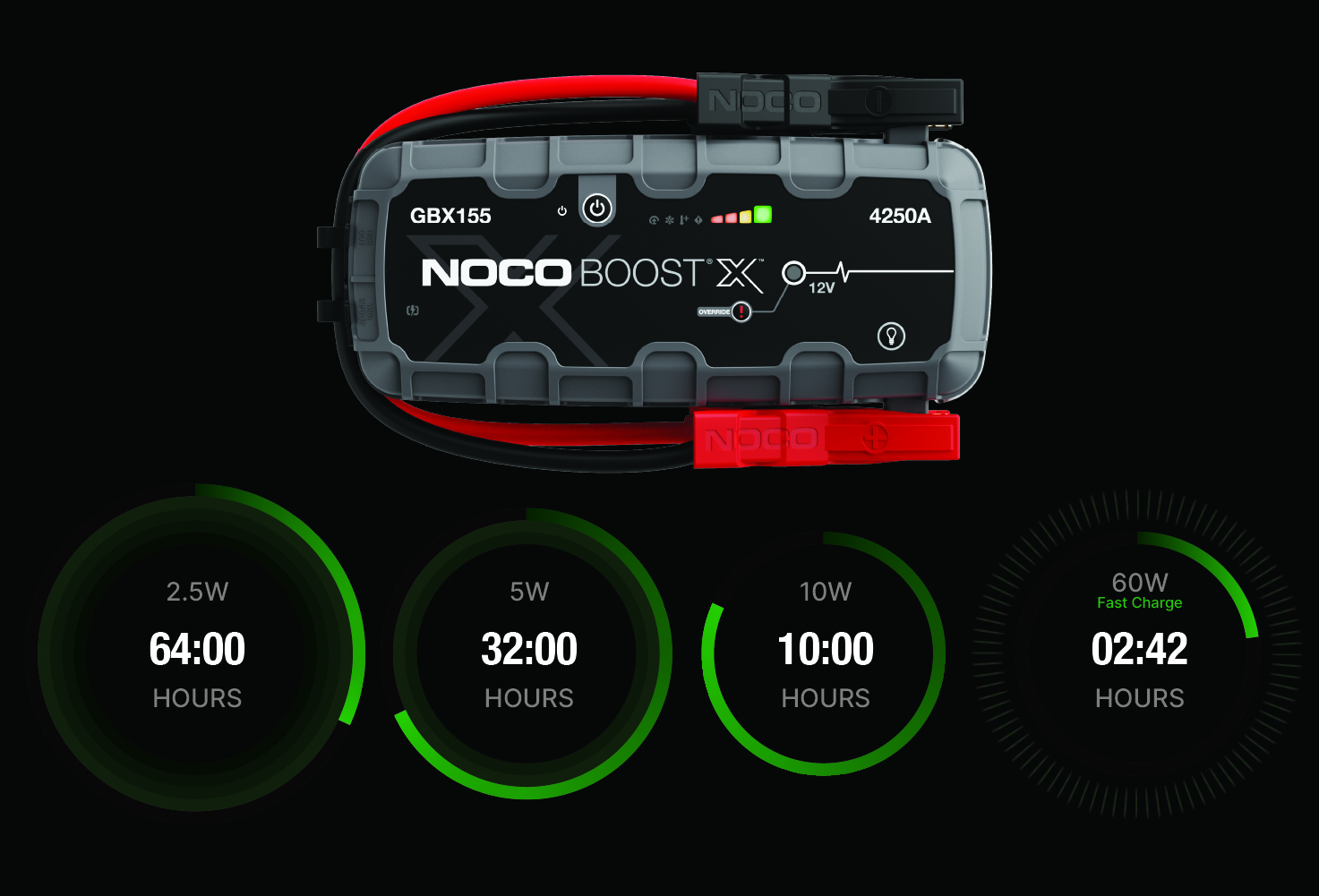

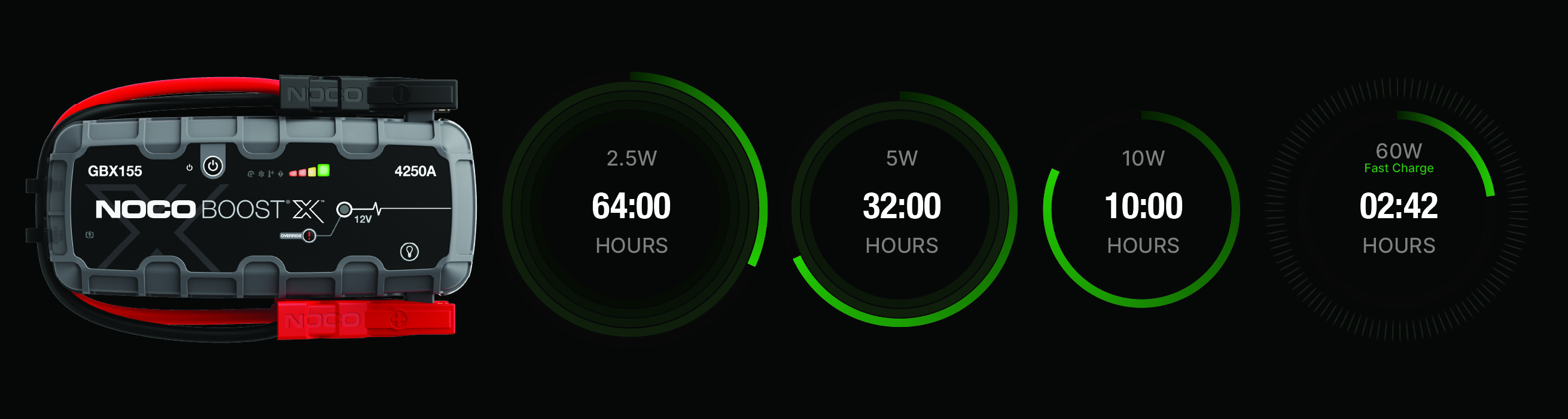

Charging the GBX155.

Connect the GBX155 using the included USB-C Charge Cable to the USB-C IN/OUT port and a powered USB port, like an AC adapter, car charger, laptop and more. The USB-C IN/OUT port on Boost X utilizes Power Delivery 3.0 technology capable of receiving/delivering up to 60W. Due to FCC regulations, we do not recommend charging and discharging the unit at the same time. The time to recharge Boost X will differ based on the discharge level and the power source used. Actual results may vary due to battery conditions.

Fast Charge (60W):

Connect a USB-C Cable to the USB-C IN/OUT port on Boost X, and the other end to a compatible USB-C power adaptor capable of providing a minimum of 60W.
