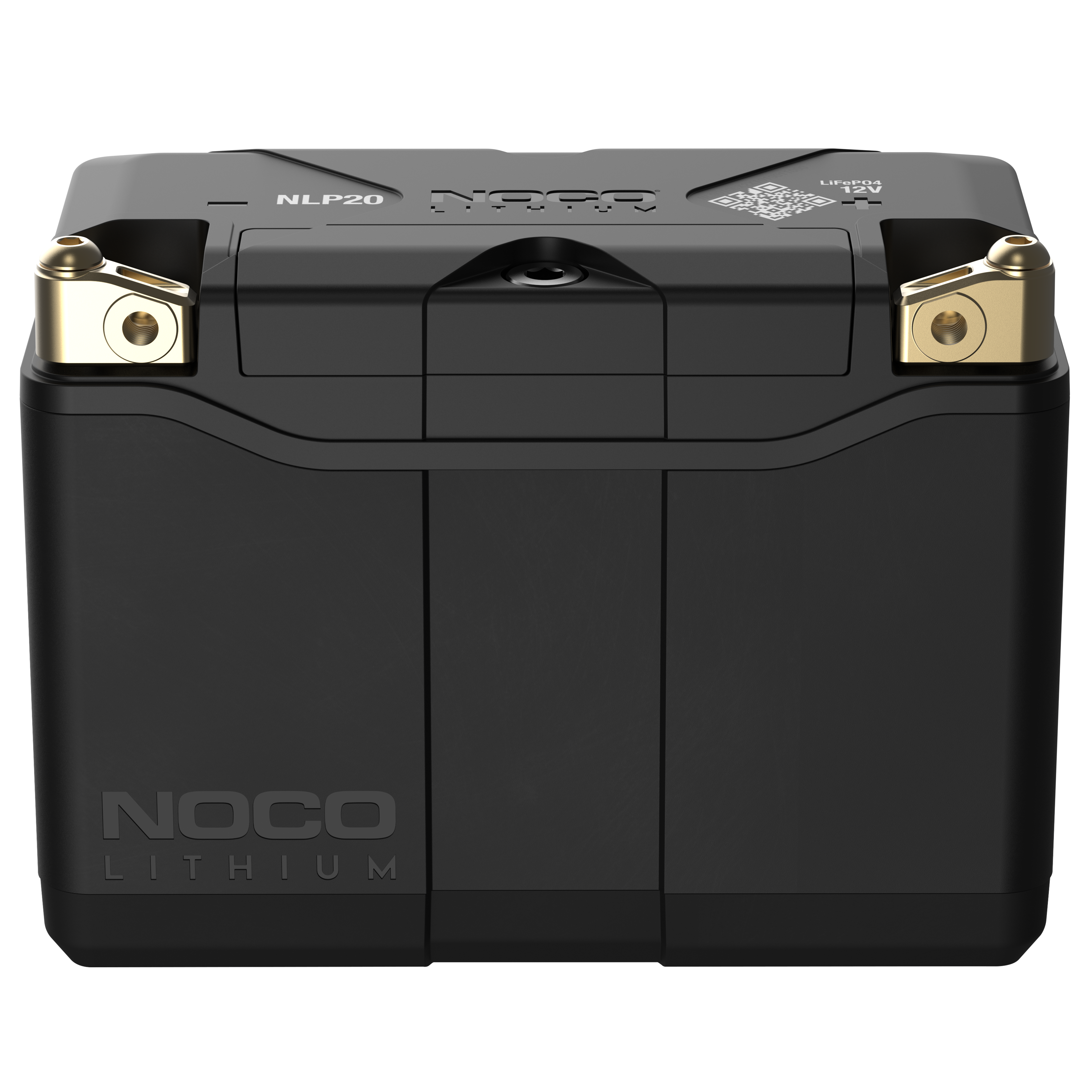

NLP20 Support
NLP20
Support.
USER GUIDE
DATASHEET
VIDEO
How To Install NOCO Lithium Powersport Batteries
Learn how to install your NOCO Lithium Powersport Battery.
HOW TO INSTALL.
NOCO Lithium Powersport has terminals that can be mounted from the front, side, or top, and can be removed altogether depending on the application. A removable mounting block allows the battery to fit more applications. The threaded insert enables direct-mounting for additional simplicity and security. The modular mounting spacer can be stacked and attached to the NLP batteries to alter the BCI size enabling the battery to be safely and securely mounted.

STEP 01
Remove original battery from vehicle following manufacturer’s guidelines.
STEP 02
Compare the height of original battery to NLP Lithium Powersport battery.
STEP 03
If the original battery dimensions is larger than NLP then use included spacers and foam to adjust the size to match the original battery as closely as possible.
STEP 04
Securely fasten the battery to the battery tray, making sure the power cables reach both terminals.
STEP 05
Using the included fastening hardware attach the Positive battery cable to the Positive battery terminal.
STEP 06
Then, attach the Negative battery cable to the Negative battery terminal.
STEP 07
If necessary, mount cables in an alternate position with NLP's alternate connection terminal options.
STEP 08
Be sure to fasten the bolts securely, but be careful not to over tighten.
POWERSPORT.
5 YEAR WARRANTY.
All NOCO Lithium Powersport batteries come with a limited 5 Year warranty. Register your product after purchasing to qualify for the applicable warranty.
REGISTER PRODUCT
VIEW WARRANTY
FAQS
NLP
Specs & Features
What is the battery chemistry of NOCO Powersport?

NOCO Powersport's battery chemistry is Lithium Iron Phosphate (LiFePO4).


What is the battery capacity of NOCO Powersport?
NLP5 2 Amp-Hours 25.6 Watt-Hours
NLP9 3 Amp-Hours 38.4 Watt-Hours
NLP14 4 Amp-Hours 51.2 Watt-Hours
NLP20 7 Amp-Hours 89.6 Watt-Hours
NLP30 7.8 Amp-Hours 99.84 Watt-Hours

What is the lead-acid of NOCO Powersport?
NLP5 4.2 Amp-Hours
NLP9 12 Amp-Hours
NLP14 13 Amp-Hours
NLP20 19 Amp-Hours
NLP30 32 Amp-Hours
What is the starting current of NOCO Powersport?
NLP5 250 Amp (Peak)
NLP9 400 Amp (Peak)
NLP14 500 Amp (Peak)
NLP20 600 Amp (Peak)
NLP30 700 Amp (Peak)
What is the IP Rating on NOCO Powersport?

NOCO Powersport batteries are rated IP66, waterproof rated.

How heavy is NOCO Powersport?
NLP5 1.5 lbs (0.69 kg)
NLP9 2.29 lbs (1.03 kg)
NLP14 2.58 lbs (1.17 kg)
NLP20 3.73 lbs (1.7 kg)
NLP30 5.0 lbs (2.27 kg)
What is the operating temperature of NOCO Powersport?

NOCO Powersport batteries can operate within the temperature range -4ºF to 140ºF (-20ºC to 60ºC).

What does the Battery Management System (BMS) on the Powersport batteries protect against?

The Battery Management System (BMS) monitors the internal lithium-ion cells and disconnects them if a fault occurs. The Dynamic BMS will protect against Over-Charge, Over-Discharge, Extreme Heat, Extreme Cold, Short Circuit, and Over Current.

Warranty & Support
How long is the warranty on NOCO Powersport?

The warranty is 5 years from the proof of purchase or manufacture date (based on serial number).

Where can I obtain the user manual for NOCO Powersport batteries?
Installation & Compatibility
What is BCI size (group number) of NOCO Powersport?
NLP5 5
NLP9 9
NLP14 14
NLP20 20
NLP30 30
Can I use a Boost jump starter on NOCO Powersport batteries?

Yes. You can use a NOCO Boost device on any NOCO Lithium batteries. Enabling Manual Override might be needed due to the BMS.

Which spacers should I use with NLP5?

The following table provides the battery fitment and the corresponding spacers and foam needed to achieve proper height, width and length for retrofit applications.

NLP5

BCI Sizes Yuasa Sizes Spacers
BTZ5S
BTX4L-BS		 YTZ5S-BS
YTX4L-BS		 None
BTX5L-BS
BTZ7S		 YTX5L-BS
YTZ7S		 (1) 20 mm
BTZ8V
BTX7L-BS		 YTZ8V
YTX7L-BS		 (1) 20 mm, (1) 24 mm
Which spacers should I use with NLP9?

The following table provides the battery fitment and the corresponding spacers and foam needed to achieve proper height, width and length for retrofit applications.

NLP9

BCI Sizes Yuasa Sizes East Penn Spacers
BTX7A-BS YTX7A-BS   None
BTX9-BS YTX9   (1) 12.5 mm
BTR9-BS YTX9-BS ETX9 (1) 12.5 mm
Which spacers should I use with NLP14?

The following table provides the battery fitment and the corresponding spacers and foam needed to achieve proper height, width and length for retrofit applications.

NLP14

BCI Sizes Yuasa Sizes East Penn Spacers
BTZ10S YTZ10S   None
BT12A-BS YT12A-BS   (1) 12.5 mm
BTZ12S
BTZ14S		 YTZ12S
YTZ14S		   (1) 17 mm
BTX12-BS YTX12
YTX12-BS		 ETX12 (1) 12.5 mm
(1) 17 mm
BTX14
BT14B-4
BTX14-BS		 YTX14
YTX14-BS
YTX14H
YTX14H-BS
GYZ16H
KMX14-BS		 ETX14
ETX14L		 (2) 25 mm
BTX16-BS
BTX16-BS-1
BTX20CH-BS		 YTX16-BS
YTX16-BS-1
YTX20CH
YTX20CH-BS		   (1) 17 mm
(2) 25 mm
B16A-AB HYB16A-AB   (1) 12.5 mm
(3) 25 mm
Which spacers should I use with NLP20?

The following table provides the battery fitment and the corresponding spacers and foam needed to achieve proper height, width and length for retrofit applications.

NLP20

BCI Sizes Yuasa Sizes East Penn Spacers
BTX15L
BTX15L-BS		 YTX15L
YTX15L-BS		   None
BTX20L
BTX20HL-BS
BTX20L-BS
BTZ20L		 GYZ20L
GYZ20HL
YTX20HL
YIX20HL
YTX20L
YTX20L-BS
YTX20HL-BS		 ETX20L (1) 12 mm
(1) 15 mm
B16L-B YB16HL-A-CX
YB16L-B
SYB16L-B		 ETX16
ETX16L		 (1) 12 mm
(1) 15 mm
(2) 7.5 mm Foam
  YTX20HL-PW
YIX20HL-BS
YTX20HL-BS-PW		   (3) 15 mm
B18L-A     (2) 15 mm
(1) 7.5 mm Foam
B50-N18L-A3 Y50-N18L-A3   (2) 15 mm
(4) 7.5 mm Foam
B16CL-B YB16CL-B   (3) 15 mm
(2) 7.5 mm Foam
Which spacers should I use with NLP30?

The following table provides the battery fitment and the corresponding spacers and foam needed to achieve proper height, width and length for retrofit applications.

NLP30

BCI Sizes Yuasa Sizes East Penn Spacers
BTX30L-BS
BTX30L		 GYZ32HL
YIX30L		 ETX30L None
Usage & Care
What is the optimal storage temperature of NOCO Powersport?

NOCO Powersport batteries should not be stored below -4ºF (-20ºC) and not exceed 140ºF (60ºC) for any reason.

Can I mount NOCO Powersport batteries in other directions?

You can install the battery in any direction except with the connectors facing downwards.

Can I use the NOCO Powersport batteries in series or parallel?

No. NOCO Powersport batteries are designed as starting batteries. Their BMS is not designed for series or parallel applications, and connecting them in series or parallel could damage the BMS and internal battery cells.


What is the recharge time for NOCO Powersport batteries?

To recharge NOCO Powersport batteries, connect a compatible lithium-ion charger to the positive ( ) and negative (-) battery terminals. The recommended charging voltage is 14.6-volts. The product uses advanced lithium-ion technology that allows for the rapid charging of the internal lithium-ion cells.

This is a table of the charging times, based on 100% depth-of-discharge (DOD), using recommended NOCO Genius Smart Battery Chargers:

  GENIUS1 GENIUS2 GENIUS5 GENIUS10
NLP5 2 hours 1 hours 24 minutes ––
NLP9 3 hours 1.5 hours 36 minutes ––
NLP14 4 hours 2 hours 48 minutes 24 minutes
NLP20 7 hours 3.5 hours 1.4 hours 42 minutes
NLP30 8 hours 4 hours 1.6 hours 48 minutes
Compatible Products
Use the Lithium mode on any GENIUS charger to fully recharge an NLP battery in minutes.
