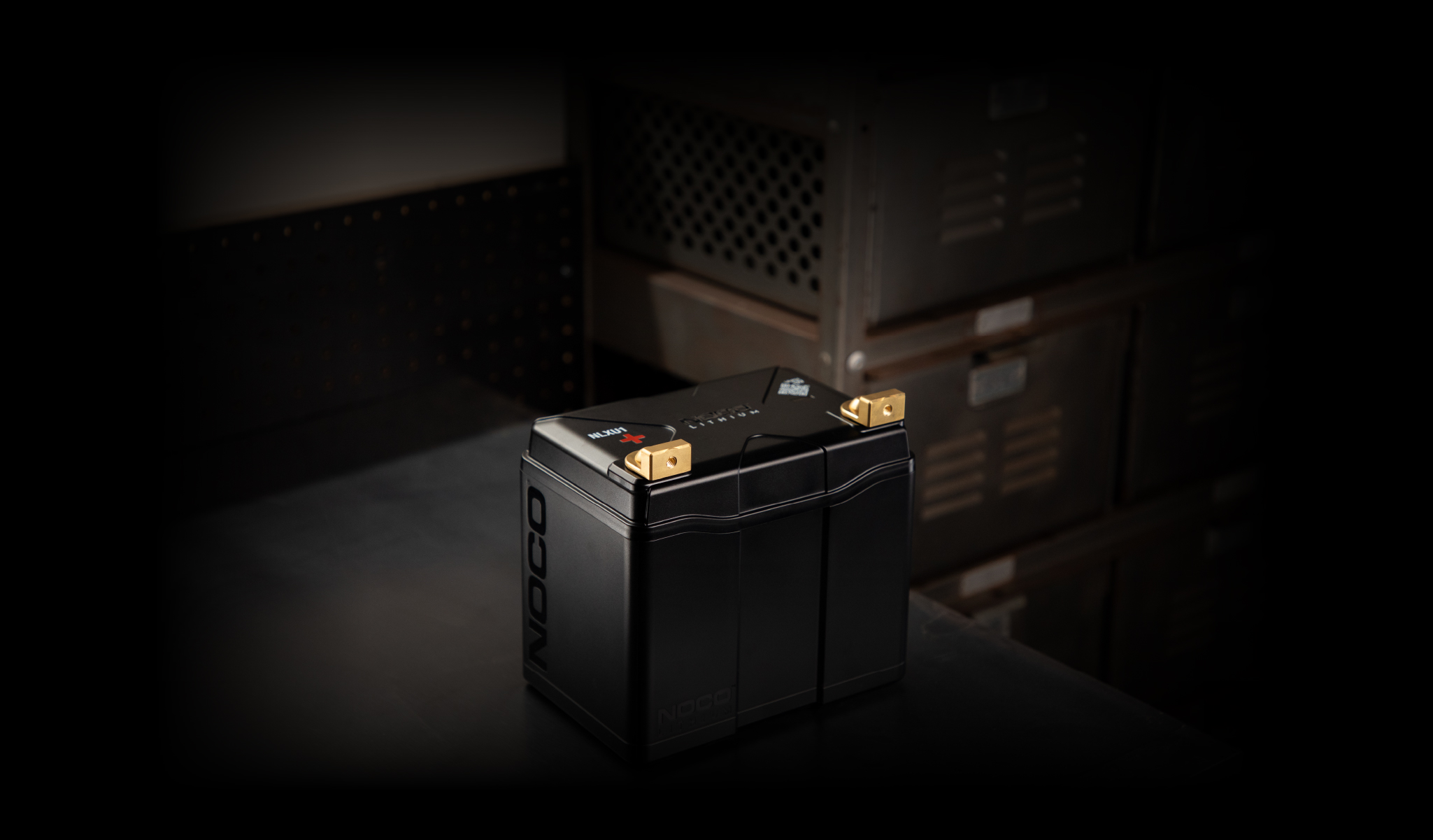

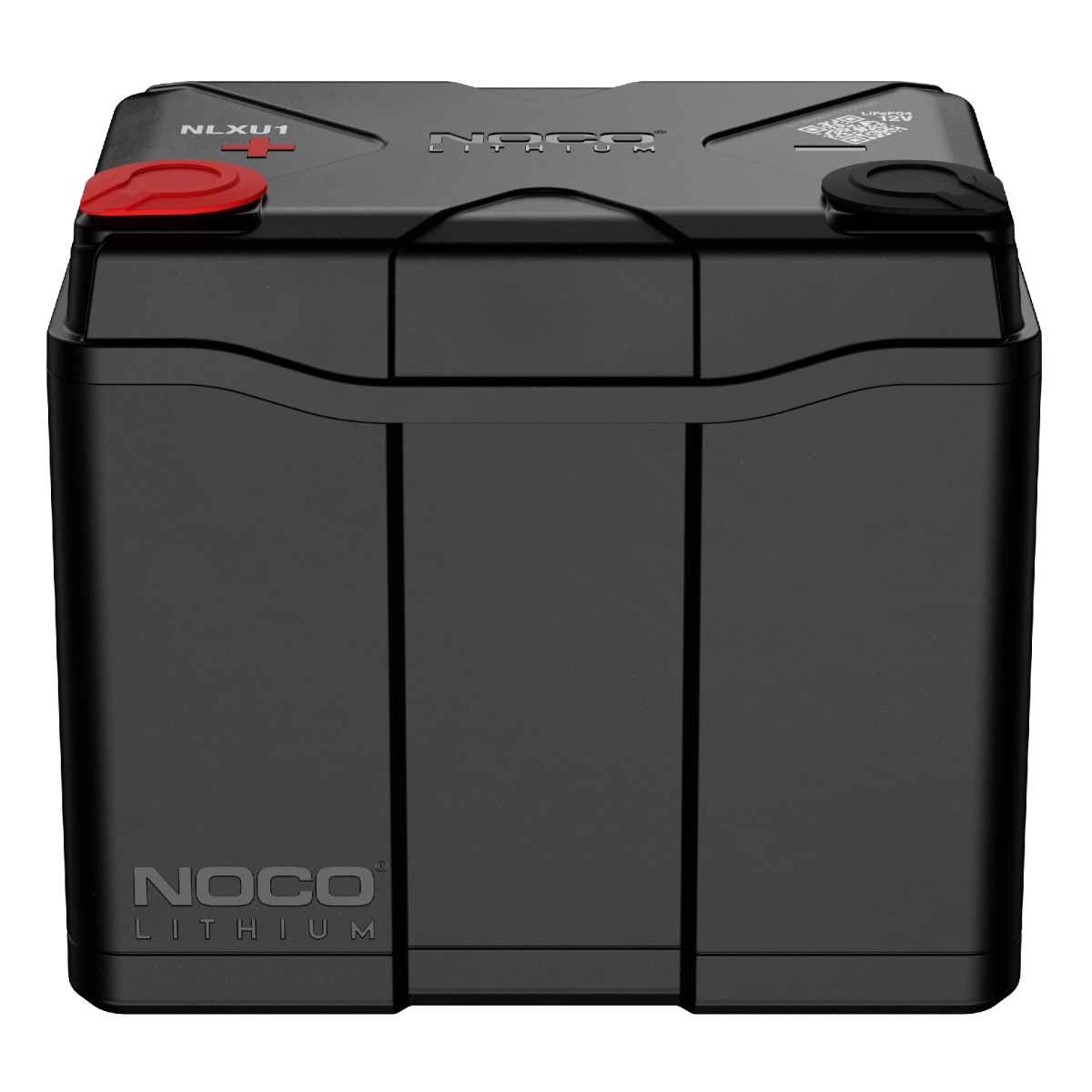

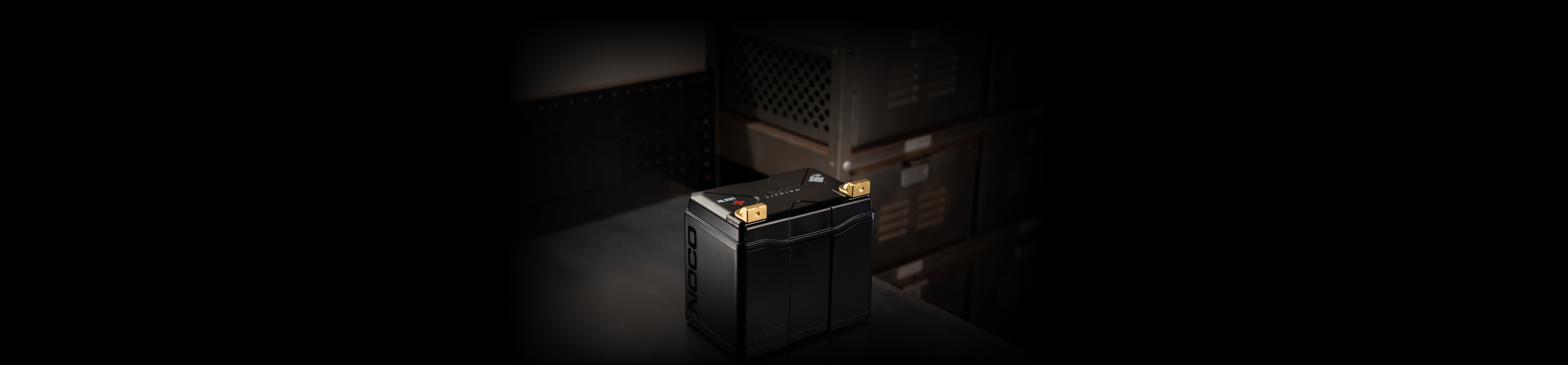

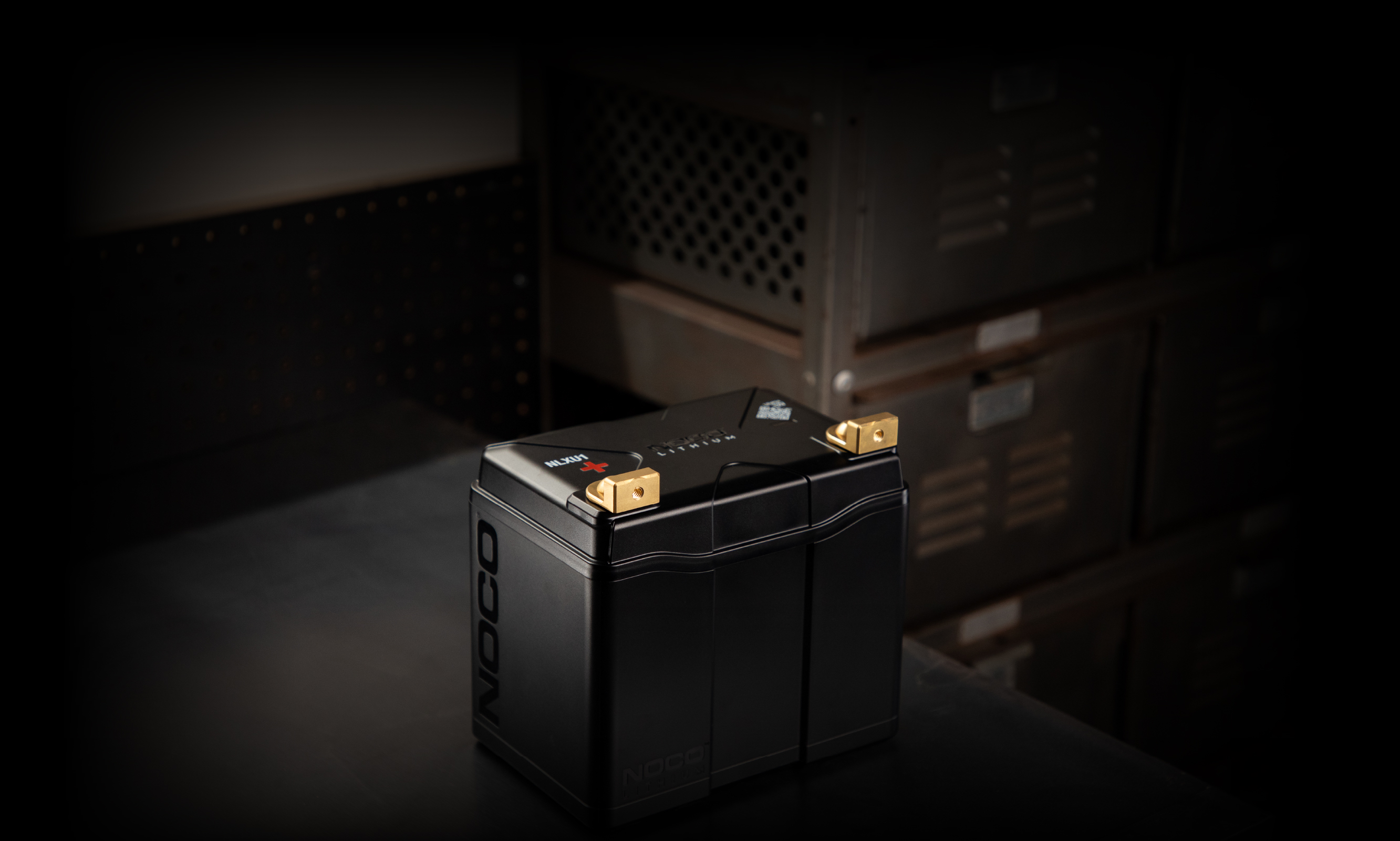

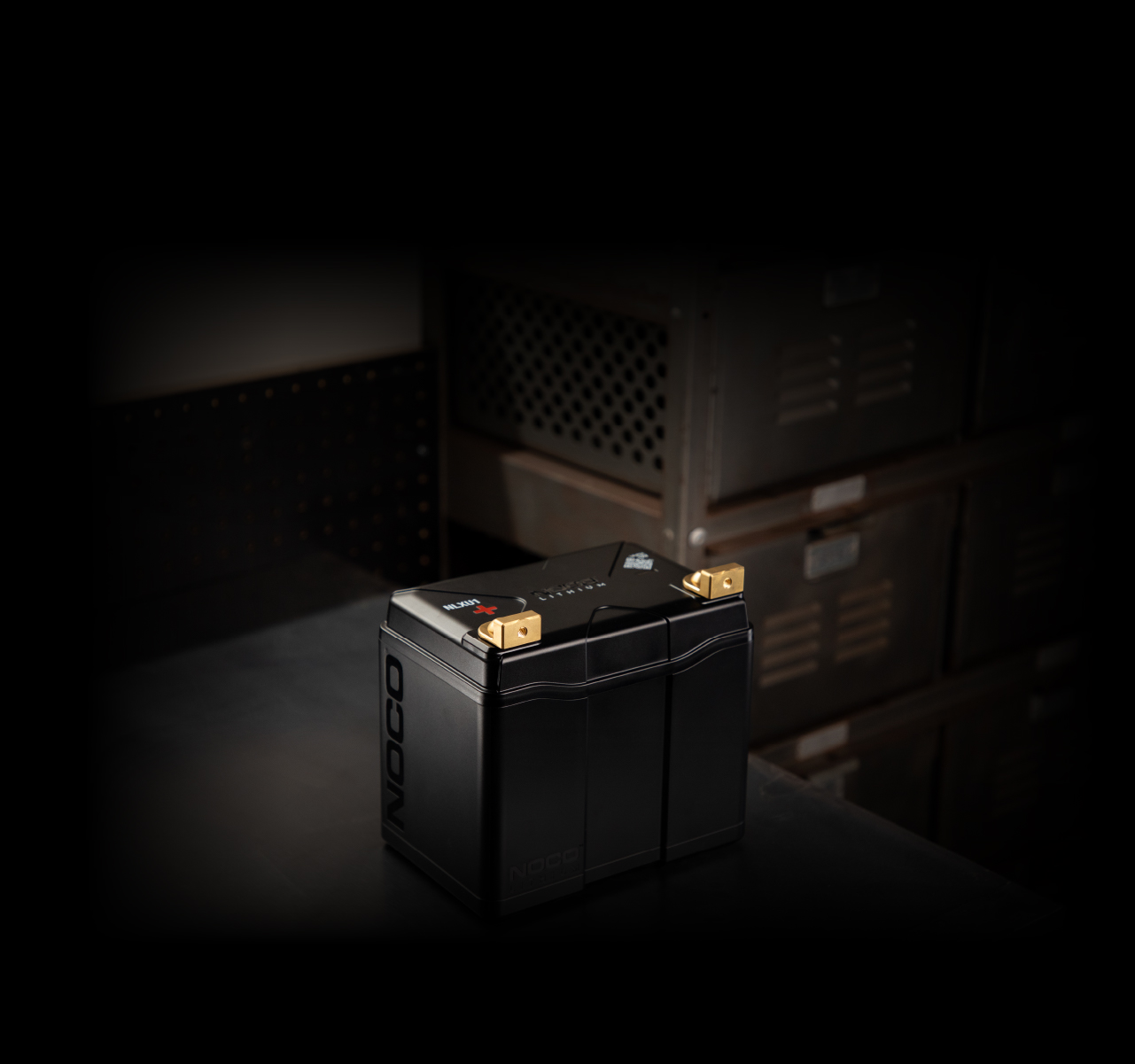

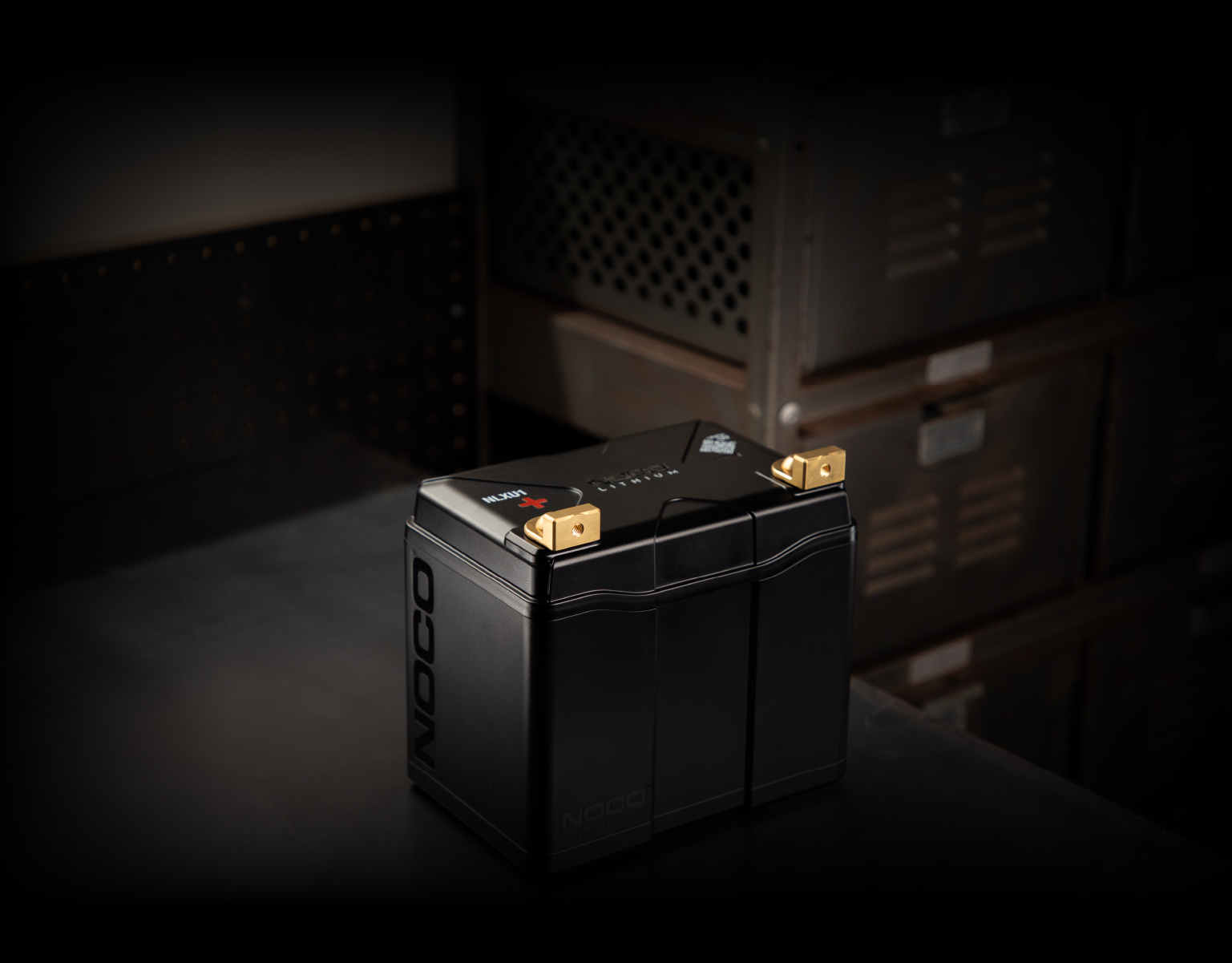

Overview of NOCO NLX Dual-Purpose Lithium Batteries
Introducing the NLX Series, dual-purpose lithium iron phosphate batteries that combine a starter battery's power with a deep-cycle battery's cycle life. It's better than lead-acid in almost every way.
Overview Of
INSTALLATION FEATURES.
The NLXU1 battery has a variety of terminal solutions and accessories (included). These options allow you to fully customize the battery to fit your application.

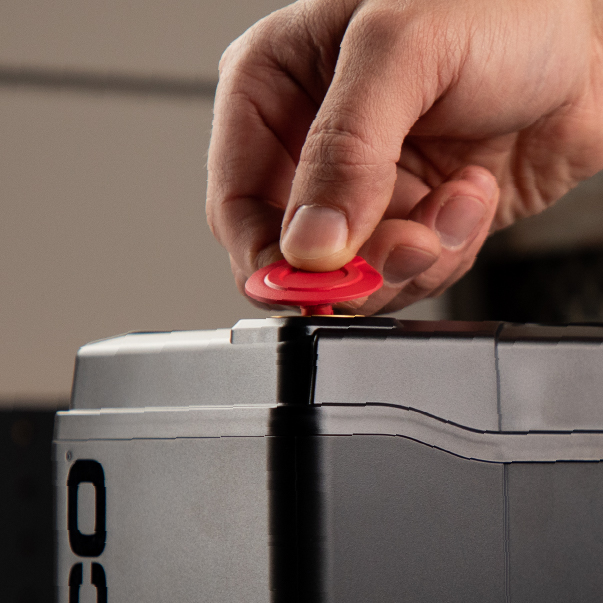

Terminal Covers.
Terminal covers are useful to for safely carrying or storing or your battery when not in use.

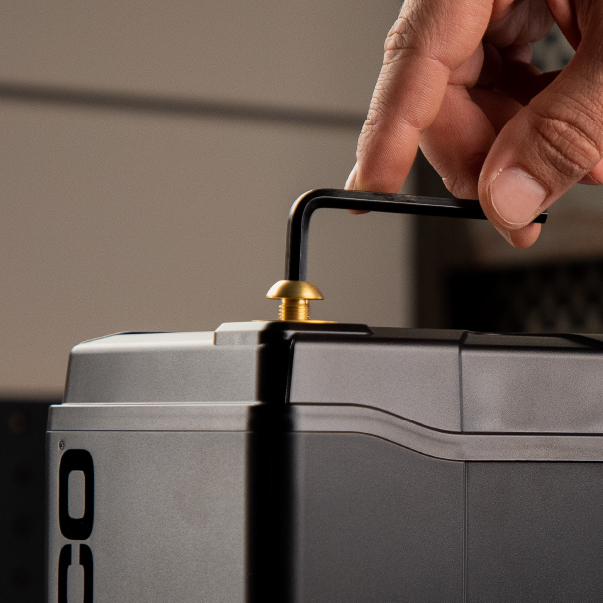

Terminal Bolts.
Use our 3/8” -24 x 9/16” bolts for mounting directly to the top of the battery.

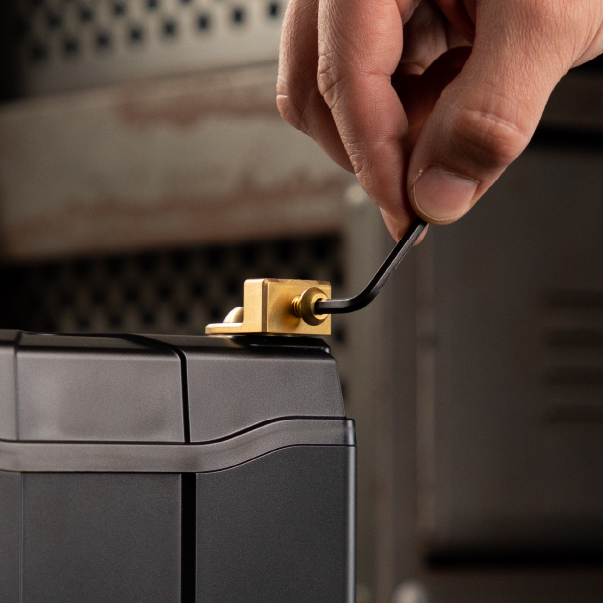

Mix N' Match.
Change the direction of the terminal connection with our custom Type X terminals. See below for installation tips.
Installing
Type X Terminals.
The NLX U1 comes with fully custom Type X Terminals which allow for multiple attachment points for connections, while also providing maximum conductivity.

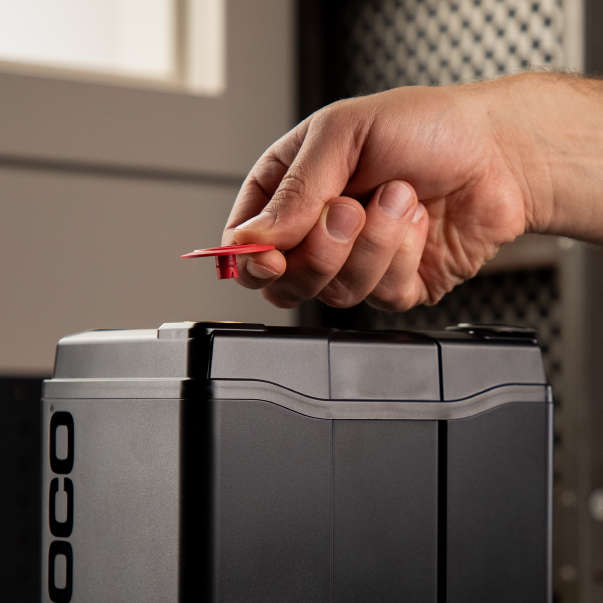

Step 01
Remove the terminal covers (included) to access the terminals underneath.

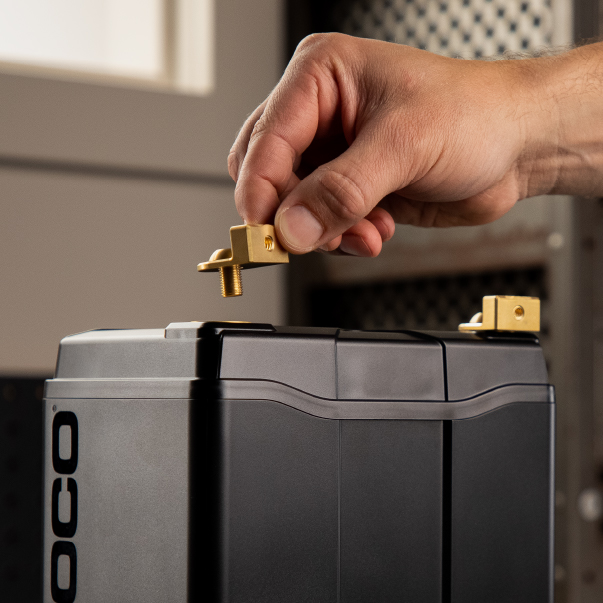

Step 02
Place a 3/8” -24 x 9/16” terminal bolt (included) through the flat portion of the Type X terminal (included). Line it up with the terminal.

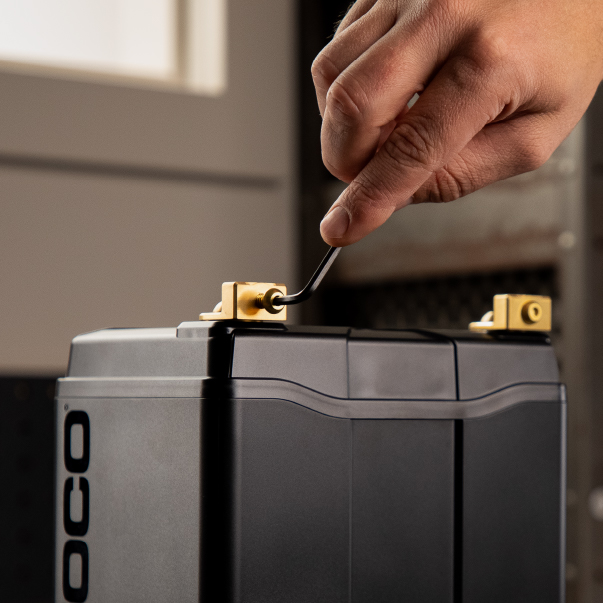

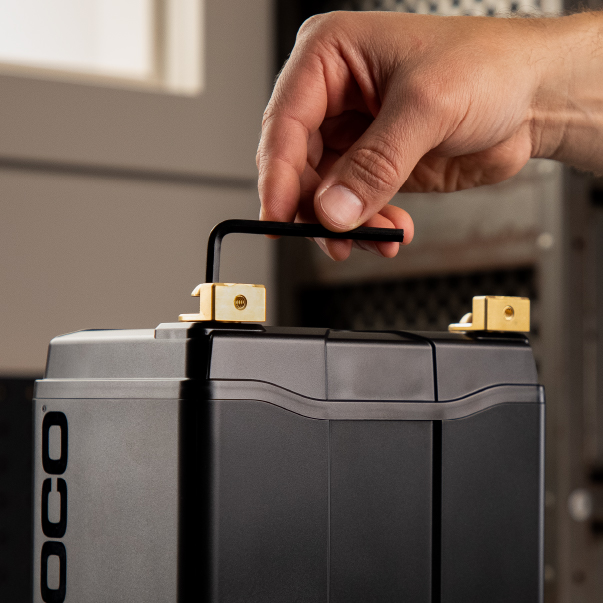

Step 03
Use a hex key (included) to screw the bolt into the terminal, attaching the Type X terminal in the process.
Step 04
Use the 1/4” - 20 x 7/16” terminal bolts as additional attachment points for a battery charger or for installing your battery into an application.
NLX DUAL-PURPOSE
5 YEAR WARRANTY.
All NOCO Lithium Dual-Purpose batteries come with a Limited 5-Year Warranty. Register your product after purchasing to qualify for the applicable warranty.
