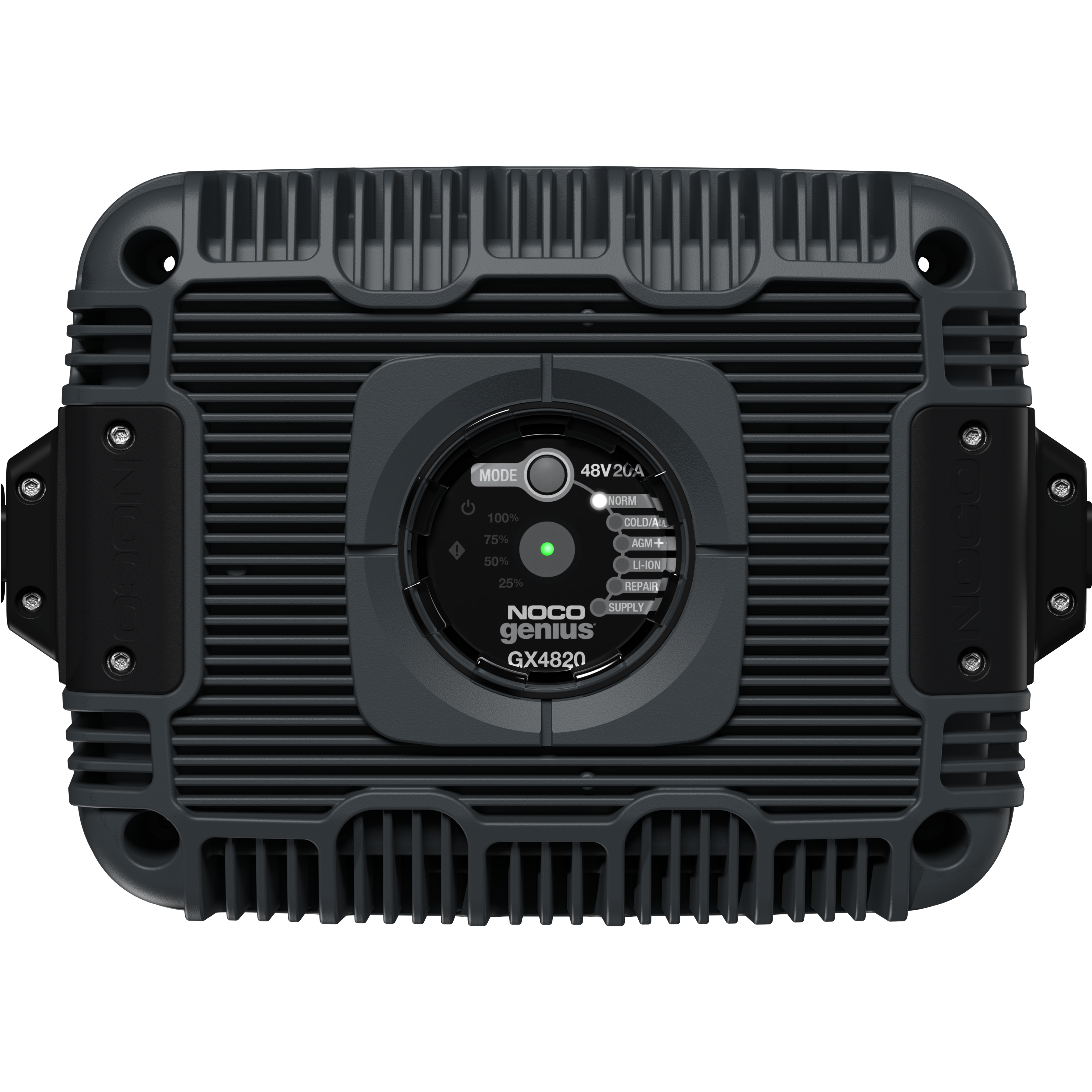

GX4820 Support

GX4820

SUPPORT.

Battery charging with intelligence.

Advanced diagnostics.

Smart industrial battery chargers can be frustrating. They do not simply begin charging upon detecting a weak or damaged battery. Sometimes they will begin force charging if they detect an unsafe or abnormal charging condition. But prevention is just one aspect. Understanding and finding a solution is just as critical. Welcome to Advanced Diagnostics, which analyzes battery feedback and display a particular error pattern if a problem is detected. Each flash pattern tells you what's wrong, and how to quickly fix it.

Single Flash:

Battery will not hold a charge and should be checked by a professional.

Double Flash:

Possible battery short, and should be verified by a professional.

Triple Flash:

Battery voltage is too high for the selected charge mode. Double check the battery matches the charge mode.

Error LED Solid Red:

Reverse polarity. Reverse the connections to the battery.

Standby LED Solid Orange:

Battery voltage is too low for the battery charger to detect the battery.

GENIUS GX

Features.

Inhibit

The inhibit function prevents electric vehicles from moving while charging, which prevents accidental damage to the connected cabling system. The inhibit port contains a 20A relay that closes when connected to A/C power and disables the vehicle.

Supply Mode

Supply Mode converts the industrial battery charger into a constant current, constant voltage power supply for zero voltage charging for troubleshooting low voltage batteries or equalizing unbalanced battery system for longer battery life.

Repair Mode

Repair Mode is an advanced battery recovery tool used to remove sulfated batteries, and regain lost battery capacity. It uses a combination of high voltage and low current to melt down sulfation and return it to the active material again.

Ingress Protection

Industrial battery charger applications get exposed to some of the toughest, and most extreme operating environments. Whether an on-board or off-board application, these chargers are shock, vibration, water, dirt and dust proof and rated at IP66.
