UNDERSTANDING THE CHARGE LEDs
GX.
Charge LEDs indicate the connected battery(s) state-of-charge (SOC). See the diagram below:

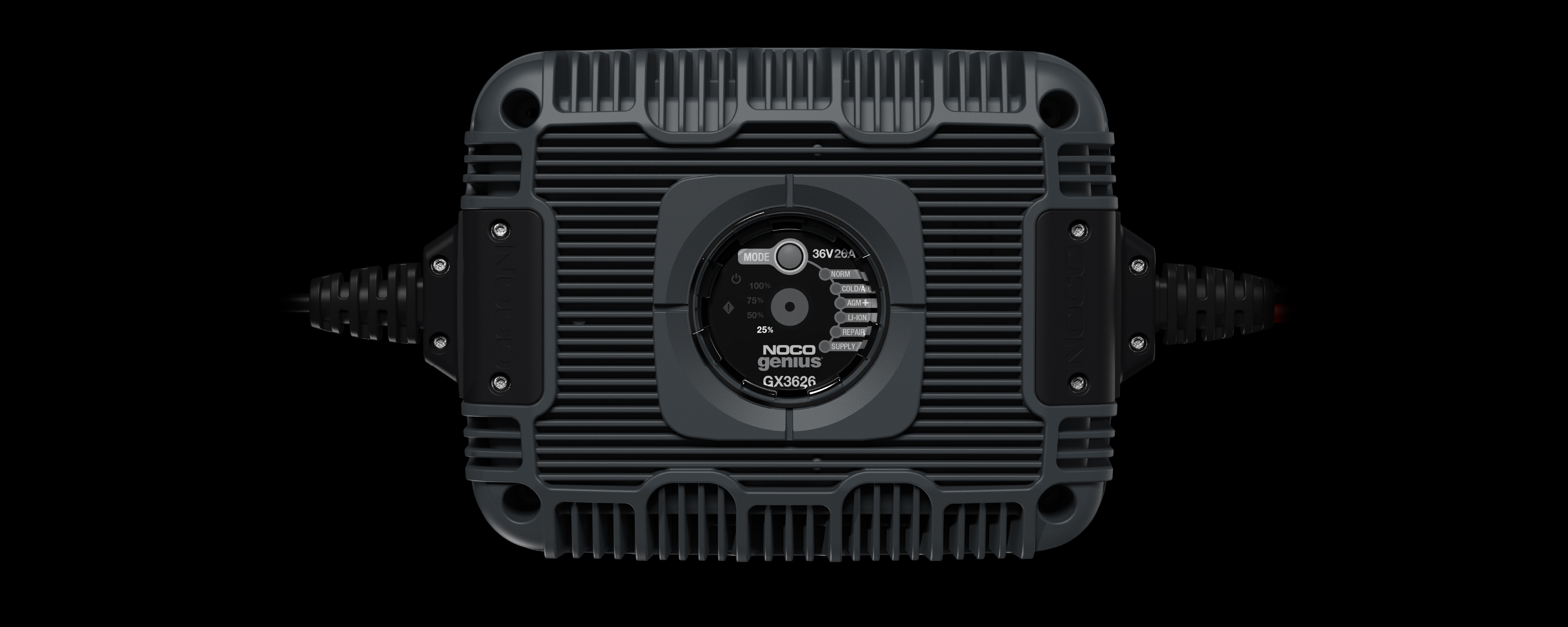

25% LED
The 25% Charge LED will be “on” when the battery is less than 25% fully charged. The RED charging LEDs will “spin” indicating the unit is charging.
50% LED
The 50% Charge LED will be “on” when the battery is less than 50% fully charged. The RED charging LEDs will “spin” indicating the unit is charging.
75% LED
The 75% Charge LED will be “on” when the battery is less than 75% fully charged. The RED charging LEDs will “spin” indicating the unit is charging.

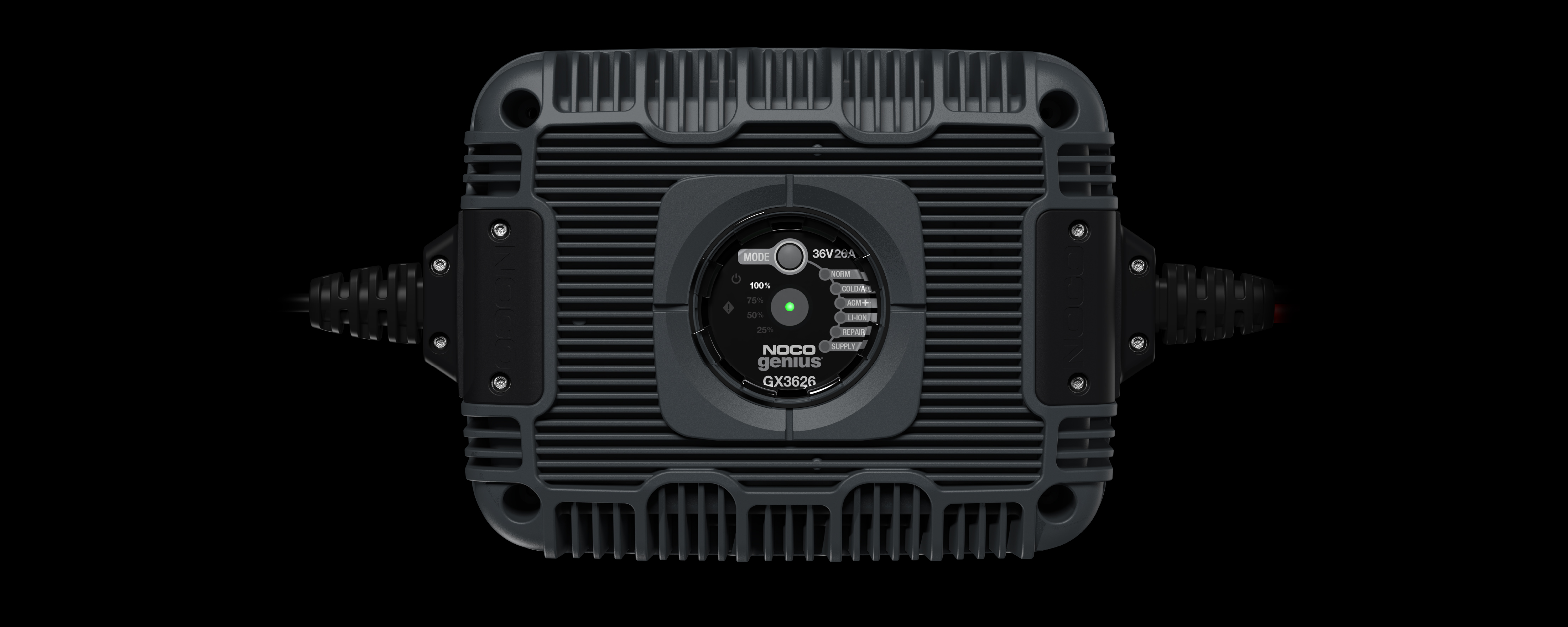

100% LED
The 100% Charge LED will be “on” when the battery is less than 100% fully charged. The GREEN LED will illuminate solid indicating the battery is fully charged.
