CONNECTING CUSTOM GOLF CART CABLES TO GX INDUSTRIAL CHARGERS.
GX.

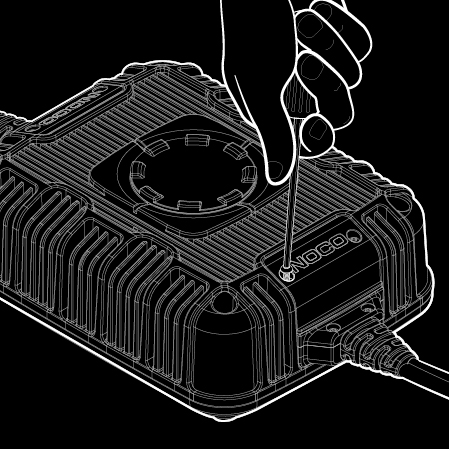

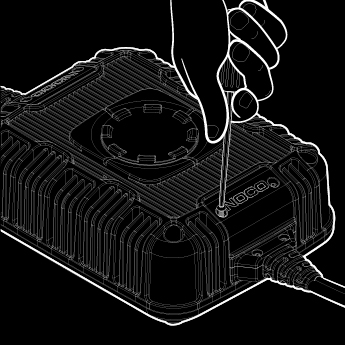

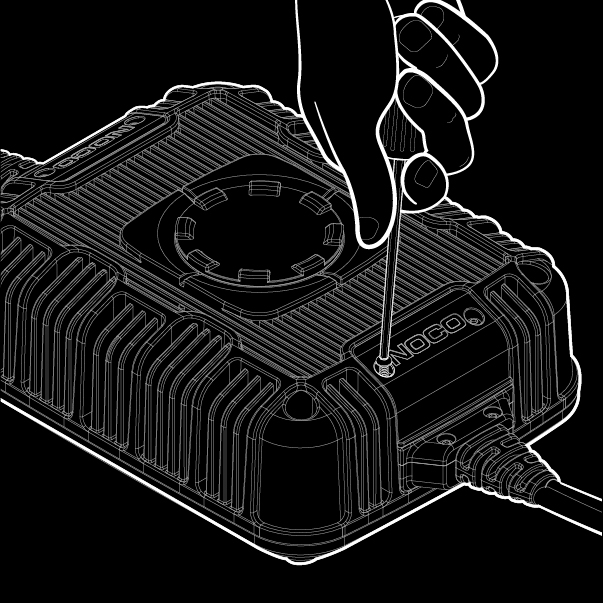

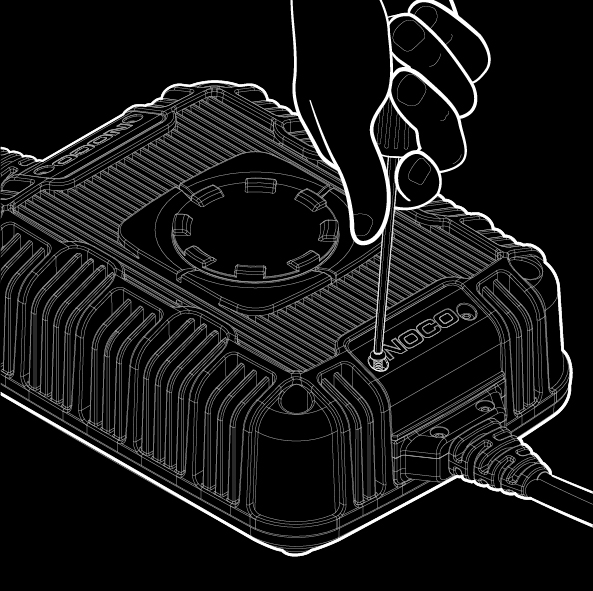

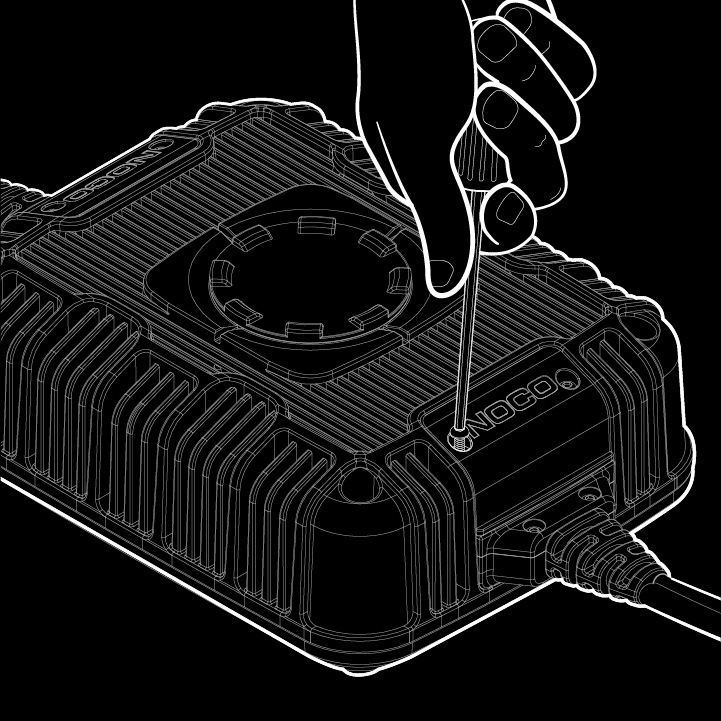

1. Remove Faceplate
Using an allen wrench, remove two bolts which are holding down the red faceplate.

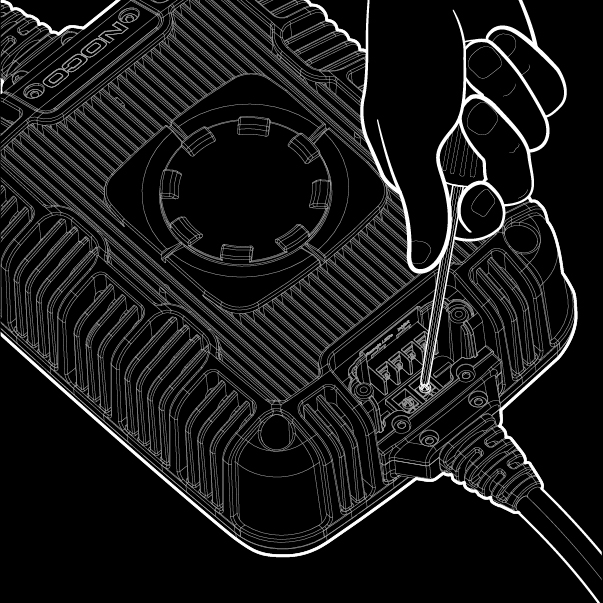

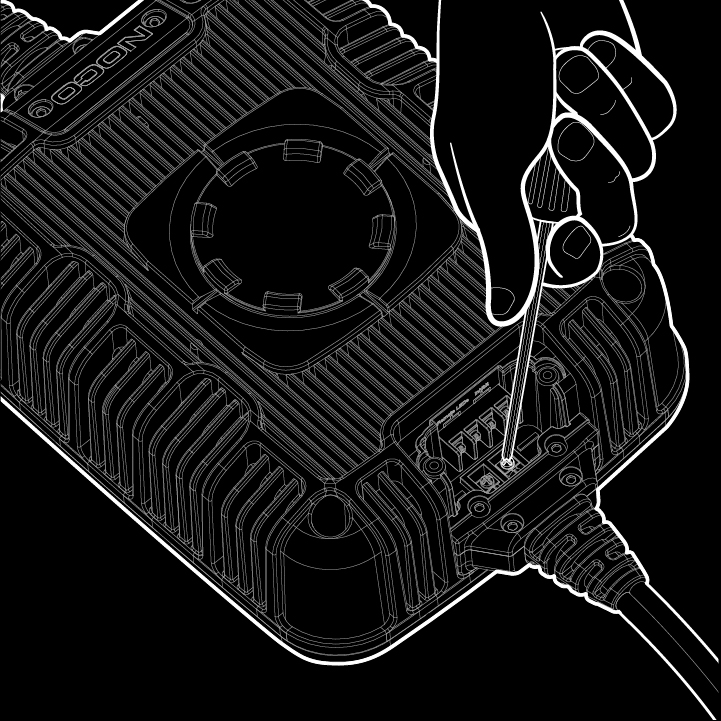

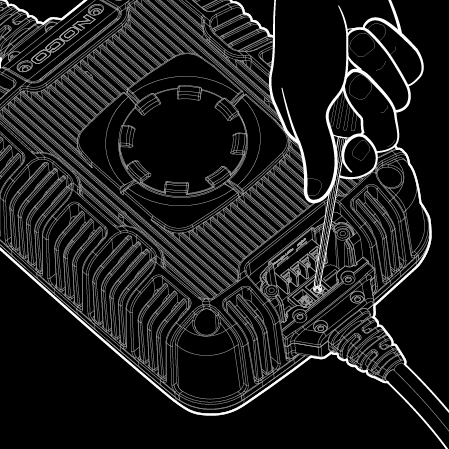

2. Unscrew Cable Wire Locks
Using a philips head screwdriver, remove the negative (-) and positive ( ) wires of the connected cable.

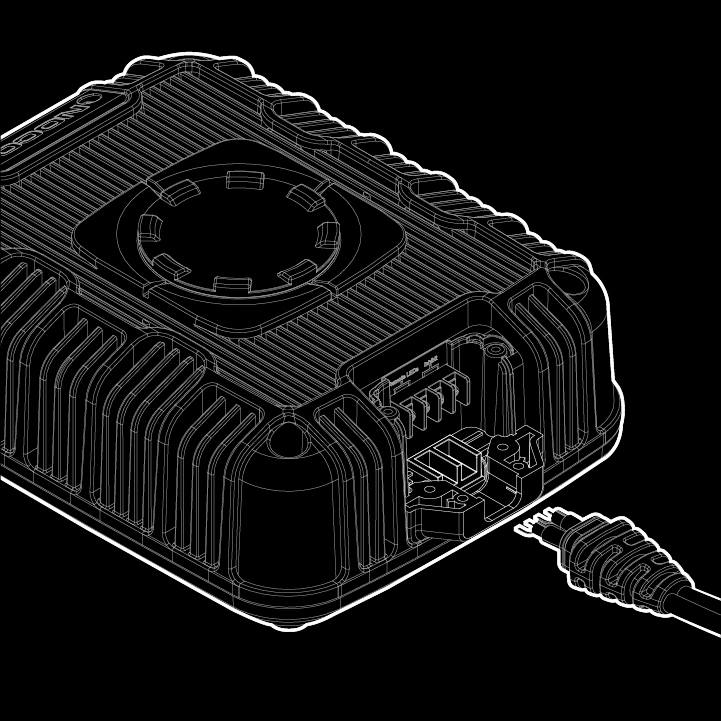

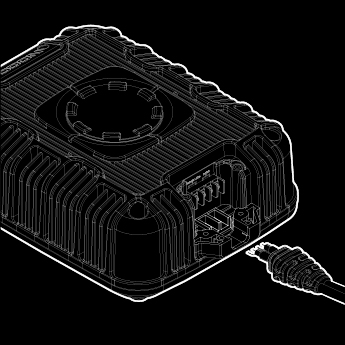

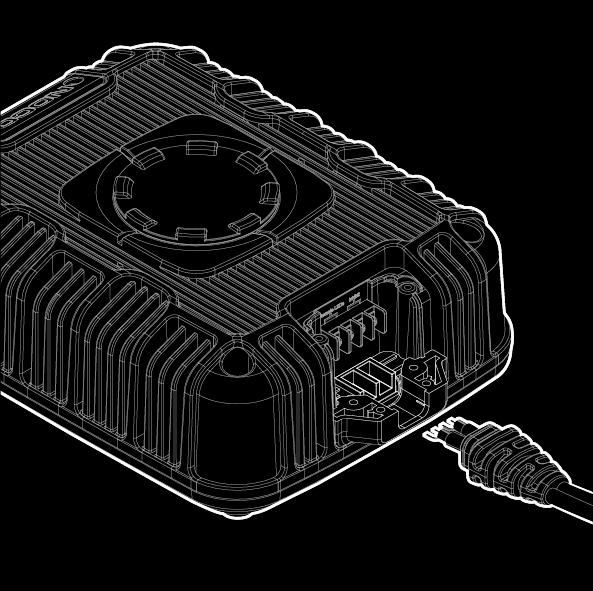

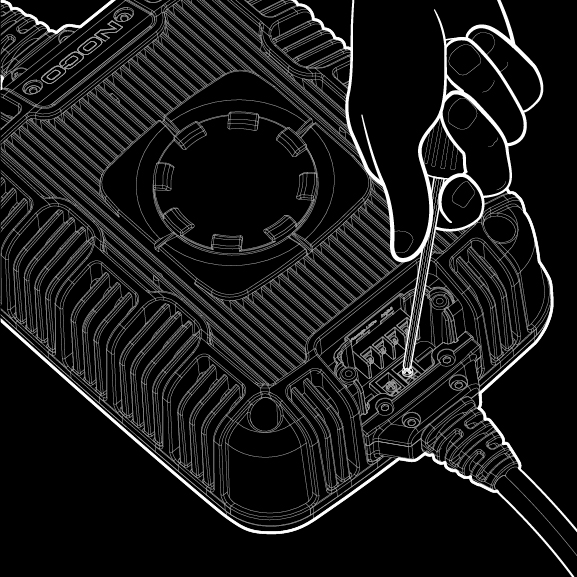

3. Remove Cable Lock
Using an allen wrench, remove four bolts which are securing the black cable lock.

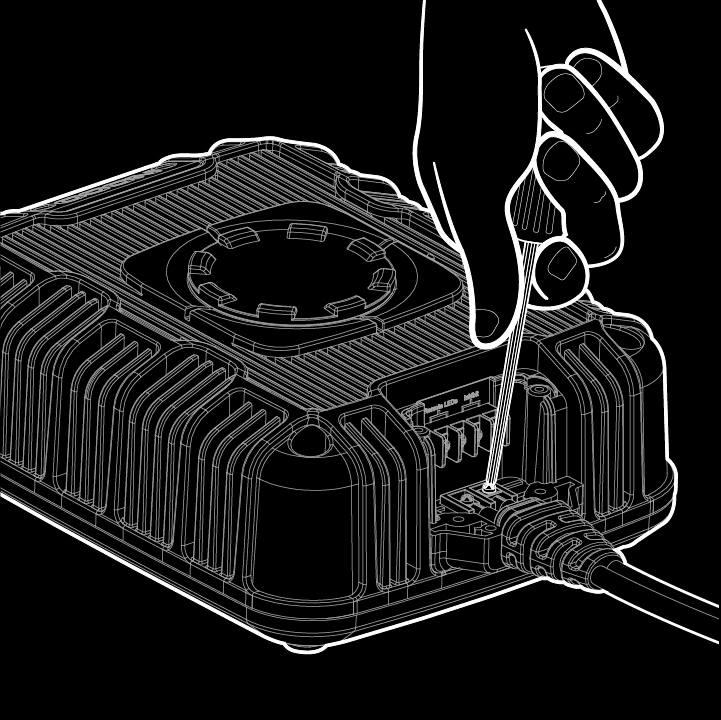

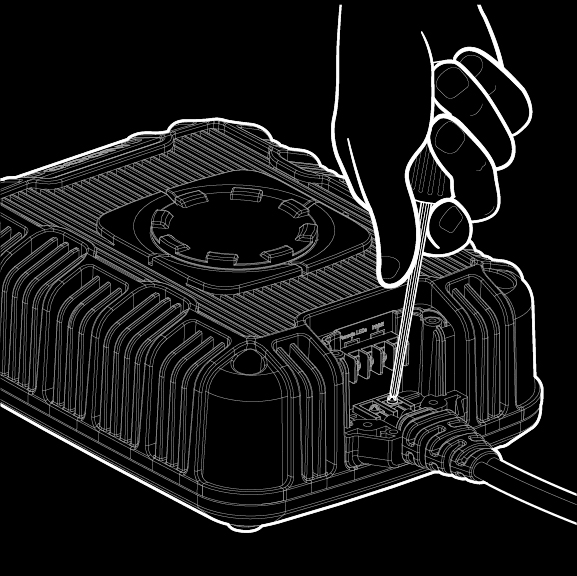

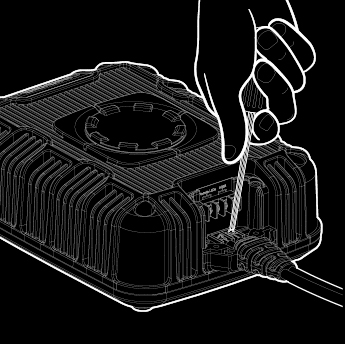

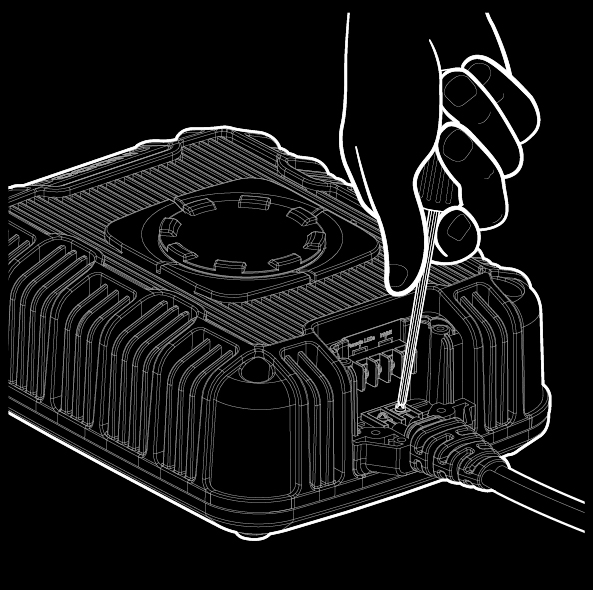

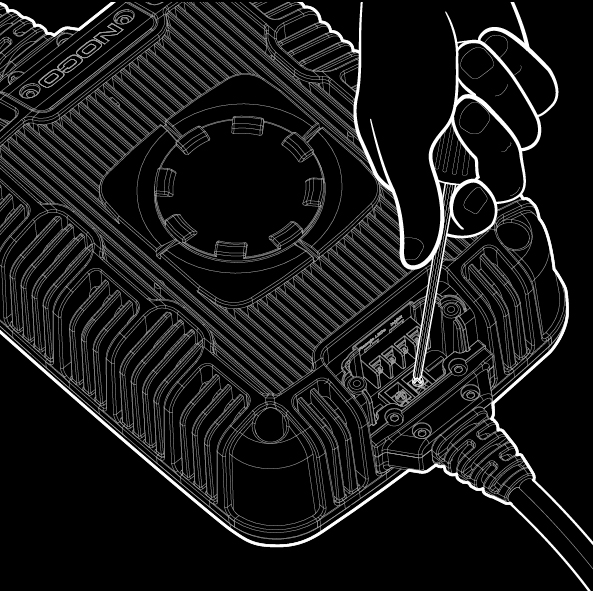

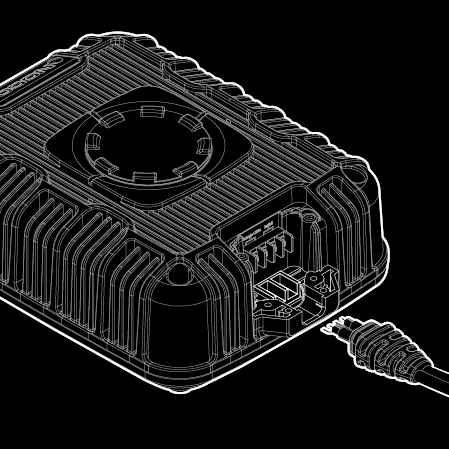

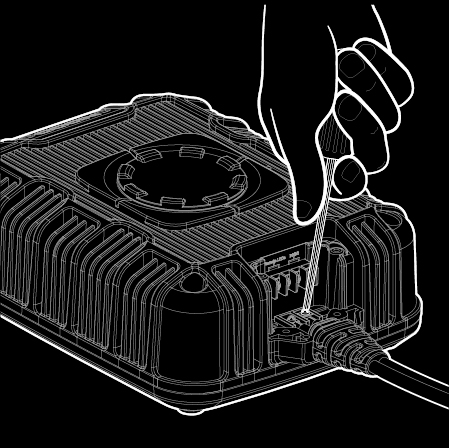

4. Secure Wires
Lock in the new cable using a philips head screwdriver. Be sure to connect the black wire to the negative (-) port, and the red wire to the positive ( ) port.

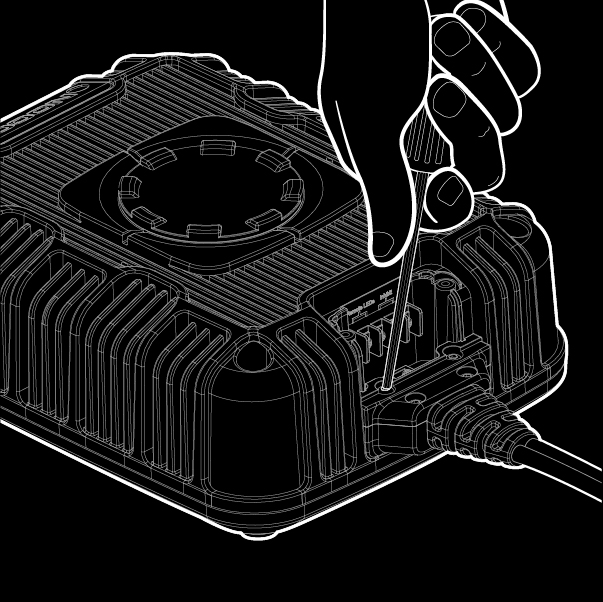

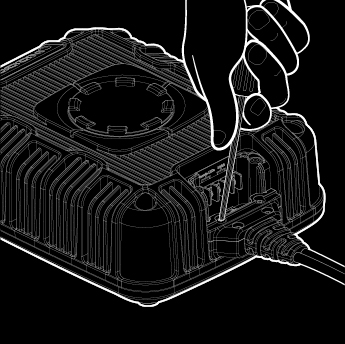

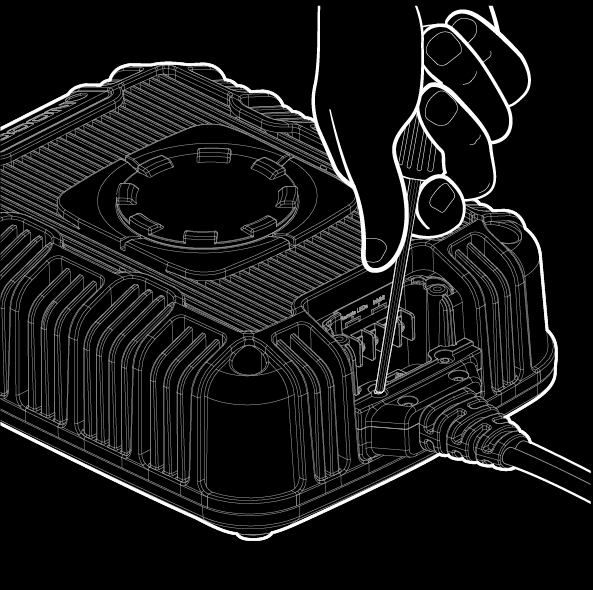

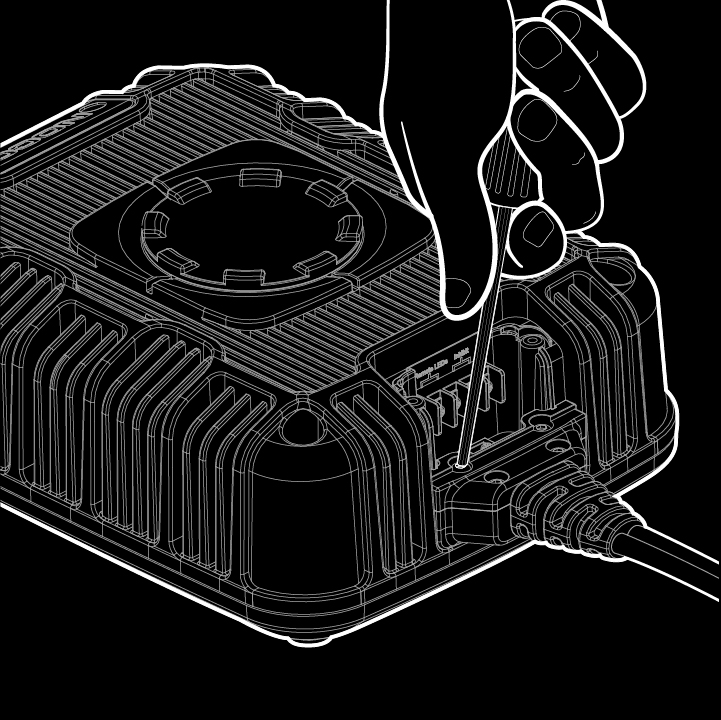

5. Lock In New Cable
Using an allen wrench, replace the four bolts which secure the black cable lock.

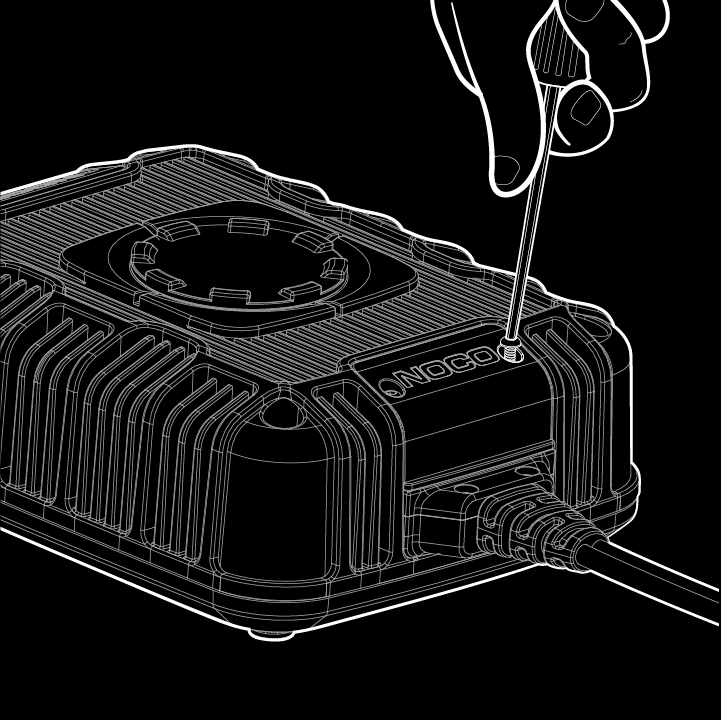

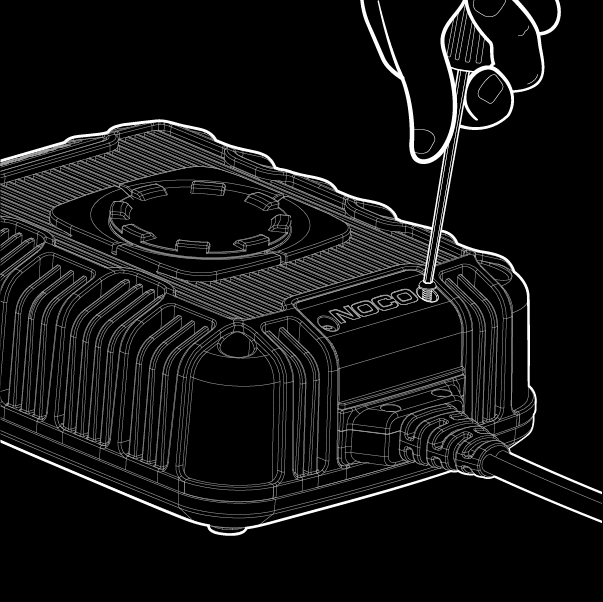

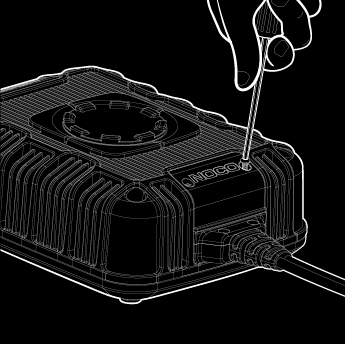

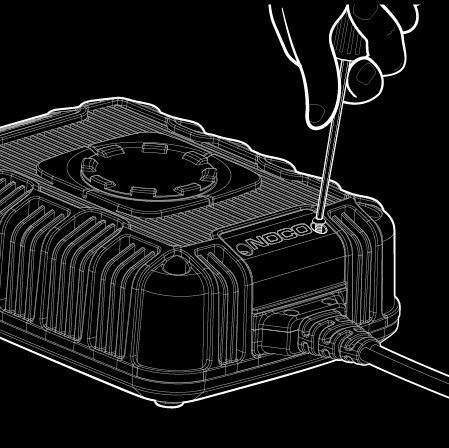

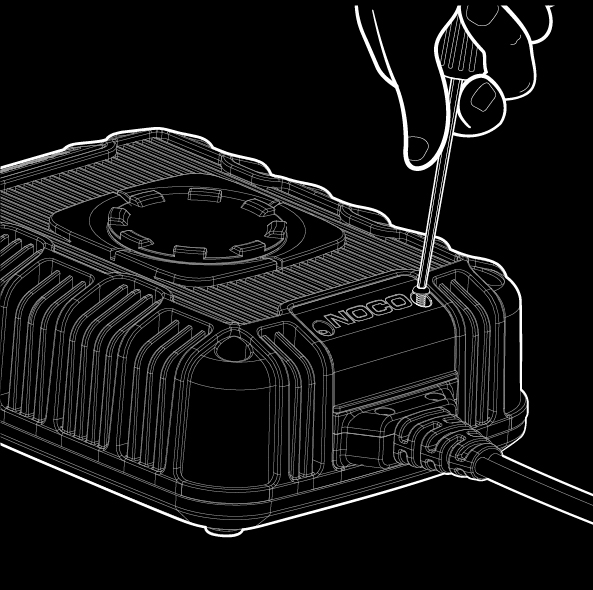

6. Replace Faceplate
Using an allen wrench, replace the two bolts which hold down the red faceplate.
