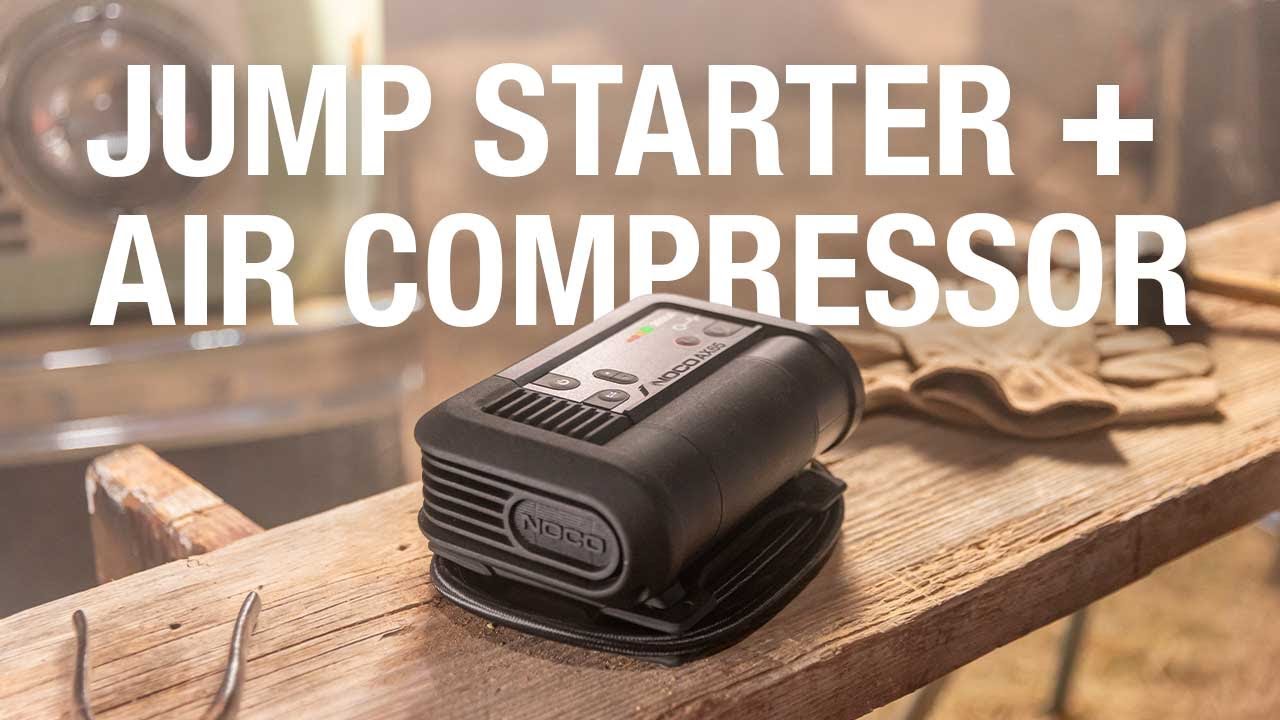

Overview of the NOCO Boost Air AX65
Introducing the new Boost Air AX65, an all-in-one 2000A Jump Starter and 100PSI Air Compressor.
How to jump start using your NOCO Boost Air AX65
Learn how to jump start using your NOCO Boost Air in a few simple steps.
How to inflate a tire using your NOCO Boost Air AX65
Learn how to inflate your tires using your NOCO Boost Air in a few simple steps.
How to use manual override on your NOCO Boost Air AX65
Learn how to use manual override on your NOCO Boost Air to begin jump starting a dead battery below 3-volts.
AX65
How To Jump Start.
Carefully read and understand the vehicle owner’s manual on specific precautions and recommended methods for jump starting the vehicle. The AX65 is for jump starting 12-volt lead-acid batteries only.

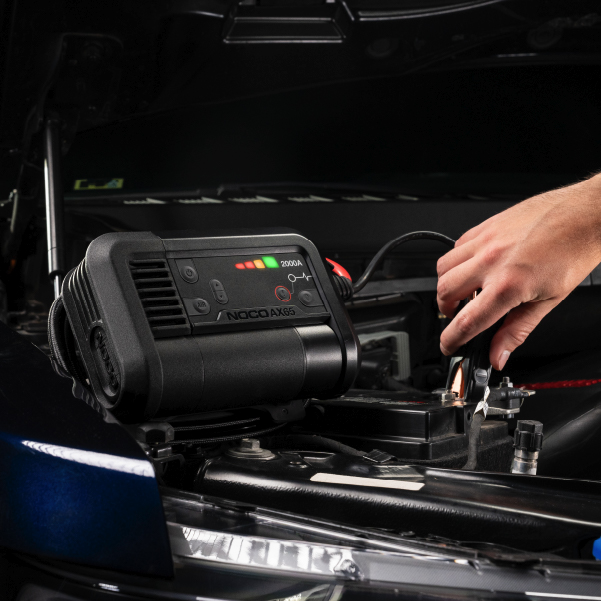

ATTACH CLAMPS.
Connect the battery clamps to the AX65 by connecting to the 12V OUT port. Then, connect the positive (red) battery clamp to the positive (POS,P,+) battery terminal and the negative (black) battery clamp to the negative (NEG,N,-) battery terminal or vehicle chassis.

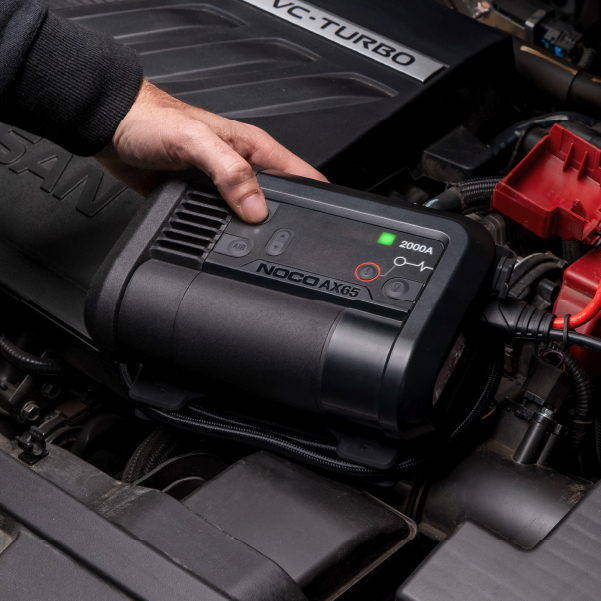

POWER ON.
Turn off vehicle’s power loads (headlights, radio, AC, etc.) before jump starting. Press the Power Button on AX65 to begin, and all LEDs will flash once. If properly connected to the battery, the white Boost LED will illuminate and battery charge LEDs will chase. 60-Second Timeout countdown will begin when battery is detected.

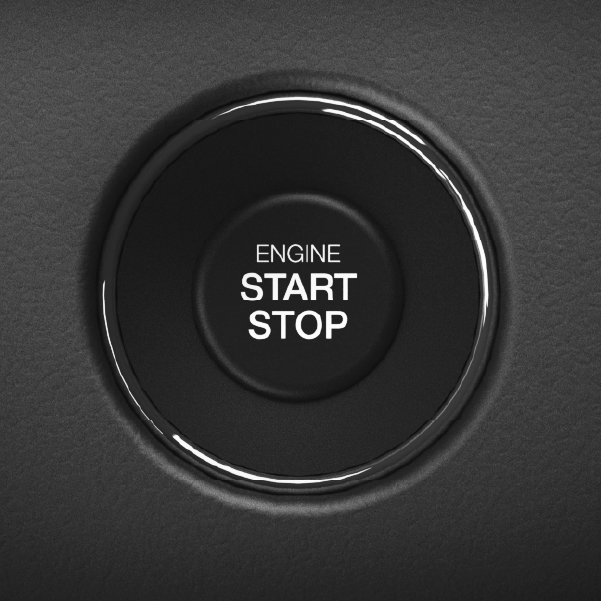

START VEHICLE.
Start vehicle. If vehicle does not start right away, wait 20-30 sec. and try again. After the 60-sec. timeout, the Product must be powered "OFF", then "ON", to initiate a new jump-start sequence. Do not attempt more than 5 consecutive jump starts within 15 min. period. Allow the AX65 to rest before attempting to jump start again.

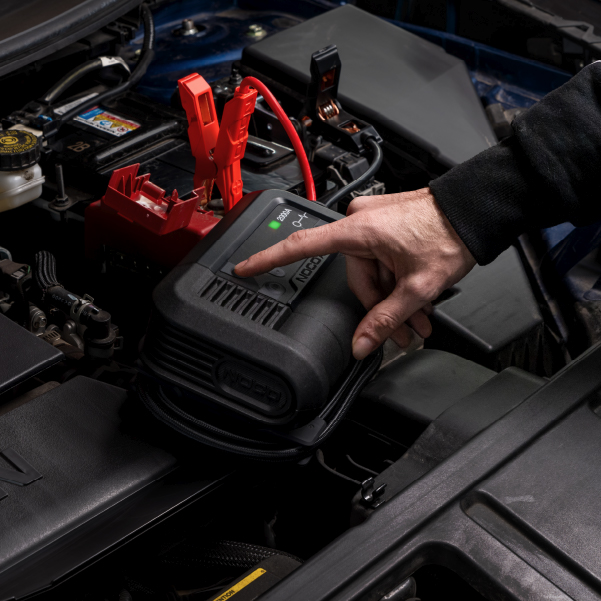

POWER OFF.
Once you have started your vehicle, power "OFF" the Product, disconnect the battery clamps, and remove the AX65.
AX65

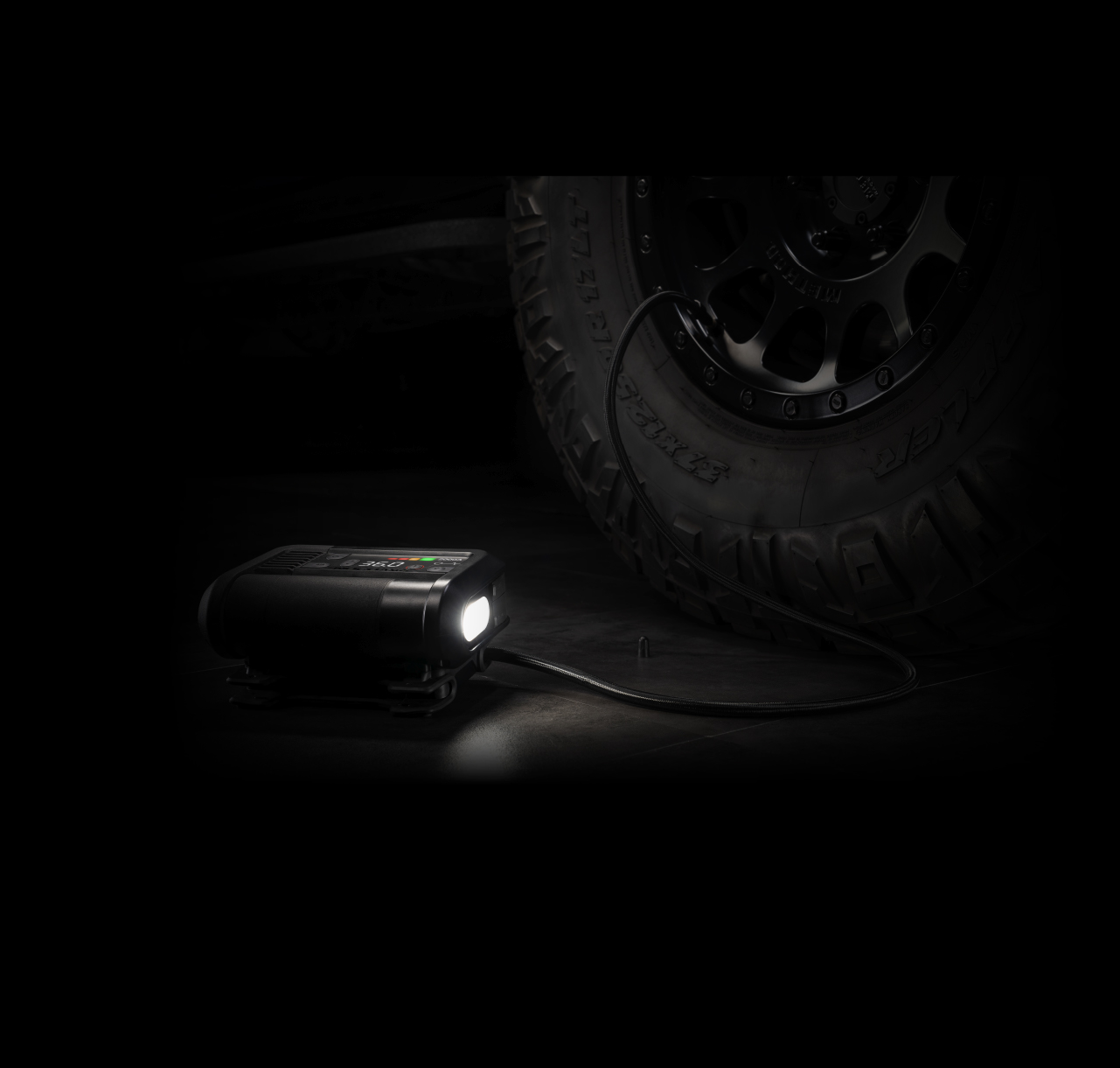

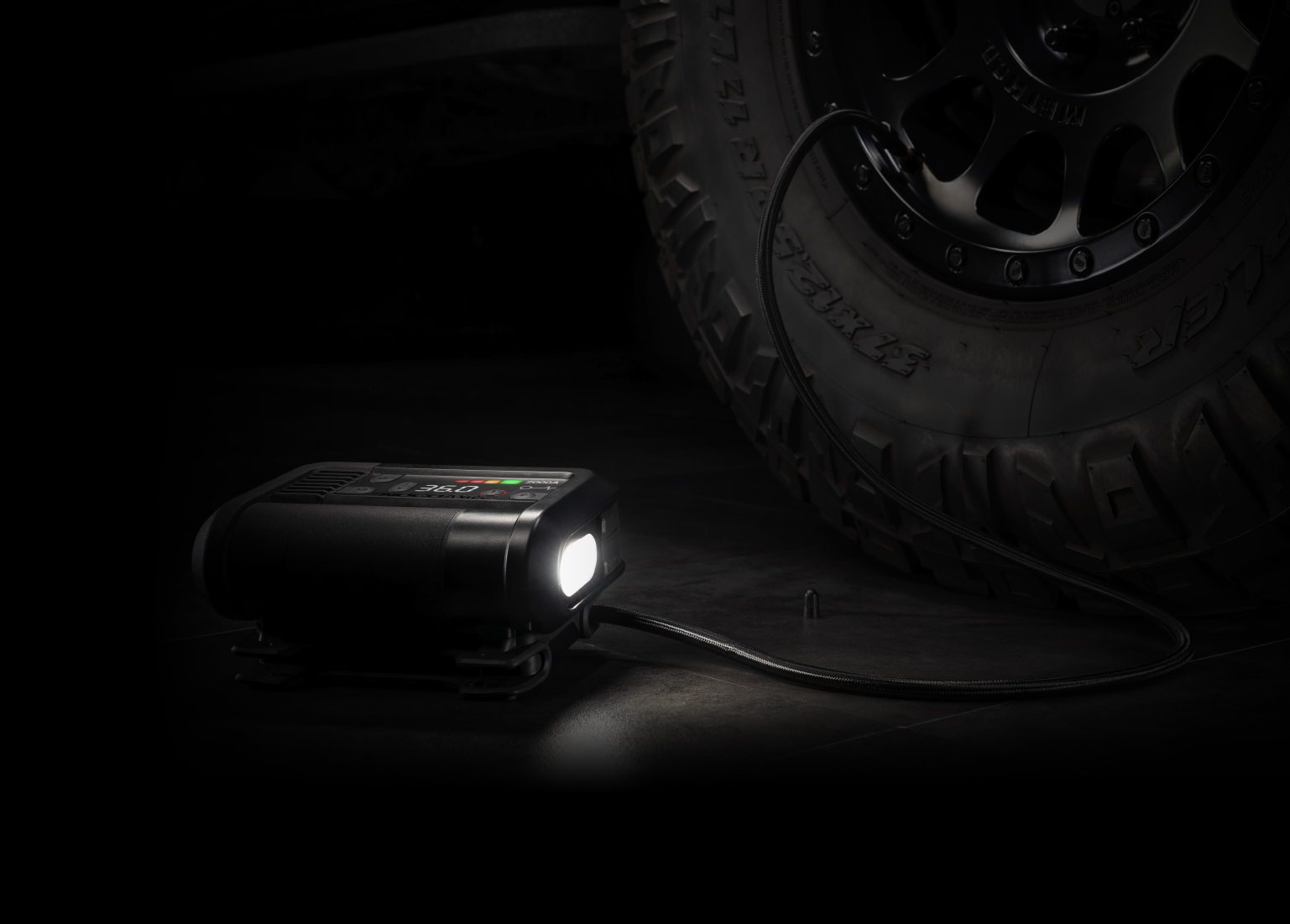

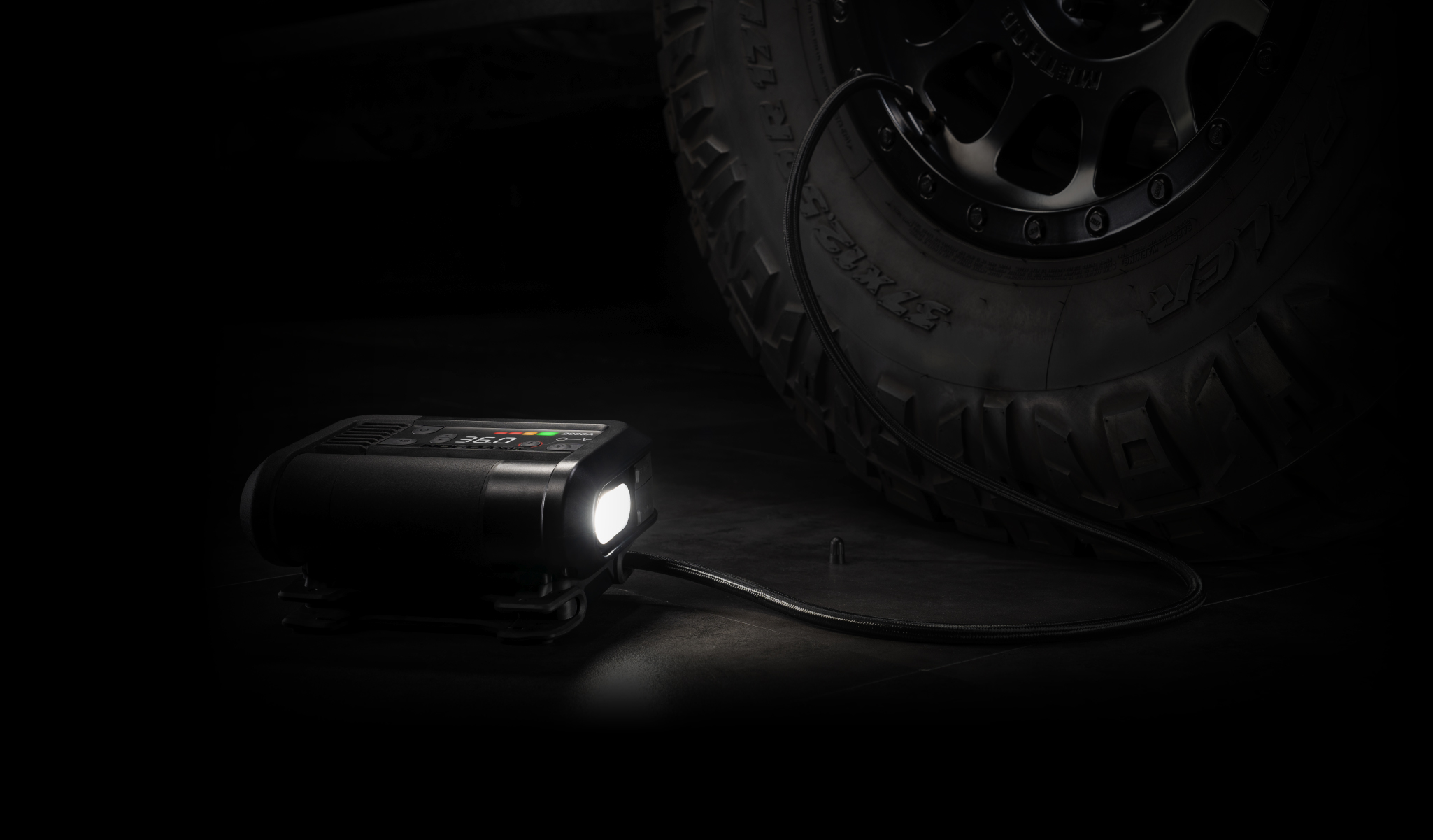

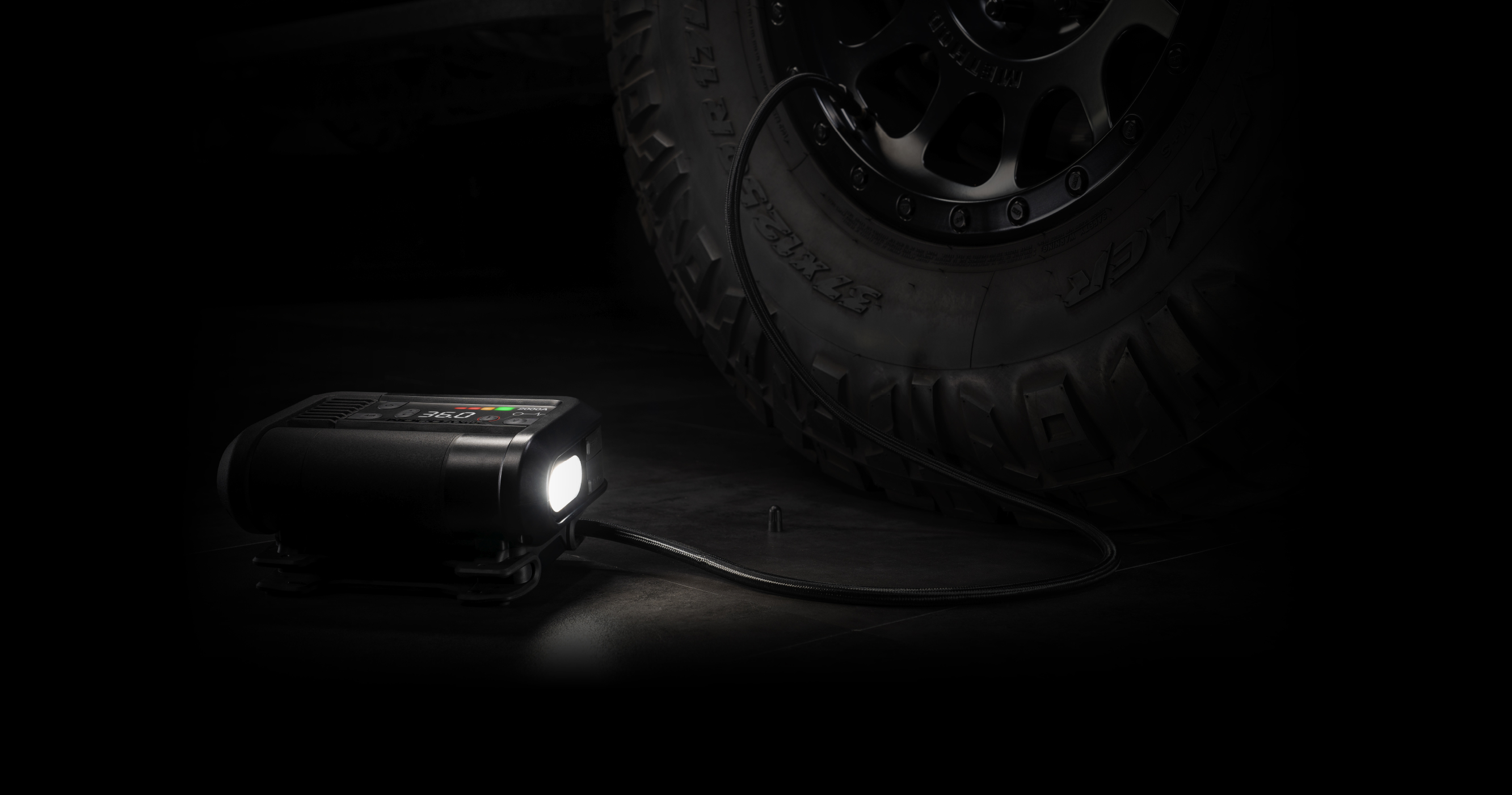

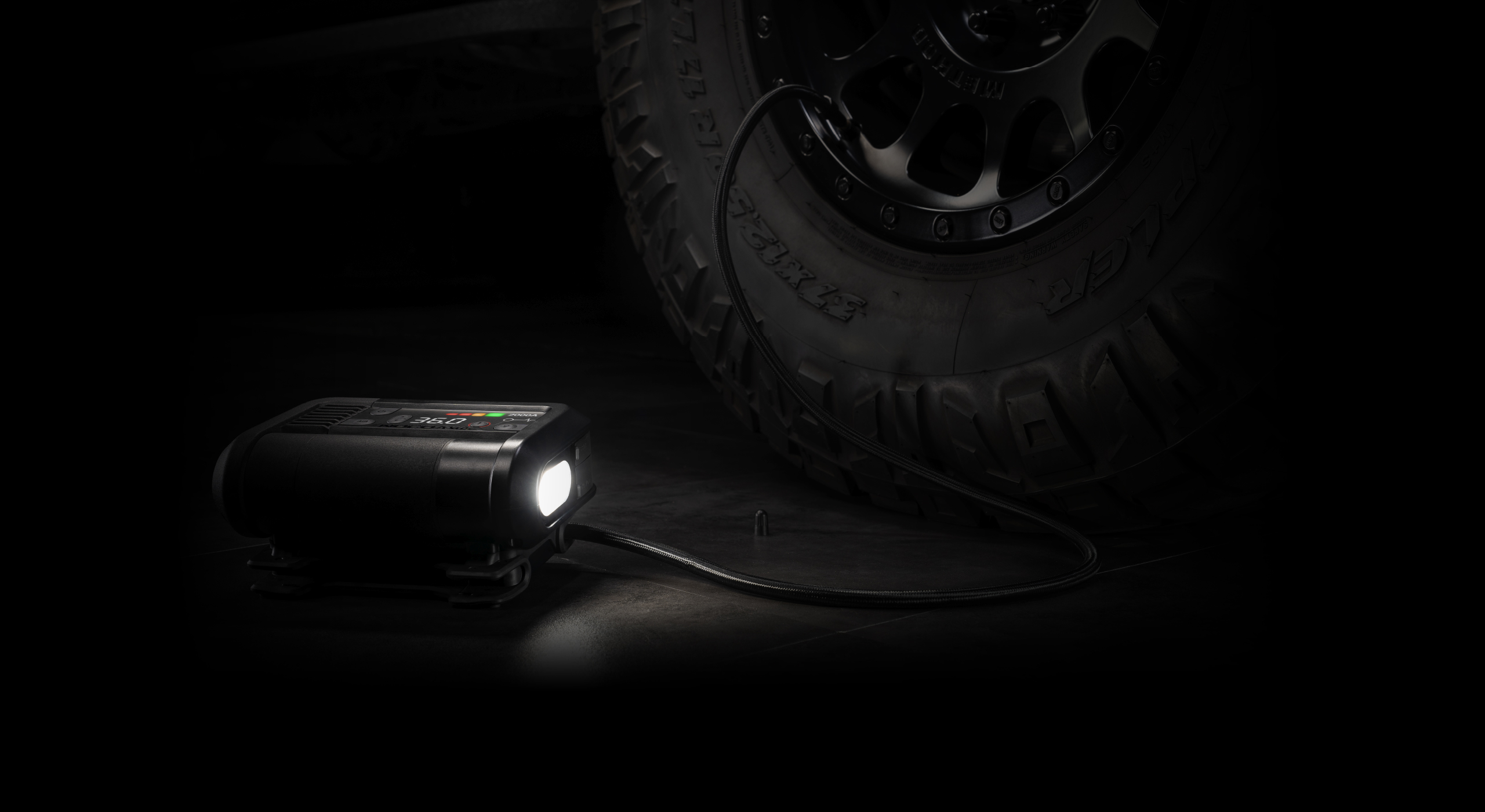

How To Inflate.
CONNECT THE AIR HOSE.
Connect the air hose on the AX65 to the tire before starting inflation. The air hose will screw onto the tire's air valve. No tools are necessary and should be hand tightened.
ENABLE AIR MODE.
Turn the Product "ON" by pressing the Power Button, if more than 3 PSI is detected, then the detected pressure will be displayed with the “SET” LED being "OFF". Press the Air Button to enable Air Mode. The Product will display the Set/Detected pressure.
SET PSI.
Change the Set Pressure to desired tire pressure level by pressing the ▼ or ▲ Buttons. Hold both ▼ and ▲ Buttons together at anytime to change the unit of pressure displayed (BAR, KPA, PSI).
INFLATE.
Press the Air Button again to begin tire inflation. During inflation the compressor may turn "ON" and "OFF" (Dynamic Dwell) as it gets closer to the desired set point. Inflation will continue until the Set Pressure has been reached.
FAQ
Boost Air
Choosing Boost Air
How large of an engine can Boost Air jump start?
AX65 For gasoline engines up to 8.0L and diesel engines up to 6.0L. How to Jump Start using AX65
What is the maximum airflow of Boost Air?
AX65 67 SLPM at 0 PSI
What is the internal battery capacity of Boost Air?
AX65

Capacity: 2150mAh


Watt Hours: 31.8 Watt-Hour Lithium-Ion

How long does Boost Air take to recharge?
AX65

USB-C Charging
4 hours at 10W

Fast Charge
0.8 hours at 60W

What is the maximum air pressure Boost Air can reach?
The AX65 can reach a maximum pressure of 100 PSI (6.89 bar or 689.48 kPa), suitable for inflating tires, sports equipment, and more.
How long does it take to inflate a tire with AX65?

The AX65 can inflate a 205-65R16 95H tire from 0 to 40 PSI in approximately 2 minutes.

Can Boost Air recharge my smartphone?

Boost Air can recharge any device that uses USB-C. This includes all generations of smartphones on the market, as well as HD action cameras, tablets, music players, headphones, earbuds, wireless speakers and more.

Warranties & Registrations
Where can I obtain the user manual for Boost Air?
AX65 User Guide
How long is the warranty on Boost Air?

Boost Air AX65 has a one-year limited warranty. Visit our Support Page to learn more about Warranty or find the User Guide to your specific model.

Features
What is the starting current on Boost Air?
AX65 2,000 Amps (Peak)
What types of batteries can Boost Air jump?

NOCO Boost Air can only jump start 12V lead acid batteries. This includes wet, gel, maintenance free, enhanced flooded battery, and absorbent glass mat batteries.

How long does Boost Air hold a charge?

Boost Air can hold 70% of its rated capacity for up to one year. For optimal performance, we recommend charging the device at least every 4-6 months, after the initial charge.

What is the lumen rating of the LED flashlight?
AX65 100 Lumen LED Flashlight
What flashlight modes are available?

The flashlight has 7 modes: 100%, 50%, 10%, SOS, blink, strobe, and off.

What is the USB port ratings on Boost Air?
USB-C (in): 5V 1.5A/9V 3A/12V 3A/15V 3A/20V 3A
USB-C (Out): 5V 3A/9V 3A/12V 3A/15V 3A/20V 3A
How long is the USB-C charging cable?

The provided USB-C cable is 24" (61 cm) in length. Boost Air charges with a standard USB-C port, so if a longer or shorter cable is preferred then the provided cable can be replaced with any compatible USB-C cable.

What devices can Boost Air recharge?

Boost Air can recharge any device that uses USB-C. This includes all generations of smartphones on the market, as well as HD action cameras, tablets, music players, headphones, earbuds, wireless speakers and more.

Is Boost Air waterproof?

The AX65 has an overall IP55 rating which makes it durable to environments with moderate dust and water exposure. However, AX65 is not fully waterproof or dust-tight, and should not be submerged in water or exposed to heavy dust for extended periods. To maintain the longevity of the product, refer to our storage methods as seen in the Care Tips below.

What is the IP rating of Boost Air?
AX65 IP65 (Electronics)
How heavy is Boost Air?
AX65 6.95lb (3.15kg)
Can I use Boost Air device on my hybrid vehicle?

The NOCO Boost Air can be used to jump-start the 12V lead acid starting battery in the vehicle and to inflate its tires. However, the AX65 must not be connected to any other type of batteries, including the high-voltage battery in hybrid vehicles.

Is Boost Air compatible with 220V outlets?

Yes, Boost Air is USB-C rechargeable, independent of your country’s electrical standards (e.g., 120V or 220V). It can be charged using any good-quality AC to USB-C adapter, 12V to USB-C adapter, or USB-C-compatible power outlet, including those in vehicles.

Can Boost Air jump start small vehicles?

Yes. Boost Air can jump start any vehicle with a 12V lead acid battery like a car, boat, motorcycle, ATV, lawn mower, RV, tractor, truck and more.

Can Boost Air jump start a car from the 12V plug?

No, the Boost Air does not have an XGC output to be able to do so.

Can Boost Air jump start a 6V vehicle?

No. Boost Air is only designed for 12V vehicles. Jump starting a 6V battery could become extremely dangerous.

Can Boost Air jump start a lithium battery?

No, do not attempt to use Boost Air to jump start a lithium battery. Lithium batteries are sensitive to how current is applied to the battery, jump starting a lithium battery could become extremely dangerous.

Can Boost Air jump start a motorcycle?

Yes, as long as the battery is a 12V Lead Acid battery.

Can Boost Air jump start a motorcycle using an SAE harness?

There isn't a direct Boost-to-SAE adapter since the SAE cable isn't rated for the output of the Boost Air. You can install the eyelet cable alongside the SAE cable you have on your battery, then plug the device directly into the GBC007 when jump-starting.

Can Boost Air charge my car's battery?

No. While Boost Air can jump start your car battery it is not a battery charger. If you need to charge your car battery we recommend using a NOCO charger for charging and maintaining 6V or 12V batteries lead acid, AGM or Lithium batteries.

What safety features does the Boost Air have?

The AX65 includes multiple safety features:



  • Over-Current Protection
  • Open-Circuit Protection
  • Over-Heating Protection
  • Over-Charge Protection
  • Spark-Proof Design
  • Reverse Polarity Protection



Learn more in the User Guide

Why does my AX65 keep stopping while inflating?

It is normal for the AX65 to repeatedly stop and resume airflow as it gets closer to the set pressure. This behavior is part of the Dynamic Dwell feature, which helps ensure that the device does not overinflate the connected object and allows for more accurate pressure readings.

Why does my Boost Air automatically shut-off?

The AX65 is built with an Automatic Shut-off feature for ease of use. The compressor will turn "OFF" when the desired pressure has been reached, or if the battery voltage drops below 10.0V.

Does the Automatic Shut-Off function in Manual Air Mode?

Automatic Shut-off will not occur in Manual Air Mode unless the maximum rated pressure of the product has been reached.

Learn more about Manual Air mode on Boost Air

What should I do if Automatic Shut-Off doesn't activate as expected?

If AX65's Automatic Shuttoff does not activate as expected, make sure the cable connection is tight and there are no leaks in the system, and refer to the product's User Guide. Contact support if the problem persists.

Are Boost Air motors brushed or brushless?

NOCO Boost Air motors are brushed.

What if my vehicle has a 2-battery configuration?

For vehicles with dual battery configurations, connect both the positive and negative clamps of Boost Air to the battery closest to the starter.



  • If your batteries are in parallel, you can use two Boost Air units to double the starting power if needed.
  • If your batteries are in series, you cannot use any 12V Boost. A 24V jump starter would be required.
Can I take Boost Air on an airplane?

Yes. Boost Air models are FAA-compliant and can be taken on a plane, however, they must be in your carry-on as lithium batteries are not permitted in checked luggage. All Boost Air models are under 100Wh which is the limit set by the FAA. For more information or current updates, please see the link below to the FAA guidelines. We also recommend contacting the airlines you are flying to see if they have additional restrictions.

Is Boost Air made in the USA?

AX65 is proudly designed in the USA and manufactured overseas to ensure our customers receive exceptional design and quality at the most affordable price.

Care Tips
Why does my device go slightly past the pressure I set?

This is to compensate for air loss while disconnecting, Boost Air will add slightly more air than it was set at. For example, you may see Boost Air end up at 37.0 PSI instead of the set pressure of 36.5 PSI to compensate for the .5 PSI that will escape while untwisting the air hose connection.

What is the recommended duty cycle to prevent overheating?

The recommended duty cycle for AX65 is 7 minutes at 30 PSI, followed by 53 minutes of rest.

What if Boost Air isn't detecting my car's battery?

The AX65 is designed to jump start 12-volt lead-acid batteries down to 3-volts. If your battery is below 3-volts, the Boost LED will be "OFF". This is an indication that the AX65 can not detect a battery. If you need to jump start a battery below 3-volts there is a Manual Override feature, which allows you to force "ON" the jump start function.

Learn how to use Manual Override mode on AX65

Should I charge Boost Air before using it?

Yes. Boost Air will arrive partially charged. Fully charge the unit before first using it to ensure optimal performance.

What is the optimal way to store Boost Air?

Please charge the unit before storing it to elongate its lifetime. NOCO Boost Air should not be stored below -4ºF (-20ºC), and not exceed 122ºF (50ºC) for any reason. Storing outside of these ranges can cause damage to multiple crucial components of the device. Store at 77ºF (25ºC) for optimal longevity. Do not store outdoors. Instead, store in a dry indoor location with at least 0.50 inch (12.7 mm) of space around the product to allow for adequate airflow. Wrap the hose and disconnect cables to protect them during storage.

What are the operating temperatures for Boost Air?

NOCO Boost Air can operate within the temperature range -4ºF to 122ºF (-20ºC to 50ºC). AX65 is equipped with thermal sensors that will prevent it from operating outside of this temperature range for your own safety.

What if the clamps touch?

Nothing, it is perfectly safe. Boost Air has built-in spark-proof sensors that prevent power from being delivered unless a battery is detected or the device is in Manual Override Mode.



When in Manual Override Mode: Do not allow the positive and negative battery clamps to touch or connect to each other, refer to the user guide for more information.

Can the clamps be connected to the battery backwards?

The REVERSE POLARITY error LED will illuminate, but it is perfectly safe and there won't be any sparks. With Reverse Polarity Protection, Boost Air will not deliver power unless connected to the battery correctly.



When in Manual Override Mode: Do not allow the positive and negative battery clamps to touch or connect to each other, refer to the user guide for more information.

Can I recharge Boost Air in extreme heat?

No. Boost Air should be recharged in temperatures between 32ºF to 104ºF (0ºC to 40ºC). Remove from heat source and allow the battery to cool down before recharging.

Can Boost Air be left in direct sunlight in a car?

No. Remove Boost Air from direct sunlight. The ambient temperature in a car can increase to 50°C (122°F) within just 10 minutes.

Is it possible to accidentally overcharge Boost Air?

No, our product is equipped with advanced circuitry designed to maintain the battery in a safe state, provided the unit is not tampered with and is charged using a USB-C compliant charger. Do not attempt to modify, service, or tamper with the charging circuitry or bypass the Battery Management System (BMS). Any unauthorized actions will immediately void the product warranty and absolve NOCO of any liability for any resulting harm, damage, or injury, including risks of fire, electrical shock, or property damage.

Can the battery inside Boost Air be replaced?

The built-in lithium-ion battery is not user-replaceable and is designed to remain sealed within the unit. Do not attempt to replace, modify, or tamper with the battery under any circumstances. Handling a damaged or leaking lithium-ion battery is extremely hazardous and may result in serious injury, fire, or property damage. For disposal or assistance with a faulty unit, contact NOCO or refer to the contact information provided on the back of the unit. Any unauthorized attempts to service, alter, or replace the battery will immediately void the product warranty and release NOCO from any liability for resulting harm, damage, or injury.

How long is the hose, and what material is it made of?

The hose is 3 feet (0.91 m) long and is made of black EDPM with polyester fiber braiding for durability.

My Boost Air has reached its End of Life. Where can I safely dispose of it?

We always recommend checking in with your local laws, and regulations for proper disposal of your Lithium battery products, like the Boost Air. If you live in the USA or Canada, you can follow this link to see where to drop off the Lithium product for recycling in your area: https://www.call2recycle.org/locator/

Accessory Compatibility
Does Boost Air come with a carrying case?

Unfortunately at this time we do not manufacture cases for the Boost Air models. All Boost Air models come with a microfiber bag for storage.

The clamps are not long enough? Does NOCO sell an extension?

 If your positive and negative posts are too far away from each other, you can also connect to a negative ground on the vehicle chassis rather than the negative post.
Unfortunately, there are no extension cables available for the clamps on Boost Air products as extending the cables would reduce the starting power they produce.

I lost my charging cable. Where can I get a replacement?

Boost Air can be charged using any standard USBC to USBC cable like the ones many smartphones and tablets use. NOCO also offers USBC charging cables, go to XGrid Products to purchase one.

LEDs
AX65
Reverse Polarity
Unit is connected to the battery in reverse. Reverse the connections.
Cold LED
Illuminates solid or flashes Blue when internal temperature is too low.
Hot LED
Illuminates solid or flashes Red when internal temperature is too high.
Error LED
Blinks “on” and “off” in various sequences (from 1 to 6 blinks) to convey error conditions.

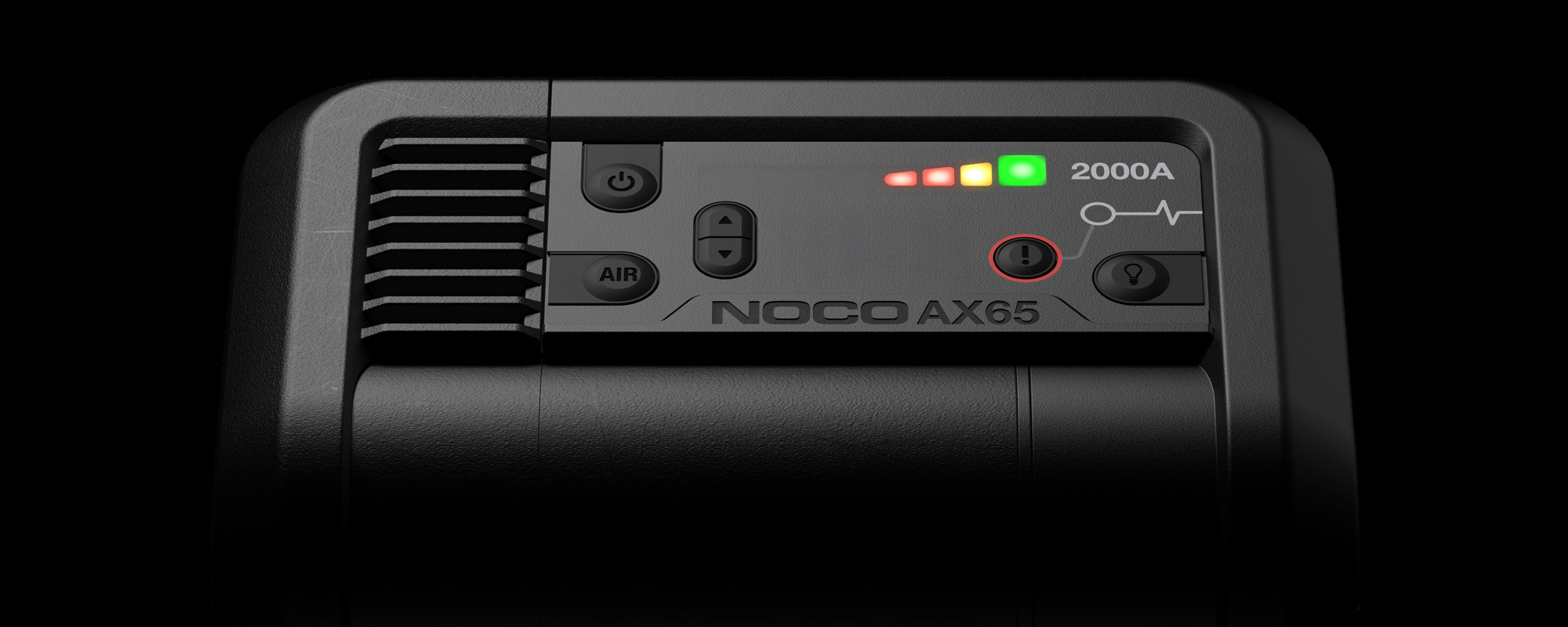

Charge LEDs
Indicates the charge level of the internal battery.

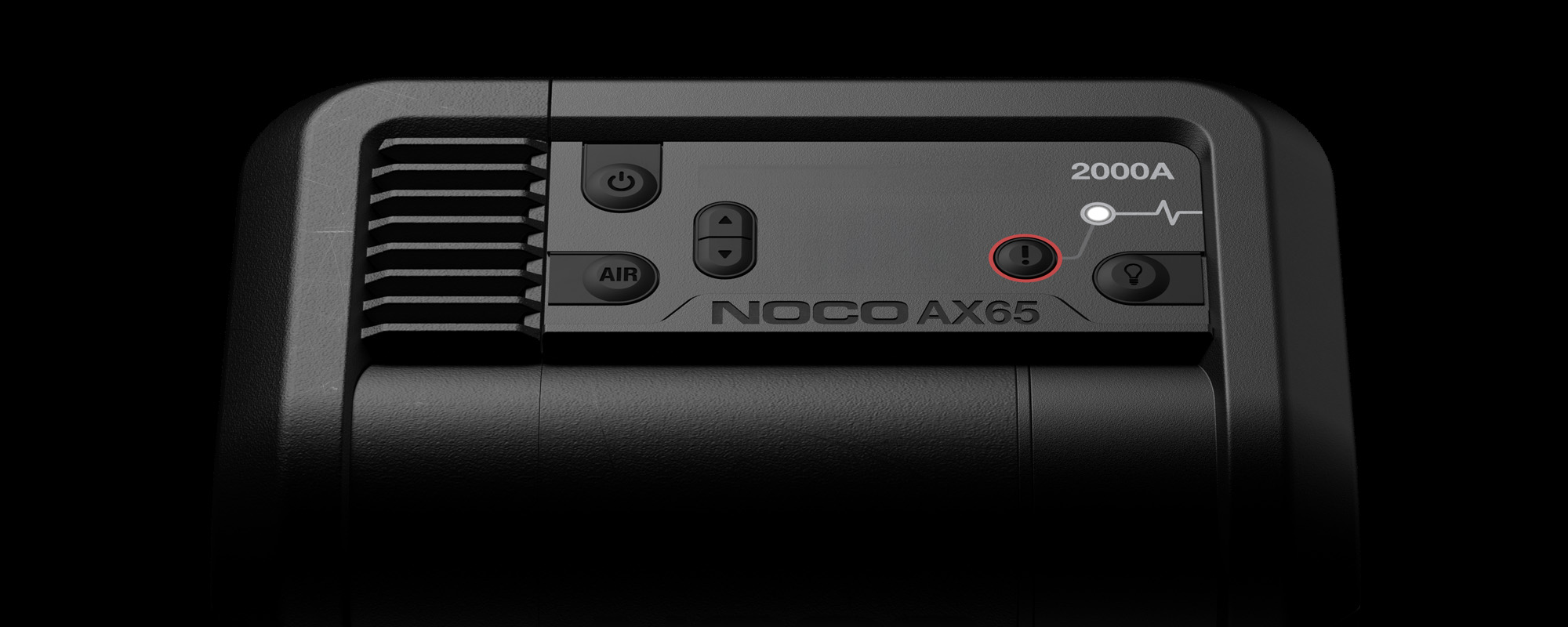

Boost LED
Illuminates White when Boost is active. The LED flashes white when Manual Override feature is active.
Intuitive Pressure Gauge.
AX65
Actual Pressure
When the “AIR” button is pressed, the compressor will begin inflating, the “SET” LED will turn off and the actual pressure will be displayed.

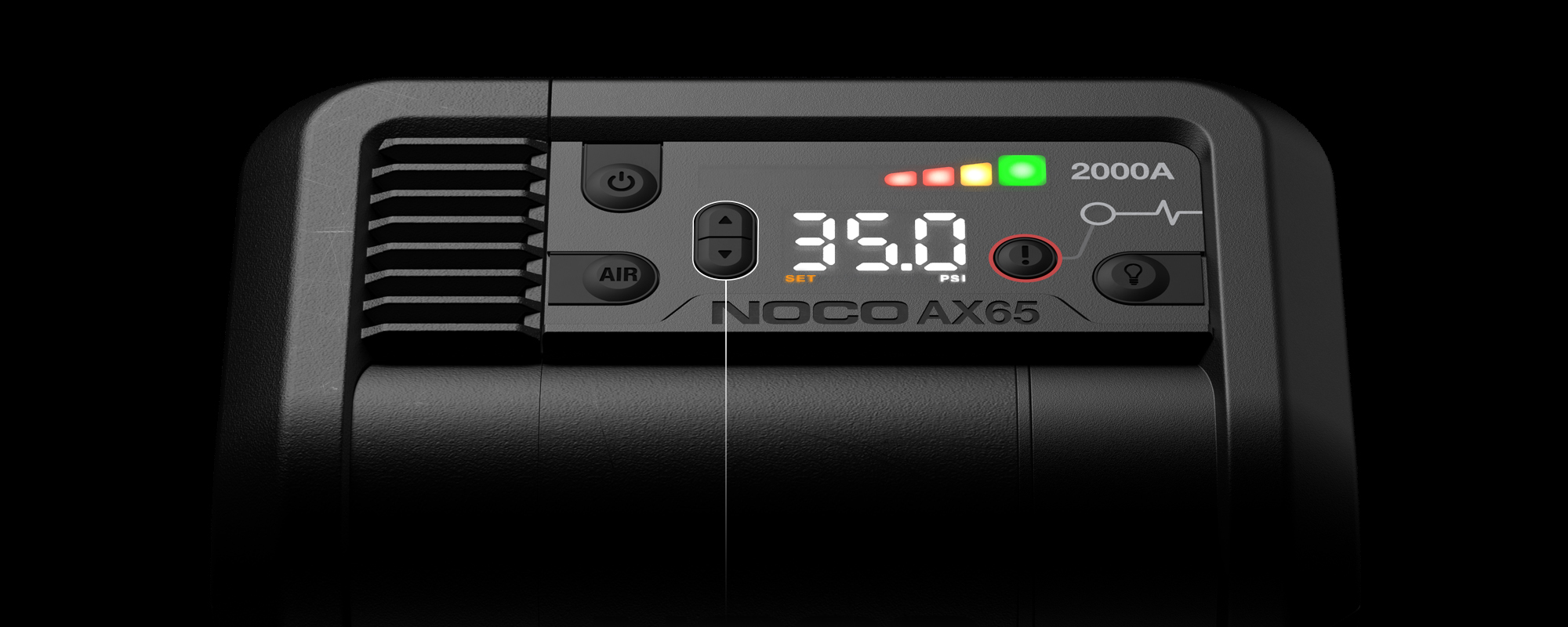

Set Pressure
When the display is in pressure set mode the “SET” LED will illuminate. Use the arrow buttons to set the desired pressure.

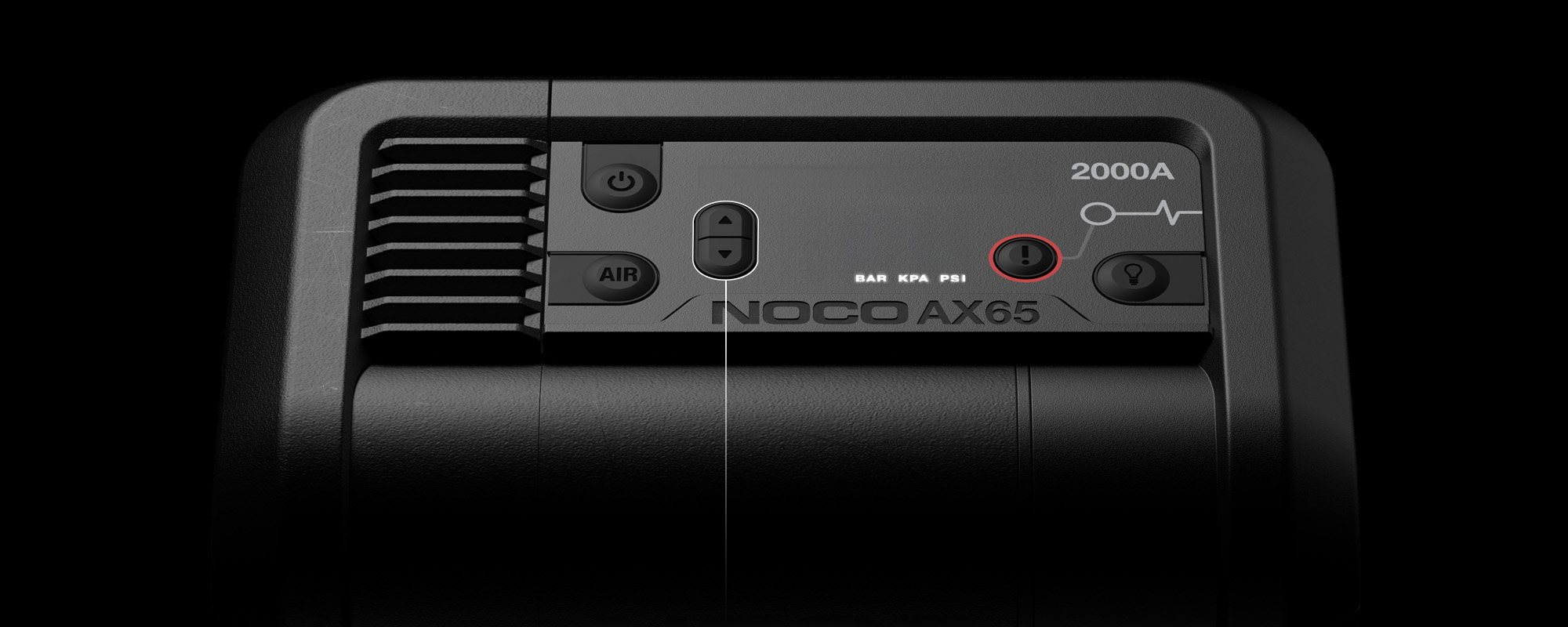

Change Units
To change units of pressure, hold both arrow buttons simultaneously for 3 seconds, use either arrow button to cycle through units.
Auto-Shutoff
Auto-shutoff works when pressure is above 15 PSI. Simply set the pressure and start inflating. AX65 will shut off when the desired pressure is reached.

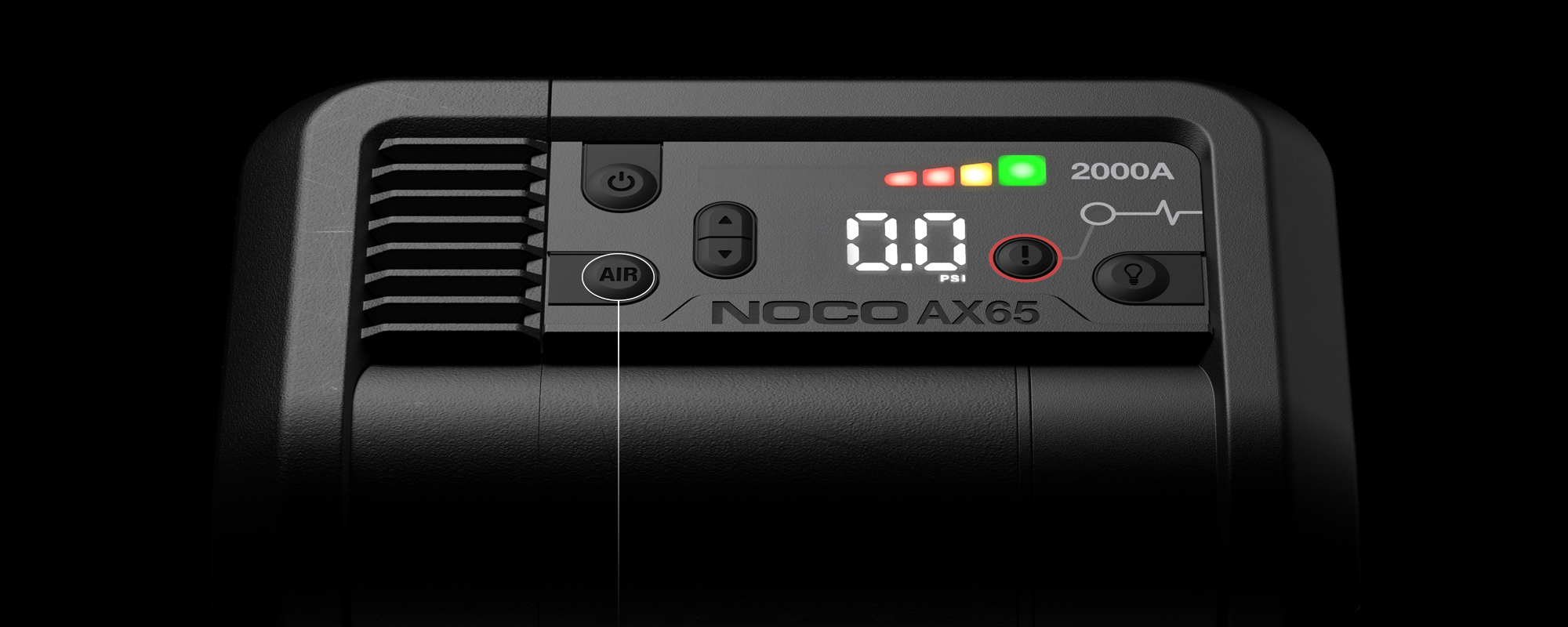

Manual Air Mode
When pressure is below 15 PSI, use manual mode. Set pressure to 0.0 and press the "AIR" button. AX65 will run until the "AIR" button is pressed again.

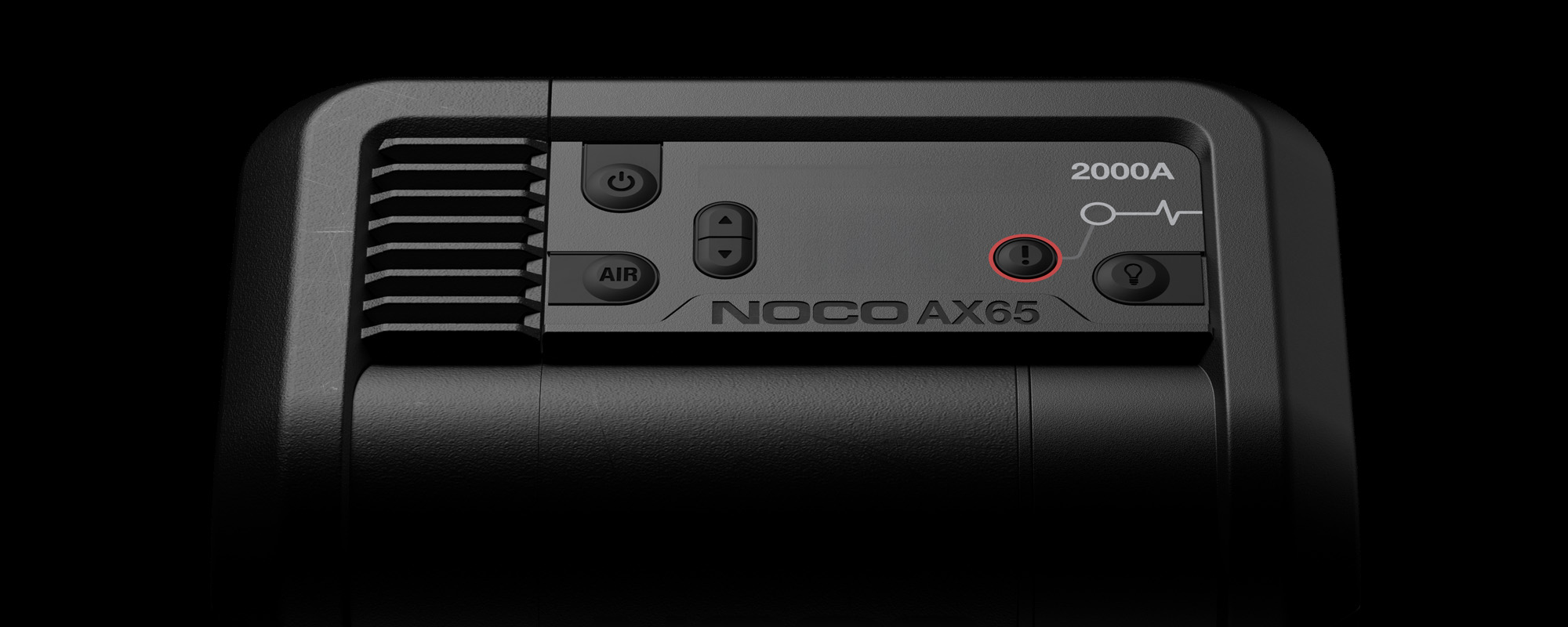

Buttons
AX65

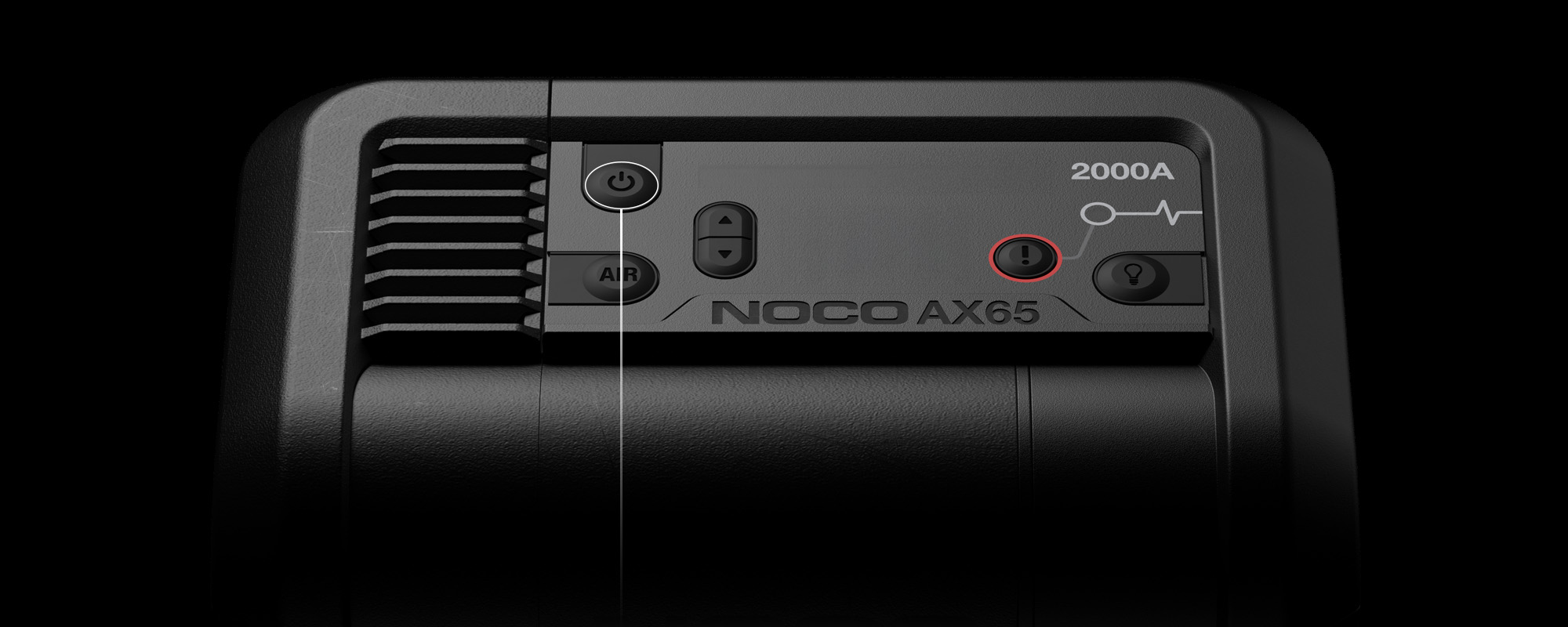

Power Button
Push to turn AX65 “ON” & “OFF” or restart Boost after 60-Second Timeout.
Arrow Buttons
Hold both Arrow Buttons to begin changing the pressure units. When LED Display is on, use the Arrow Buttons to change the set pressure.
Air Button
Push to initiate Air Mode to start inflating.
Manual Override
To enable, push and hold for three (3) seconds. WARNING: Disables safety protection and manually forces Boost "On". Only for use when a battery is too low to be detected.

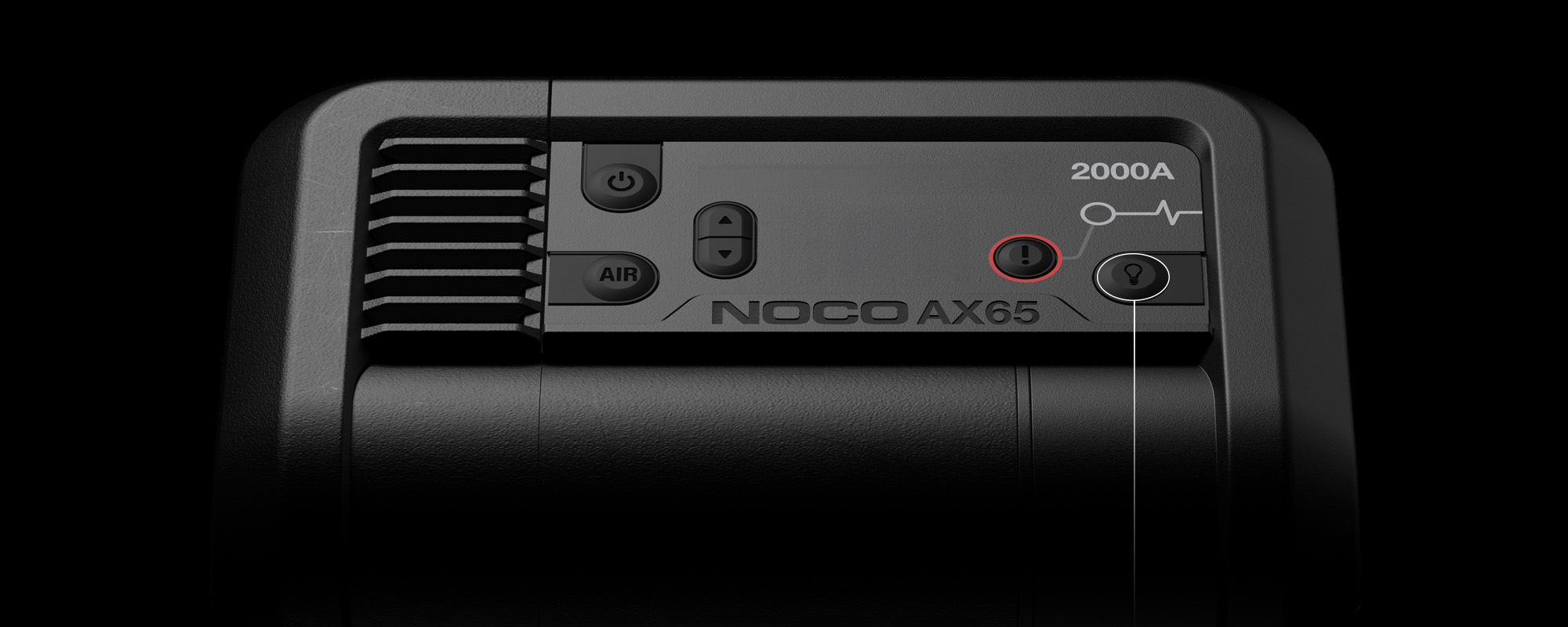

Light Mode Button
Toggles the ultra-bright LED light through 6 light modes: 100% > 50% > 10% > SOS > Blink > Off.
Boost Air
TROUBLESHOOTING.
ERROR
REASON / SOLUTION
Product does not turn "ON"
Check battery voltage, charge Product.
Over-Temperature
Turn the Product "OFF" and place it in a well ventilated area, wait for Product to cool before powering "ON" again.
Under-Temperature
Turn the Product "OFF" and place it in an area within the recommended operating temperature, wait for Product to warm up before powering "ON" again.
Solid Red [ERR CLR]
Reverse polarity detected. / Reverse the battery connections.
Single (1) Flash: [ERR SRT]
Short circuit detected on battery clamps. / Remove all loads, reconnect clamps to battery.
Double (2) Flash: [ERR HIV]
High voltage detected at clamps (the AX65 is connected to a voltage system greater than 12V, such as 24V).
Quadruple (4) Flash: [ERR CRG]
Charge timeout error (i.e. the AX65 has been in bulk charge for too long).
Sextuple (6) Flash: [ERR BCC]
Back-Charge detected into the AX65 through the clamps while in Boost Mode (i.e. the AX65 is in Manual Override and then connected to a system greater than 12V, such as 24V).
Hot LED: Solid
Product is fully operational, but approaching upper temperature limit. / Allow the Product to cool.
Hot LED: Flashing [ERR HOT]
Product is too hot to jump start, only the flashlight is available in this state. / Allow the Product to cool.
Cold LED: Solid
Product is fully operational, but approaching lower temperature limit. / Allow the Product to warm up.
Cold LED: Flashing [ERR CLD]
Product is too cold to jump start, only the flashlight is available in this state / Allow the Product to warm up.
Learn more about Manual Override

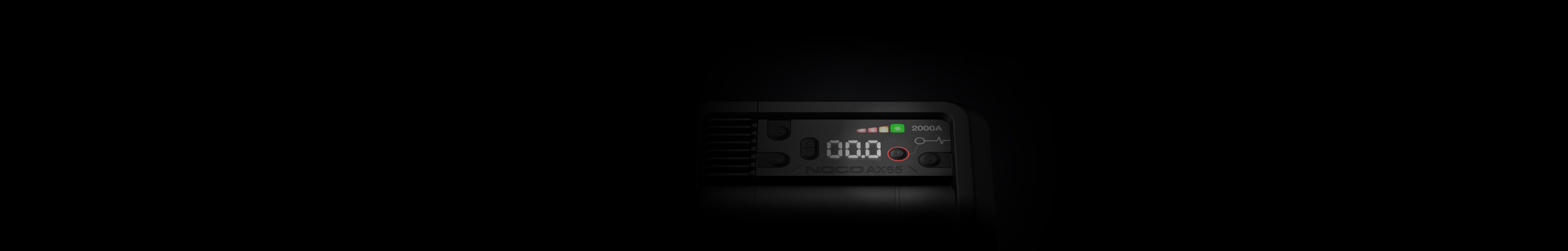

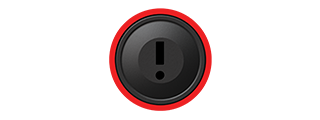

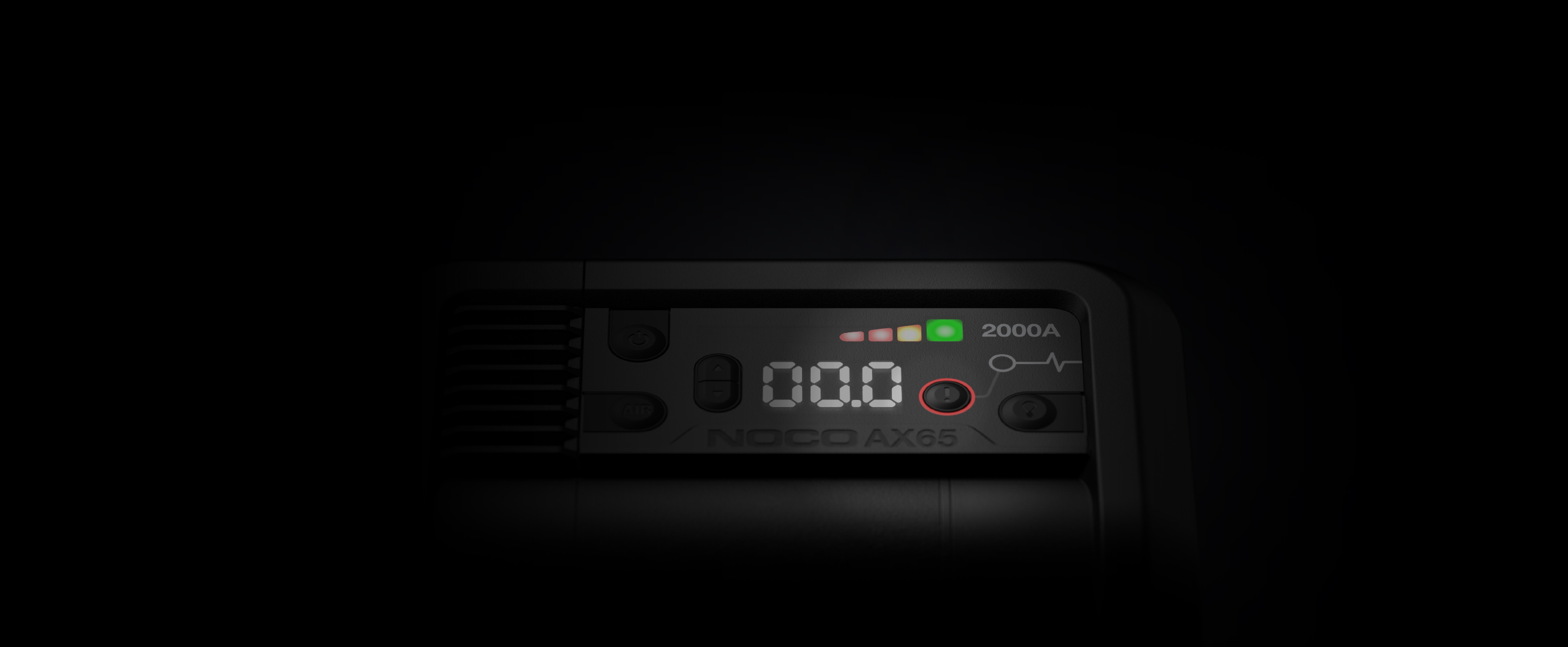

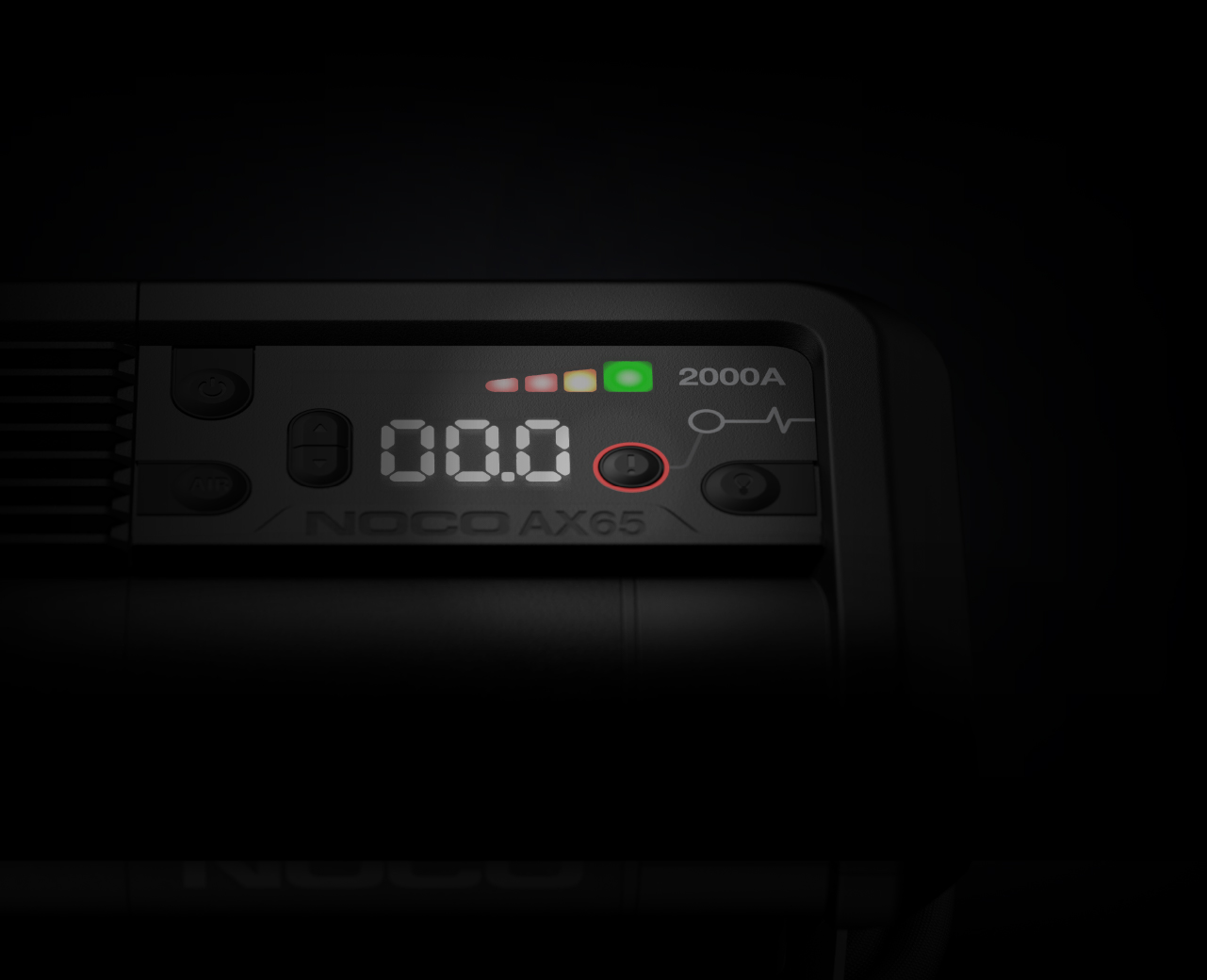

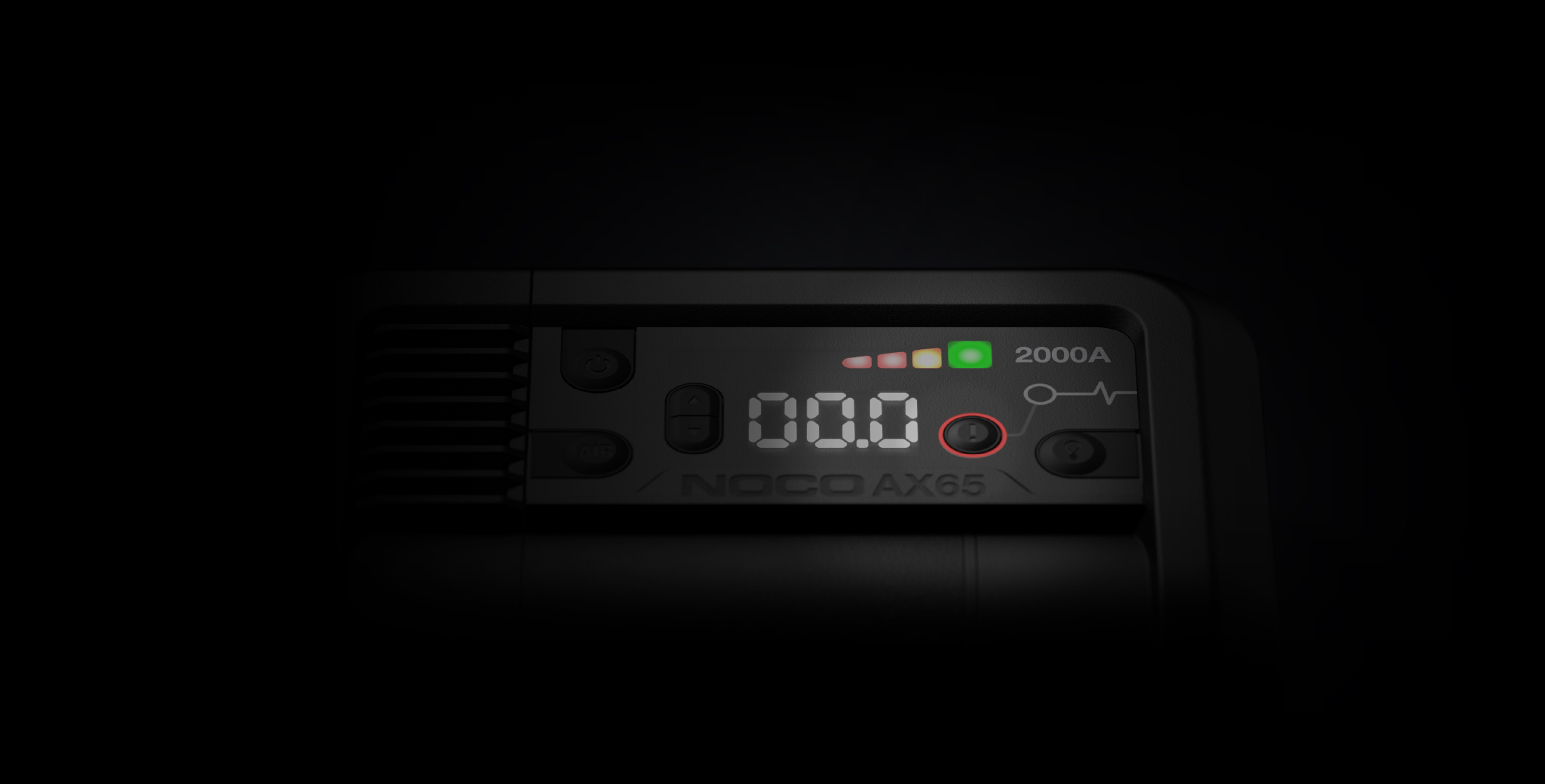

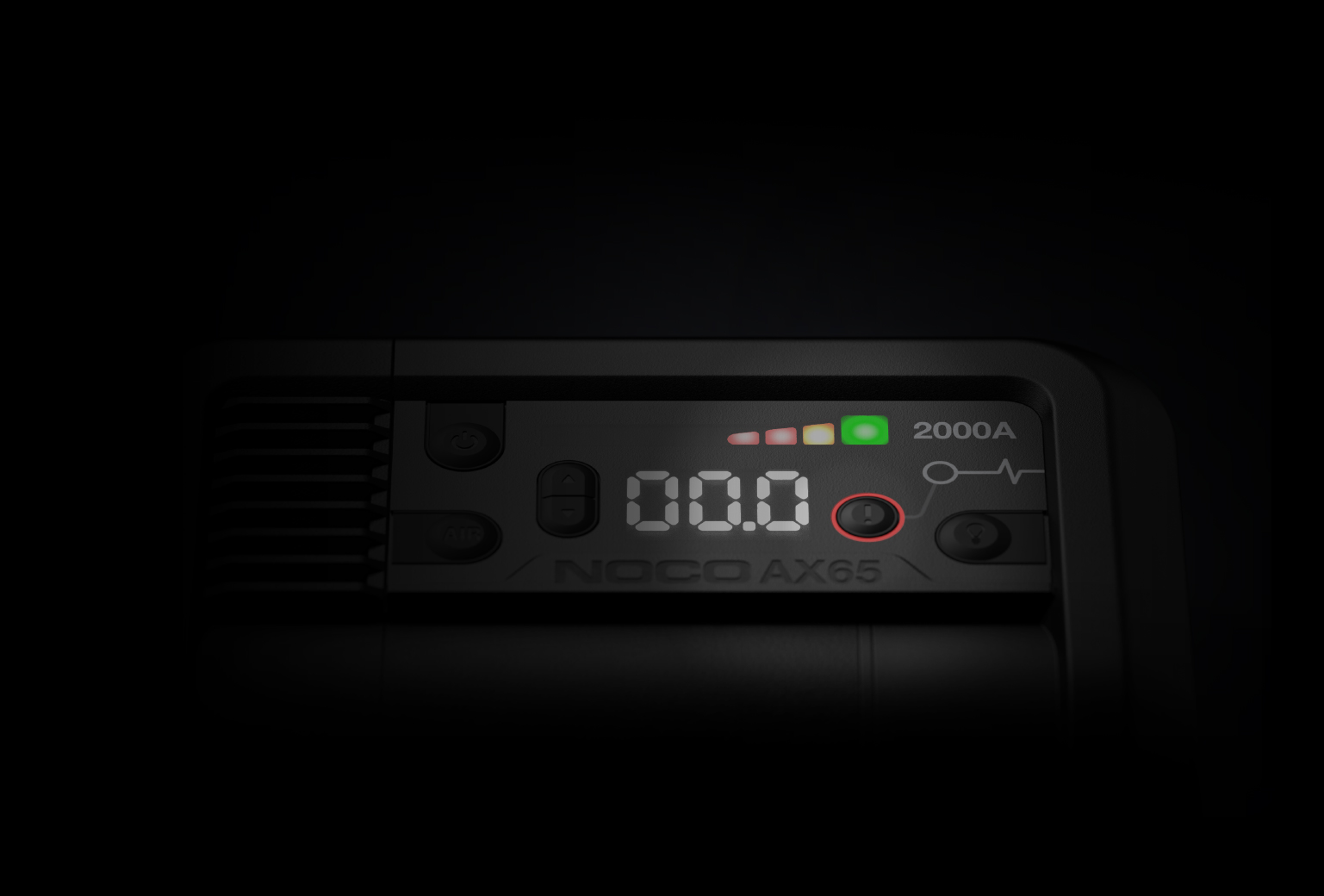

MANUAL OVERRIDE
AX65
PUSH AND HOLD FOR 3 SECONDS.
WARNING: Disables safety protection and manually forces Boost Air “On”. Only for use when a battery voltage is too low to be detected.
AX65
1 Year warranty.
All NOCO Boost Air units come with a limited 1 Year warranty. Register your product after purchasing to qualify for the applicable warranty.
REGISTER PRODUCT
VIEW WARRANTY
Connect and Charge.
COMPATIBLE ACCESSORIES.
The following accessories are compatible with AX65.

GBC105

GBC105

$39.95

Add to Cart

GBC003

GBC003

MSRP: $32.95 You save 24%

$24.95

Add to Cart

GBC007

GBC007

MSRP: $32.95 You save 24%

$24.95

Add to Cart

U65

U65

MSRP: $89.95 You save 22%

$69.95

Add to Cart
